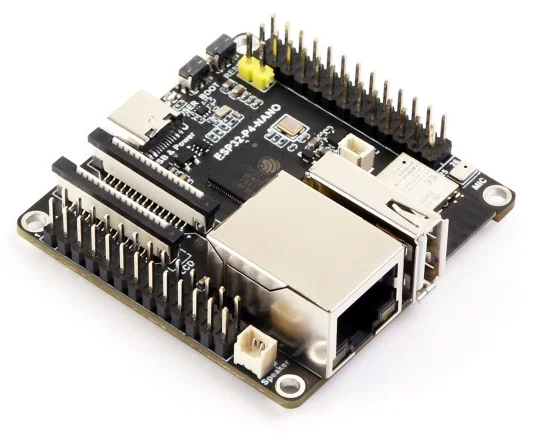

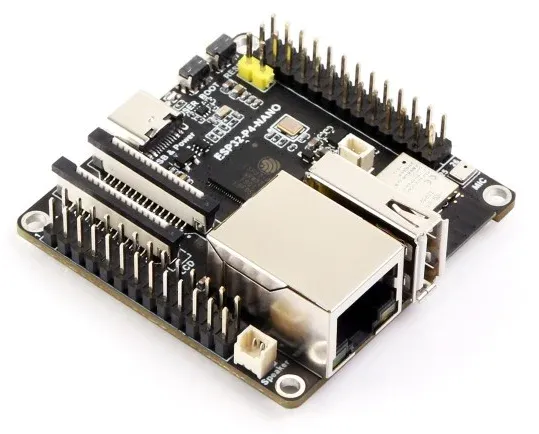

Waveshare ESP32-P4-Nano
Model reference: ESP32-P4-Nano
Manufacturer: Waveshare
Product Description
The Waveshare ESP32-P4-Nano is a development board based on the ESP32-P4 chip featuring dual-core RISC-V processors with advanced image and video processing capabilities. The board includes an onboard ESP32-C6-MINI module for Wi-Fi 6 and Bluetooth 5/BLE connectivity, making it ideal for IoT applications requiring wireless communication alongside high-performance computing.
Key Features
- ESP32-P4 dual-core RISC-V processors
- 32MB PSRAM (in chip package)
- 16MB NOR Flash
- ESP32-C6-MINI coprocessor for Wi-Fi 6 and Bluetooth 5/BLE
- MIPI 2-lane DSI display interface
- MIPI 2-lane CSI camera interface with ISP
- 100M Ethernet (IP101 PHY)
- USB 2.0 OTG High-Speed
- SDIO 3.0 TF card slot
- 28 programmable GPIOs
- Onboard microphone
- Speaker header (8Ω 2W)
- RTC battery support
- USB Type-C connector
GPIO Pinout
ESP32 Hosted (ESP32-C6 Coprocessor)
The board uses the ESP32-C6-MINI module as a coprocessor for Wi-Fi and Bluetooth connectivity via SDIO:
| Function | GPIO |
|---|---|
| Reset | GPIO54 |
| CMD | GPIO19 |
| CLK | GPIO18 |
| D0 | GPIO14 |
| D1 | GPIO15 |
| D2 | GPIO16 |
| D3 | GPIO17 |
Ethernet (IP101 PHY)
| Function | GPIO |
|---|---|
| MDC | GPIO31 |
| MDIO | GPIO52 |
| Power | GPIO51 |
| CLK | GPIO50 |
Basic Configuration
Minimum configuration required for the Waveshare ESP32-P4-Nano:
esphome:
name: "esp32-p4-nano"
esp32:
board: esp32-p4-evboard
flash_size: 16MB
framework:
type: esp-idf
logger:
hardware_uart: UART0
api:
ota:
platform: esphome
ESP32 Hosted Configuration
ESP32 Hosted ESP32-C6 coprocessor configuration:
esp32_hosted:
active_high: true
variant: ESP32C6
reset_pin: GPIO54
cmd_pin: GPIO19
clk_pin: GPIO18
d0_pin: GPIO14
d1_pin: GPIO15
d2_pin: GPIO16
d3_pin: GPIO17
Wi-Fi Configuration
The ESP32-C6 coprocessor enables Wi-Fi functionality:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
Bluetooth Proxy Configuration
The ESP32-C6 coprocessor enables Bluetooth proxy functionality:
esp32_ble_tracker:
scan_parameters:
interval: 1100ms
window: 1100ms
active: true
bluetooth_proxy:
active: true
connection_slots: 3
Ethernet Configuration
Configuration to use the onboard 100M Ethernet with IP101 PHY:
ethernet:
type: IP101
mdc_pin: GPIO31
mdio_pin: GPIO52
power_pin: GPIO51
clk:
mode: CLK_EXT_IN
pin: GPIO50
phy_addr: 1
Coprocessor Firmware Update
The ESP32-C6 coprocessor firmware can be updated over-the-air using the esp32_hosted update platform:
update:
- platform: esp32_hosted
name: "C6 Coprocessor Update"
path: /path/to/network_adapter.bin
sha256: your_sha256_hash_here
The firmware binary is embedded into the ESP32-P4's flash at compile time and can be deployed to the coprocessor on demand. The component automatically detects the current firmware version and compares it to the embedded version. If they differ, an update becomes available in Home Assistant.
