BLE iTag Button
BLE iTag Button
Device Type: sensorElectrical Standard: global

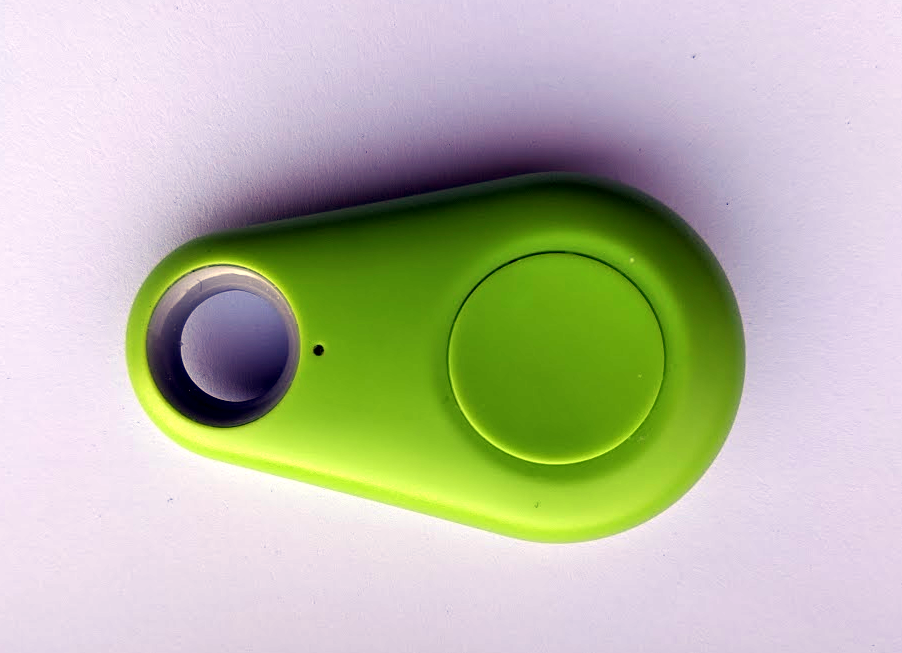

This example shows how to use a cheap BLE keyring tag to trigger arbitrary events. An ESP32 is used, which provides a BLE peripheral.
These tags can be had for a couple of dollars each and run for several months on a coin cell. Using the BLE features of ESPHome, you can use these as small and cheap remotes to control any automation.
Use the configuration block below for a basic setup which will provide a binary_sensor that is momentarily turned on when the button is pressed.
You will need to find the MAC address of your tag. See the documentation
ble_client for how to
find this out. You may also wish to change the name and id fields where
appropriate to suit your device(s).
Note that a maximum of three devices are supported due to limitations in the ESP32\'s BLE stack.
esp32_ble_tracker:ble_client:# Replace with the MAC address of your device.- mac_address: FF:FF:20:00:0F:15id: itag_blackbinary_sensor:- platform: templateid: black_buttonname: "Black iTag Button"filters:delayed_off: 200mssensor:# This entry registers and awaits notifications for the# characteristic that signals button presses. Each time# a notification is received, the corresponding binary_sensor# is briefly toggled.- platform: ble_clienttype: characteristicble_client_id: itag_blackname: "Black iTag btn"service_uuid: 'ffe0'characteristic_uuid: 'ffe1'notify: trueupdate_interval: neveron_notify:then:- binary_sensor.template.publish:id: black_buttonstate: ON- binary_sensor.template.publish:id: black_buttonstate: OFF# This entry queries the battery level. Some tags may not# support this characteristic, you will see 'Unknown' in the# HA frontend.- platform: ble_clienttype: characteristicble_client_id: itag_blackname: "Black iTag Battery"service_uuid: '180f'characteristic_uuid: '2a19'icon: 'mdi:battery'unit_of_measurement: '%'# This entry queries polls the RSSI when the tag is connected.- platform: ble_clienttype: rssible_client_id: itag_blackname: "Black iTag RSSI"
The first thing enabled is the
esp32_ble_tracker component. This sets
up the BLE stack on the device and listens for available devices.
ble_client component will listen to devices discovered by
the tracker, and establish a connection to the given device when it is
binary_sensor provides a template sensor which will export to the
HA frontend the sensor that\'s switched by the BLE tag\'s button.
The first entry in the
sensor component is used to configure the
specific Service and Characteristic UUIDs for an iTag\'s button. It also
enables BLE notifications and sets up an automation to toggle the
binary_sensor when a notification is received from the tag. Automatic
updates are disabled, there is no point querying the tag for the device
state, as we will be immediately notified when the button is pressed.
sensor entry listens for a well-known Service and
Chacteristic that is used by many BLE devices to give battery level
information. This sensor will be exposed in the HA frontend to determine
the state of the tag\'s battery. Note that many tags will not provide
this service, so you will not see a valid value. If not, you can remove
this from the config.
