Tuya RGBW LED controller

Tuya RGBW LED controller

Device Type: light
Electrical Standard: global
Board: esp8266

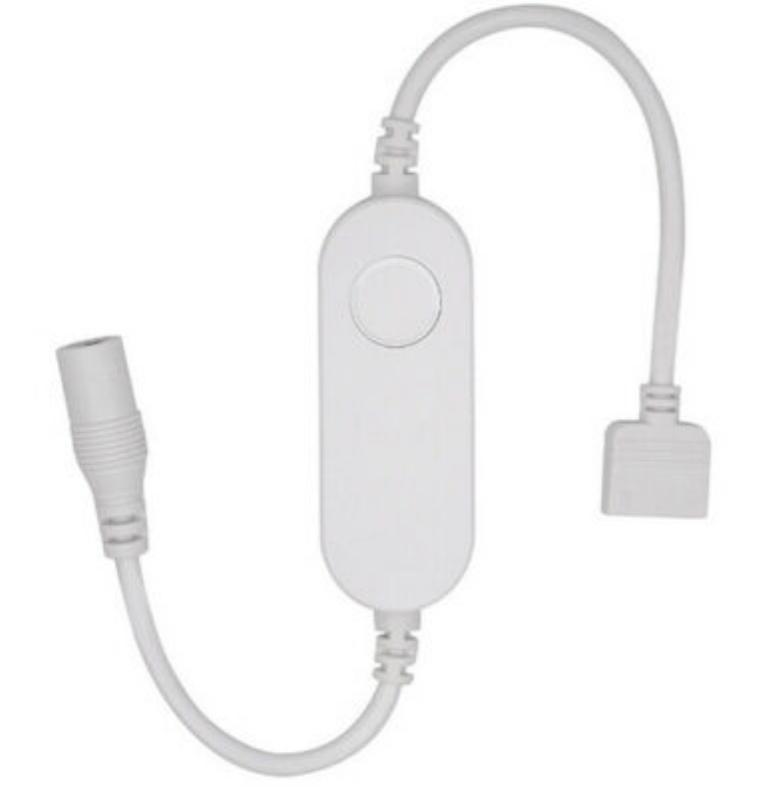

The Tuya RGBW controller is inexpensive, available on ebay, and can be OTA flashed using tuya-convert, after which it can be OTA flashed via the ESPHome web interface (NOTE: a port must be explicitly set if using a Home Assistant add-on for this, and you need to connect directly to that port instead of using the proxied port via Home Assistant).


The configuration below shows an example that can be compiled to a binary firmware file that works correctly for this device, and that cycles through three different brightnesses and an off state based on the number of button presses. The device can also be controlled via Home Assistant, of course, setting specific RGBW combinations and brightness levels.

# Example configuration entry
output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO5
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_white
    pin: GPIO15


globals:
  - id: action_state
    type: int
    restore_value: no
    initial_value: '0'


binary_sensor:
  - platform: gpio
    pin:   GPIO13
    name: "RGBW Controller Button"
    filters:
      - invert:
      - delayed_on_off: 20ms
    on_press:
      then:
        - lambda: id(action_state) = (id(action_state) + 1) % 4;
        - if:
            condition:
              lambda: 'return id(action_state) == 0;'
            then:
              - light.turn_off:  rgbw_lightstrip1
        - if:
            condition:
              lambda: 'return id(action_state) == 1;'
            then:
              - light.turn_on:
                  id: rgbw_lightstrip1
                  brightness: 60%
        - if:
            condition:
              lambda: 'return id(action_state) == 2;'
            then:
              - light.turn_on:
                  id: rgbw_lightstrip1
                  brightness: 40%
        - if:
            condition:
              lambda: 'return id(action_state) == 3;'
            then:
              - light.turn_on:
                  id: rgbw_lightstrip1
                  brightness: 15%
light:
  - platform: rgbw
    name: "rgbw_strip_01"
    id: rgbw_lightstrip1
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white


    # Ensure the light turns on by default if the physical switch is actuated.
    restore_mode: ALWAYS_OFF
