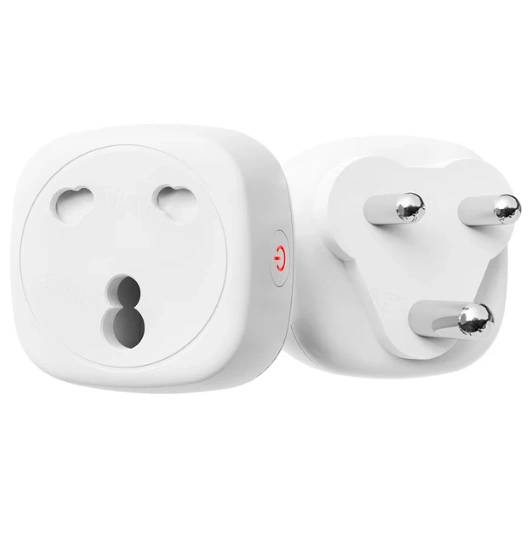

SmartPad EM32 16A Smart Plug with Energy Metering
SmartPad EM32 16A Smart Plug with Energy Metering
Device Type: plugElectrical Standard: globalBoard: esp32Difficulty: Comes with ESPhome, 1/5
Maker: https://smartpad.co.za/ Product page: https://store.smartpad.co.za/index.php/product/tasmota-16a-smart-plugs-with-energy-monitoring/
Available pre-flashed with ESPHome or Tasmota.
GPIO Pinout
Pin | Function |
---|---|
GPIO1 | Status LED |
GPIO20 | Button |
GPIO4 | Relay |
GPIO7 | BL0937 CF |
GPIO3 | BL0937 CF1 |
GPIO5 | BL0937 SEL |
GPIO6 | Relay Led |
Basic Configuration
The Latest configuration can be found on Smartpad South Africas GitHub repo.
