Smart Powermeter

Smart Powermeter

Made for ESPHome Logo

Device Type: sensor
Electrical Standard: global
Board: esp32
Difficulty: Soldering required, 4/5

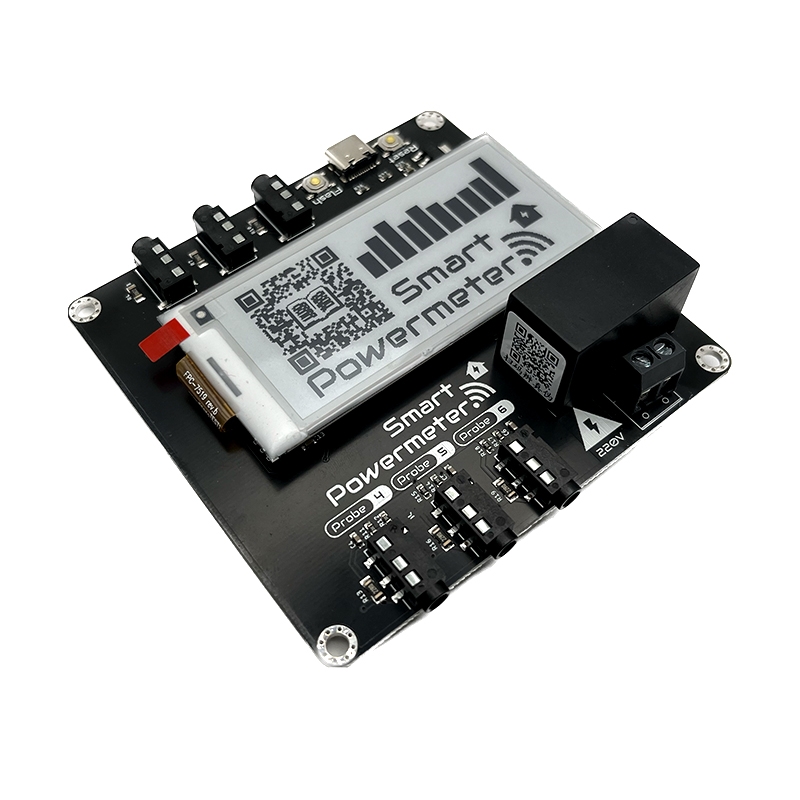

Smart Powermeter

Pinout

ESP32-S2CT-Clampse-PaperComponent
GPIO 01Probe 1
GPIO 02Probe 2
GPIO 03Probe 3
GPIO 04Probe 4
GPIO 05Probe 5
GPIO 06Probe 6
GPIO 08LED
GPIO 10CS
GPIO 11MOSI
GPIO 12CLK
GPIO 13DC/MISO
GPIO 14BUSY
GPIO 15RST
GPIO 33SDA
GPIO 34SCL

Basic Configuration

substitutions:
device_name: "smart-powermeter"
friendly_name: "Smart Powermeter"
project_name: "smart.powermeter"
project_version: "2.0"
ap_ssid: "Smart-Powermeter"
ap_pwd: "smartpowermeter"
esphome:
name: "${device_name}"
name_add_mac_suffix: true
project:
name: "${project_name}"
version: "${project_version}"
esp32:
board: esp32-s2-saola-1
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
# Enable Over The Air updates
ota:
#Public location of this yaml file
dashboard_import:
package_import_url: github://JGAguado/Smart_Powermeter/docs/source/files/configuration.yaml@V2R1
import_full_config: true
# Enable fallback hotspot (captive portal) in case wifi connection fails
captive_portal:
improv_serial:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: "${ap_ssid}"
password: "${ap_pwd}"
sensor:
- platform: adc
pin: GPIO1
id: Input_1
attenuation: 12db
update_interval: 1s
- platform: adc
pin: GPIO2
id: Input_2
attenuation: 12db
update_interval: 1s
- platform: adc
pin: GPIO3
id: Input_3
attenuation: 12db
update_interval: 1s
- platform: adc
pin: GPIO4
id: Input_4
attenuation: 12db
update_interval: 1s
- platform: adc
pin: GPIO5
id: Input_5
attenuation: 12db
update_interval: 1s
- platform: adc
pin: GPIO6
id: Input_6
attenuation: 12db
update_interval: 1s
- platform: ct_clamp
sensor: Input_1
id: Probe_1
name: "Probe 1"
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: ct_clamp
sensor: Input_2
name: "Probe 2"
id: Probe_2
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: ct_clamp
sensor: Input_3
name: "Probe 3"
id: Probe_3
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: ct_clamp
sensor: Input_4
name: "Probe 4"
id: Probe_4
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: ct_clamp
sensor: Input_5
name: "Probe 5"
id: Probe_5
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: ct_clamp
sensor: Input_6
name: "Probe 6"
id: Probe_6
sample_duration: 200ms
update_interval: 1s
filters:
- calibrate_linear:
- 0 -> 0
- 0.022 -> 0.66
- platform: total_daily_energy
name: "Total Daily Power"
power_id: current_power
id: daily_power
- platform: template
id: current_power
name: "Measured Power"
lambda: return (id(Probe_1).state + id(Probe_2).state + id(Probe_3).state) * 230.0 / 1000; #Power = Current * Voltage
unit_of_measurement: 'kW'
update_interval: 5s
spi:
clk_pin: GPIO12
mosi_pin: GPIO11 # Works on the e-paper
display:
- platform: waveshare_epaper
cs_pin: GPIO10
dc_pin: GPIO13
busy_pin: GPIO14
reset_pin: GPIO15
model: 2.90inv2
rotation: 270
update_interval: 1min
full_update_every: 1
