Martin Jerry US-FC-01 Smart Ceiling Fan Controller

Martin Jerry US-FC-01 Smart Ceiling Fan Controller

Device Type: switch
Electrical Standard: us
Board: esp8266

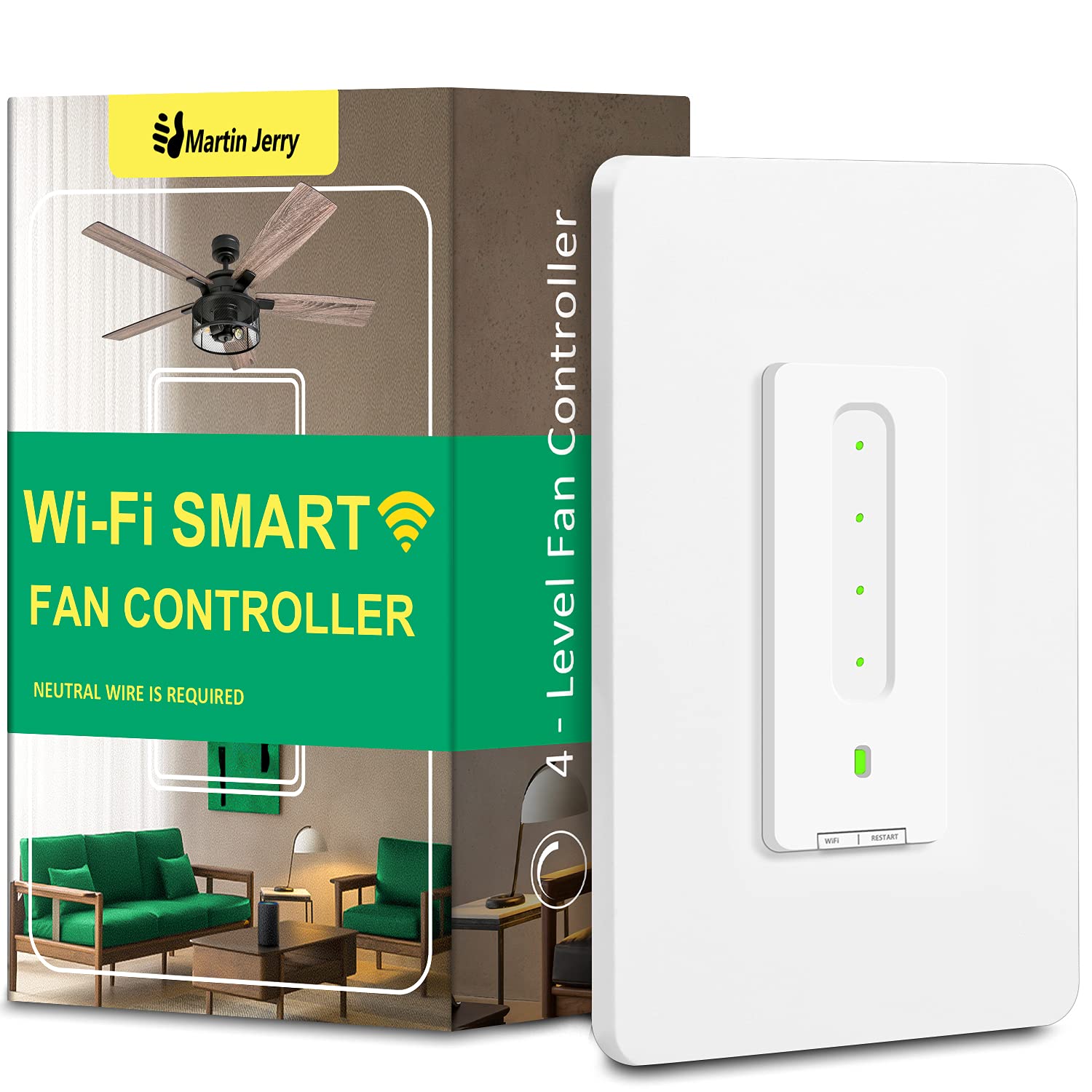

Martin Jerry US-FC-01 Switch image

Amazon Link

Notes

The Martin Jerry US-FC-01 is a 4 speed fan control switch. It comes pre-flashed with Tasmota firmware and can easily be converted to ESPHome by uploading ESPHome firmware to the switch via Tasmota's web UI.

GPIO Pinout

PinFunction
GPIO1Tuya Tx
GPIO3Tuya Rx

Basic Configuration

esphome:
  name: mj-fc01-fan


esp8266:
  board: esp01_1m


# Enable logging
logger:
  baud_rate: 0


# Enable Home Assistant API
api:
  encryption:
    key: <key>


ota:
  password: <password>


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "mj-fc01-fan Fallback Hotspot"
    password: <password>


captive_portal:


uart:
  rx_pin: GPIO3
  tx_pin: GPIO1
  baud_rate: 9600


tuya:


fan:
  - platform: "tuya"
    name: MJ FC01 Fan Speed
    switch_datapoint: 1
    speed_datapoint: 3
    speed_count: 4
