MAKERFABS-8CH-RELAY

Product

Product description​

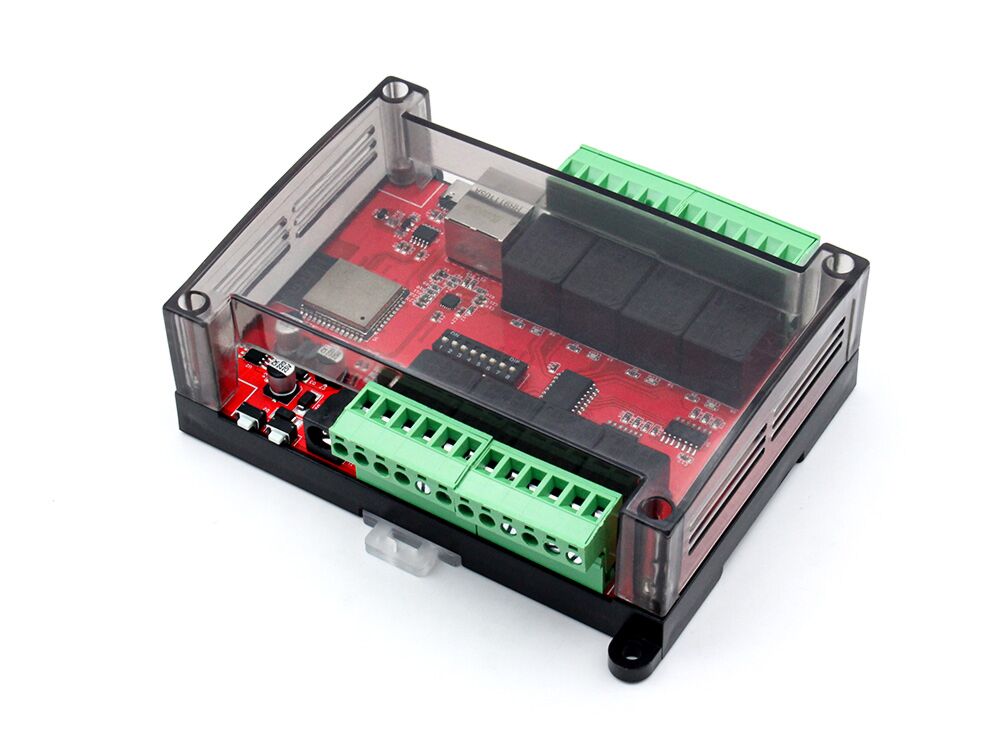

This is a 8-relay board with an ESP32-S3 (N8). Supports 10A current with AC 220V. Wifi/Etherent support. 2 kinds of connector for each wire connection. 12V Power supply. PLC Case for easy installation.

It can bought from: https://www.makerfabs.com/8-channel-relay-for-home-assistant.html

Basic Config​

# based on https://github.com/Makerfabs/Home-Assistant-Relay-8-Channel/blob/main/relay8.yaml

esphome:
  name: ha-realy-8-channel
  friendly_name: HA-Realy-8-Channel

esp32:
  board: esp32dev
  framework:
    type: esp-idf
    # version: 5.4.2

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "YOUR_KEY"

ota:
  - platform: esphome
    password: "YOUR_PASSWORD"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

captive_portal:

# ethernet:
#   type: LAN8720
#   mdc_pin: 23
#   mdio_pin: 18
#   clk_mode: GPIO17_OUT
#   phy_addr: 0

web_server:
  port: 80

switch:
  - platform: gpio
    pin: 32
    name: "Relay #1"
    inverted: true

  - platform: gpio
    pin: 33
    name: "Relay #2"
    inverted: true

  - platform: gpio
    pin: 14
    name: "Relay #3"
    inverted: true

  - platform: gpio
    pin: 13
    name: "Relay #4"
    inverted: true

  - platform: gpio
    pin: 15
    name: "Relay #5"
    inverted: true

  - platform: gpio
    pin: 4
    name: "Relay #6"
    inverted: true

  - platform: gpio
    pin: 16
    name: "Relay #7"
    inverted: true

  - platform: gpio
    pin: 5
    name: "Relay #8"
    inverted: true
