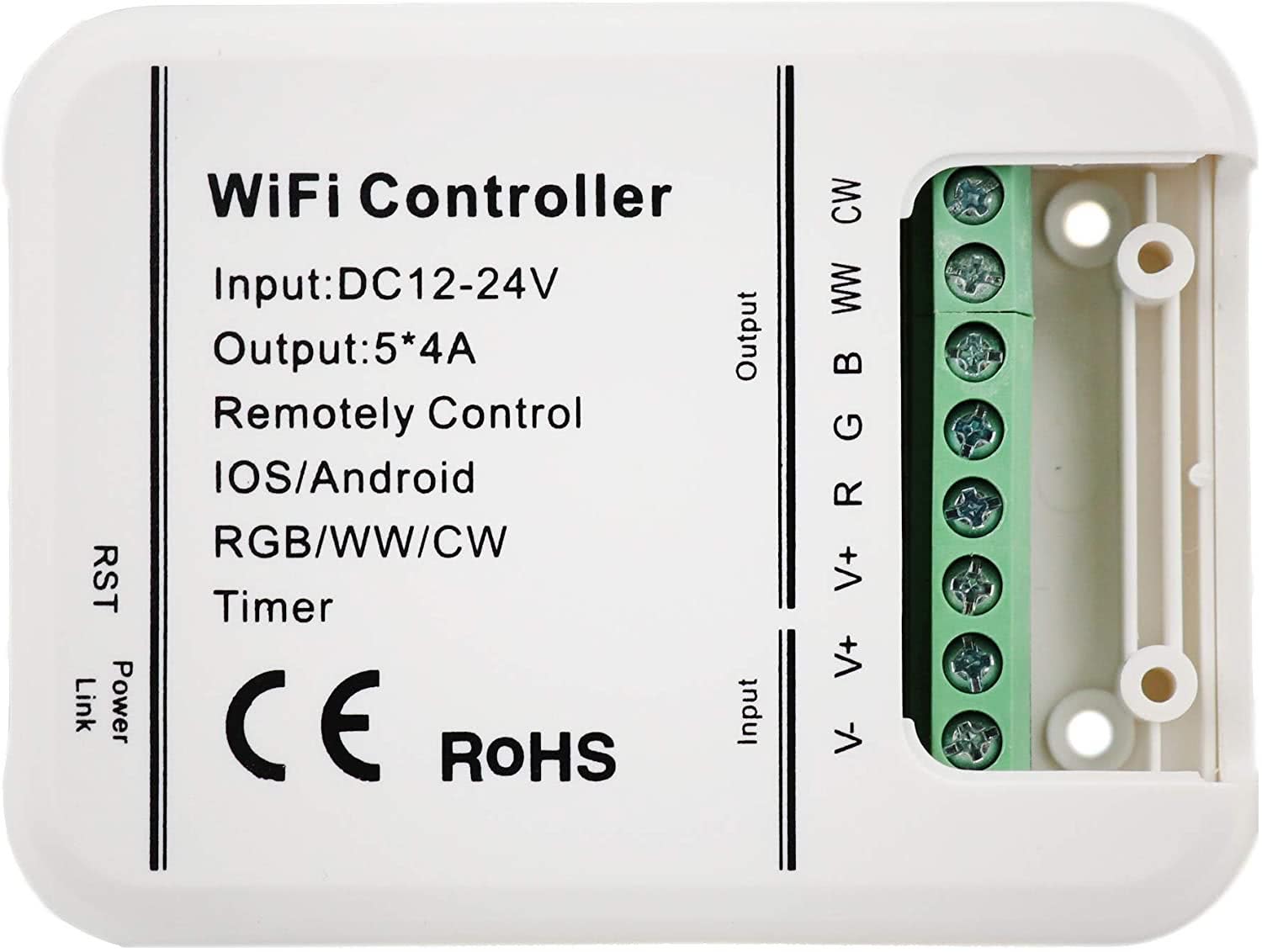

LEDENET Smart WiFi Led Controller (RGB/WW/CW)

General Notes

LEDENET Smart WiFi LED controller compatible with MagicHome.

Manufacturer: LEDENET

GPIO Pinout

Pin	Function
GPIO0	Reset Button
GPIO2	Link LED (Green)
GPIO14	Red Channel
GPIO12	Green Channel
GPIO13	Blue Channel
GPIO5	Cold White Channel
GPIO15	Warm White Channel

RGB/WW/CW Config

substitutions:
  device_name: "magichome5ch"
  friendly_name: "Magic Home RGB/WW/CW"
  cold_temp: 6536 K
  warm_temp: 2000 K

esphome:
  name: ${device_name}

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
logger:

api:
  encryption:
    key: !secret encryption_key

ota:
  password: !secret otapw

web_server:
  port: 80

status_led:
  pin:
    number: GPIO2
    inverted: true

binary_sensor:
  - platform: gpio
    name: "${device_name} Reset Button"
    id: button
    pin:
      number: GPIO0
      inverted: true

light:
  - platform: rgbww
    name: ${friendly_name}
    id: ${device_name}
    red: red_channel
    green: green_channel
    blue: blue_channel
    cold_white: cold_white_channel
    warm_white: warm_white_channel
    cold_white_color_temperature: ${cold_temp}
    warm_white_color_temperature: ${warm_temp}

output:
  - platform: esp8266_pwm
    id: red_channel
    pin: GPIO14
  - platform: esp8266_pwm
    id: green_channel
    pin: GPIO12
  - platform: esp8266_pwm
    id: blue_channel
    pin: GPIO13
  - platform: esp8266_pwm
    id: cold_white_channel
    pin: GPIO5
  - platform: esp8266_pwm
    id: warm_white_channel
    pin: GPIO15

RGBW Config

substitutions:
  device_name: "magichome5ch"
  friendly_name: "Magic Home RGB/WW/CW"

esphome:
  name: ${device_name}

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
logger:

api:
  encryption:
    key: !secret encryption_key

ota:
  password: !secret otapw

web_server:
  port: 80

status_led:
  pin:
    number: GPIO2
    inverted: true

binary_sensor:
  - platform: gpio
    name: "${device_name} Reset Button"
    id: button
    pin:
      number: GPIO0
      inverted: true

light:
  - platform: rgbw
    name: ${friendly_name}
    id: ${device_name}
    red: red_channel
    green: green_channel
    blue: blue_channel
    white: cold_white_channel
    color_interlock: true

output:
  - platform: esp8266_pwm
    id: red_channel
    pin: GPIO14
  - platform: esp8266_pwm
    id: green_channel
    pin: GPIO12
  - platform: esp8266_pwm
    id: blue_channel
    pin: GPIO13
  - platform: esp8266_pwm
    id: cold_white_channel
    pin: GPIO5
  - platform: esp8266_pwm
    id: warm_white_channel
    pin: GPIO15

RGB Config

substitutions:
  device_name: "magichome5ch"
  friendly_name: "Magic Home RGB/WW/CW"

esphome:
  name: ${device_name}

esp8266:
  board: esp8285

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
logger:

api:
  encryption:
    key: !secret encryption_key

ota:
  password: !secret otapw

web_server:
  port: 80

status_led:
  pin:
    number: GPIO2
    inverted: true

binary_sensor:
  - platform: gpio
    name: "${device_name} Reset Button"
    id: button
    pin:
      number: GPIO0
      inverted: true

light:
  - platform: rgb
    name: ${friendly_name}
    id: ${device_name}
    red: red_channel
    green: green_channel
    blue: blue_channel

output:
  - platform: esp8266_pwm
    id: red_channel
    pin: GPIO14
  - platform: esp8266_pwm
    id: green_channel
    pin: GPIO12
  - platform: esp8266_pwm
    id: blue_channel
    pin: GPIO13
  - platform: esp8266_pwm
    id: cold_white_channel
    pin: GPIO5
  - platform: esp8266_pwm
    id: warm_white_channel
    pin: GPIO15
