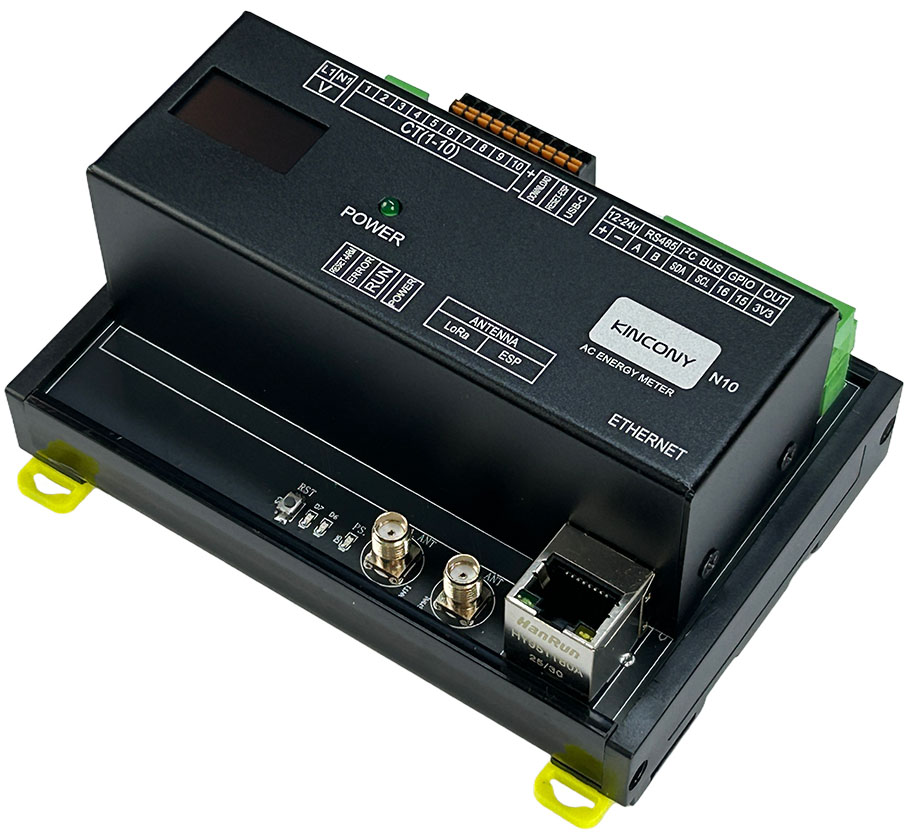

KinCony-N10 AC energy meter
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony N10 AC energy meter board.
esphome:
name: n10
friendly_name: n10
esp32:
board: esp32-s3-devkitc-1
framework:
type: arduino
# Enable logging
logger:
# baud_rate: 0
# Enable Home Assistant API
api:
ota:
platform: esphome
ethernet:
type: W5500
clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41
interrupt_pin: GPIO2
reset_pin: GPIO1
uart:
rx_pin: 9
tx_pin: 10
baud_rate: 115200
stop_bits: 1
data_bits: 8
parity: NONE
text_sensor:
- platform: ethernet_info
ip_address:
name: ESP IP Address
id: eth_ip
address_0:
name: ESP IP Address 0
address_1:
name: ESP IP Address 1
address_2:
name: ESP IP Address 2
address_3:
name: ESP IP Address 3
address_4:
name: ESP IP Address 4
dns_address:
name: ESP DNS Address
mac_address:
name: ESP MAC Address
font:
- file: "gfonts://Roboto"
id: roboto
size: 15
i2c:
sda: 18
scl: 17
display:
- platform: ssd1306_i2c
model: "SSD1306 128x64"
address: 0x3C
lambda: |-
it.printf(0, 15, id(roboto), "IP: %s", id(eth_ip).state.c_str());
modbus:
modbus_controller:
- address: 1
update_interval: 5s
sensor:
- platform: modbus_controller
address: 100
register_type: holding
name: bl0910_1_current_1
id: n10_1_current_1
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 102
register_type: holding
name: bl0910_1_current_2
id: n10_1_current_2
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 104
register_type: holding
name: bl0910_1_current_3
id: n10_1_current_3
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 106
register_type: holding
name: bl0910_1_current_4
id: n10_1_current_4
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 108
register_type: holding
name: bl0910_1_current_5
id: n10_1_current_5
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 110
register_type: holding
name: bl0910_1_current_6
id: n10_1_current_6
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 112
register_type: holding
name: bl0910_1_current_7
id: n10_1_current_7
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 114
register_type: holding
name: bl0910_1_current_8
id: n10_1_current_8
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 116
register_type: holding
name: bl0910_1_current_9
id: n10_1_current_9
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 118
register_type: holding
name: bl0910_1_current_10
id: n10_1_current_10
unit_of_measurement: A
device_class: current
accuracy_decimals: 3
value_type: U_DWORD_R
filters:
- multiply: 0.001
- platform: modbus_controller
address: 120
register_type: holding
name: bl0910_1_power_1
id: n10_1_watt_1
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 122
register_type: holding
name: bl0910_1_power_2
id: n10_1_watt_2
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 124
register_type: holding
name: bl0910_1_power_3
id: n10_1_watt_3
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 126
register_type: holding
name: bl0910_1_power_4
id: n10_1_watt_4
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 128
register_type: holding
name: bl0910_1_power_5
id: n10_1_watt_5
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 130
register_type: holding
name: bl0910_1_power_6
id: n10_1_watt_6
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 132
register_type: holding
name: bl0910_1_power_7
id: n10_1_watt_7
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 134
register_type: holding
name: bl0910_1_power_8
id: n10_1_watt_8
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 136
register_type: holding
name: bl0910_1_power_9
id: n10_1_watt_9
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
address: 138
register_type: holding
name: bl0910_1_power_10
id: n10_1_watt_10
unit_of_measurement: W
device_class: power
accuracy_decimals: 1
value_type: U_DWORD_R
filters:
- multiply: 0.1
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 140
register_type: holding
name: bl0910_1_energy_1
id: n10_1_energy_1
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 142
register_type: holding
name: bl0910_1_energy_2
id: n10_1_energy_2
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 144
register_type: holding
name: bl0910_1_energy_3
id: n10_1_energy_3
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 146
register_type: holding
name: bl0910_1_energy_4
id: n10_1_energy_4
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 148
register_type: holding
name: bl0910_1_energy_5
id: n10_1_energy_5
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 150
register_type: holding
name: bl0910_1_energy_6
id: n10_1_energy_6
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 152
register_type: holding
name: bl0910_1_energy_7
id: n10_1_energy_7
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 154
register_type: holding
name: bl0910_1_energy_8
id: n10_1_energy_8
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 156
register_type: holding
name: bl0910_1_energy_9
id: n10_1_energy_9
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 158
register_type: holding
name: bl0910_1_energy_10
id: n10_1_energy_10
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
state_class: total_increasing
device_class: energy
address: 160
register_type: holding
name: bl0910_1_energy_sum
id: n10_1_energy_sum
unit_of_measurement: kWh
accuracy_decimals: 1
value_type: U_DWORD_R
- platform: modbus_controller
address: 162
register_type: holding
name: bl0910_1_voltage
id: n10_1_voltage
unit_of_measurement: V
device_class: voltage
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 163
register_type: holding
name: bl0910_1_frequency
id: n10_1_period
unit_of_measurement: Hz
device_class: frequency
accuracy_decimals: 1
value_type: U_WORD
filters:
- multiply: 0.01
- platform: modbus_controller
address: 164
register_type: holding
name: bl0910_1_tps1
id: n10_1_tps_1
unit_of_measurement: °C
device_class: temperature
accuracy_decimals: 1
value_type: FP32_R
