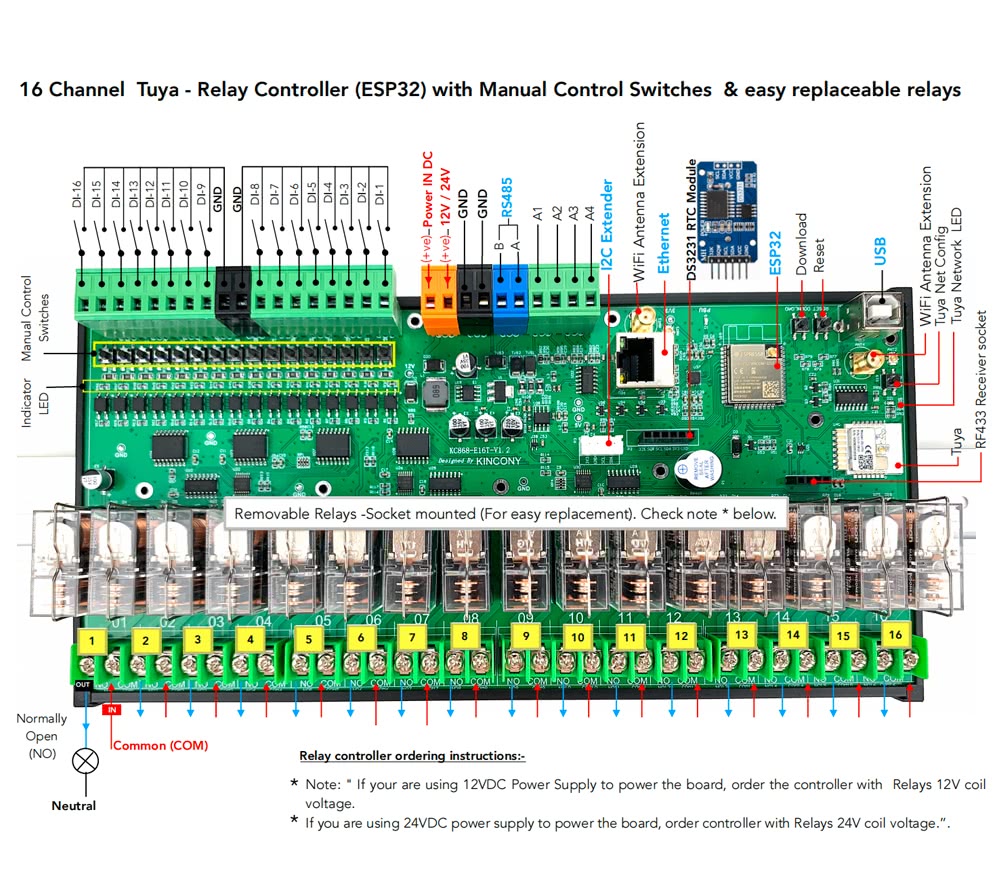

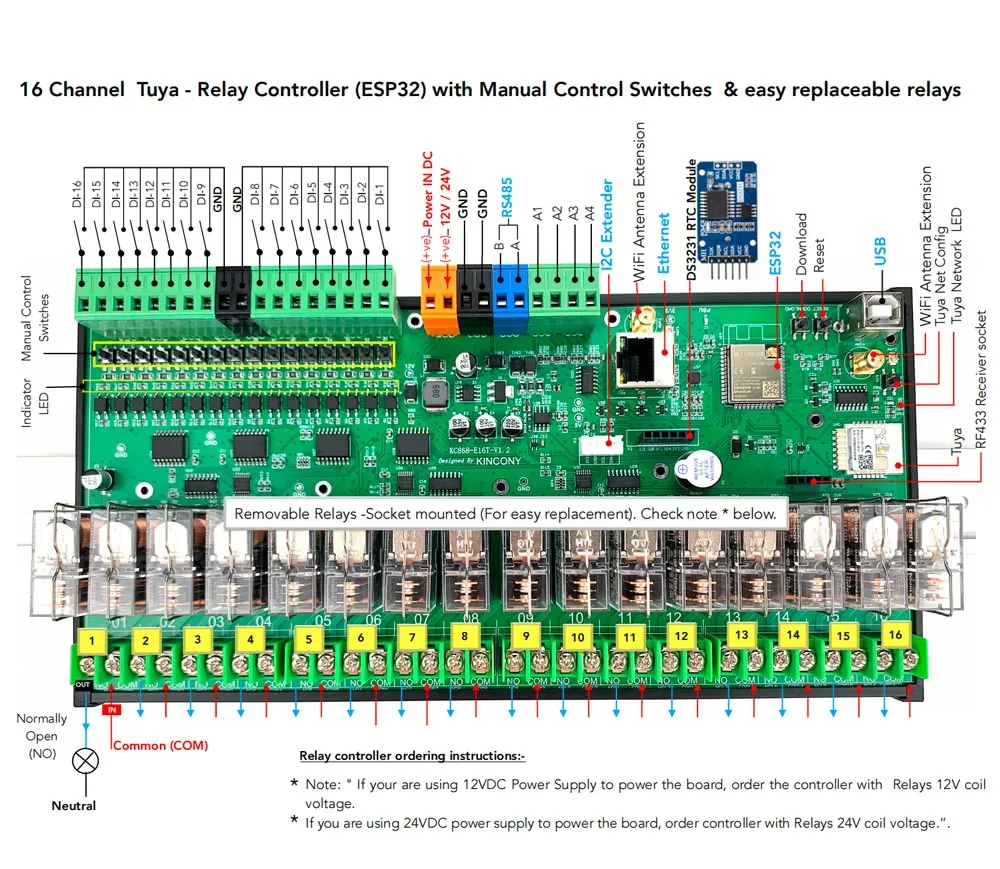

KinCony KC868-E16T

GPIO Pinout

Pin	Function
GPIO36	ANALOG_A1
GPIO35	ANALOG_A2
GPIO34	ANALOG_A3
GPIO39	ANALOG_A4
GPIO16	IIC_SDA
GPIO15	IIC_SCL
GPIO14	1-Wire GPIO
GPIO4	433MHz Receiver
GPIO2	Buzzer
GPIO12	LED

Additional pinout/design details

Basic Configuration

# Basic Config
esphome:
  name: kc868-e16t

esp32:
  board: esp32dev

# Example configuration entry for ESP32
i2c:
  sda: 16
  scl: 15
  scan: true
  id: bus_a

# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

# Example configuration entry
pcf8574:
  - id: "pcf8574_hub_out_1" # for output channel 1-8
    address: 0x21

  - id: "pcf8574_hub_out_2" # for output channel 9-16
    address: 0x25

  - id: "pcf8574_hub_in_1" # for input channel 1-8
    address: 0x22

  - id: "pcf8574_hub_in_2" # for input channel 9-16
    address: 0x24

# Individual outputs
switch:
  - platform: gpio
    name: "e16t-output1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e16t-output16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: "e16t-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e16t-input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

# Enable logging
logger:

# Enable Home Assistant API
api:
