Aspen ASP-200 Smart Window Fan

Aspen ASP-200 Smart Window Fan

Device Type: misc
Electrical Standard: us
Difficulty: Chip needs replacement, 5/5

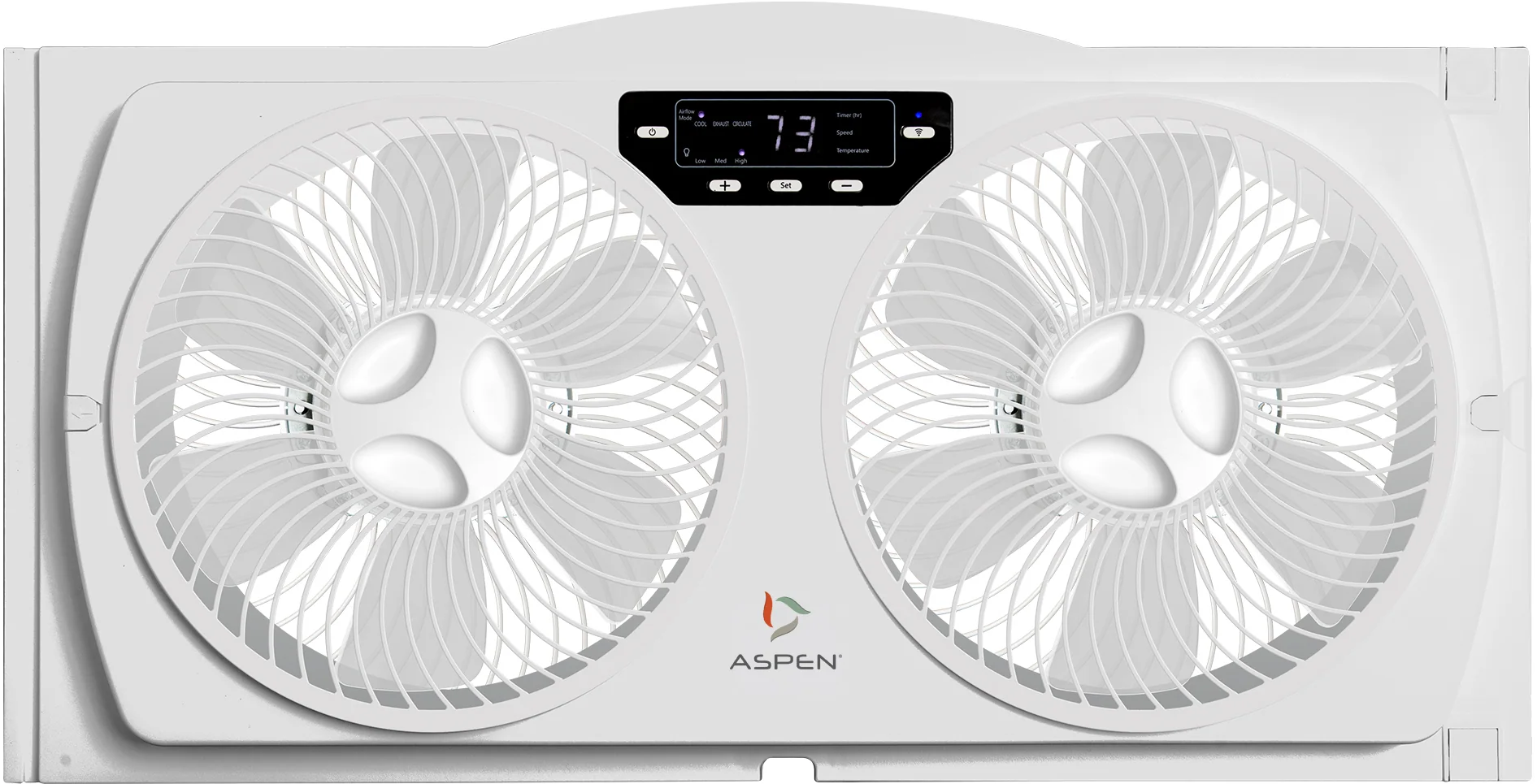

The Aspen ASP-200 Smart Window Fan is a Tuya-based device with a WR1 module (which uses a RTL8710BN chip). The WR1 must be removed and replaced with a ESPHome-compatible chip. Features of the fan include intake/exhaust/circulate modes, three speeds, built-in temperature sensor, and removable grills and blades for easy cleaning.

But, there's a catch. The WR1 module has a 1.5mm pin pitch, compared to the 2.0mm pitch of the ESP-12 modules. I recommend using an ESP-12L, as it has the necessary pins pulled up internally, so it only requires connecting VCC, GND, TX, and RX from the ESP-12L to the PCB.

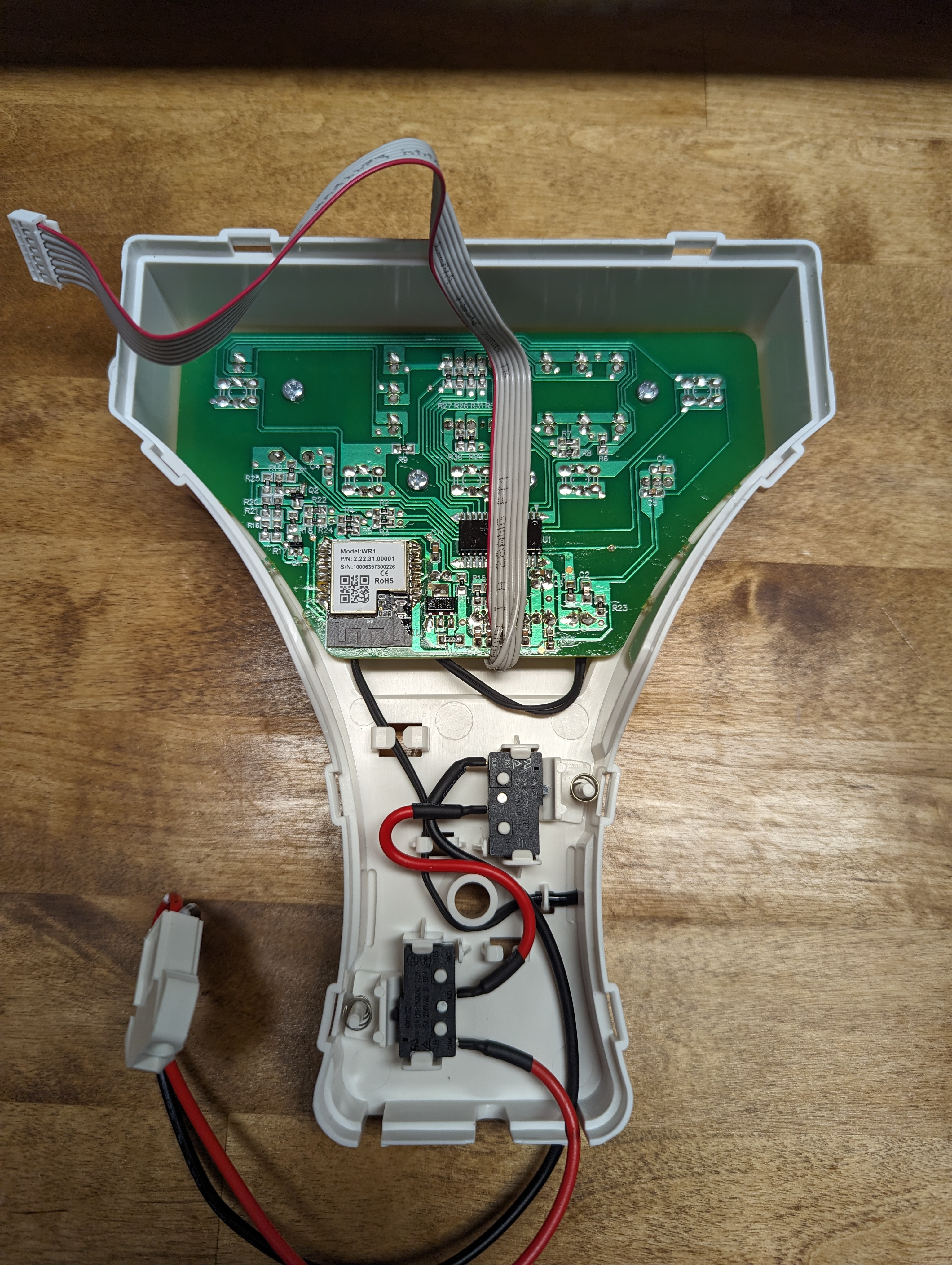

You will have to get creative when connecting the new board to the main PCB. I ended up hot-gluing the ESP-12L module to the WR1 footprint upside down, then using some short lengths of 23ga solid wire from some scrap CAT-6 cable to connect the ESP's pins to the original pads on the WR1 footprint - be very careful if you try using the original pads, as they are very easy to lift off.

Manufacturer Link

Photos

ASP-200

ASP-200 PCB

Basic Configuration

substitutions:
  device_name: asp-200
  device_name_u: asp_200
  friendly_name: "ASP-200 Window Fan"


esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}


esp8266:
  board: esp12e
  restore_from_flash: TRUE


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:


captive_portal:


# Enable Home Assistant API
api:
  # https://esphome.io/components/api
  encryption:
    key: !secret api_encryption_key


ota:
  # https://esphome.io/components/ota
  password: !secret ota_password


# Enable Web server.
web_server:
  port: 80


logger:
  baud_rate: 0


uart:
  rx_pin: GPIO3
  tx_pin: GPIO1
  baud_rate: 9600


tuya:


fan:
  - platform: tuya
    name: ${friendly_name}
    switch_datapoint: 1
    speed_datapoint: 3
    speed_count: 3


switch:
  - platform: tuya
    name: "${friendly_name} Power"
    switch_datapoint: 1
    id: "${device_name_u}_power_switch"


select:
  - platform: tuya
    name: "${friendly_name} Speed"
    id: "${device_name_u}_speed"
    enum_datapoint: 3
    optimistic: true
    options:
      0: Low
      1: Medium
      2: High
  - platform: tuya
    name: "${friendly_name} Mode"
    id: "${device_name_u}_mode"
    enum_datapoint: 2
    optimistic: true
    options:
      0: Intake
      1: Exhaust
      2: Circulate


sensor:
  - platform: "tuya"
    name: "${friendly_name} Temperature"
    id: "${device_name_u}_temp"
    sensor_datapoint: 19
    unit_of_measurement: "°F"

Tuya Datapoints

Tuya:
  Datapoint 19: int value (value: 68)
  Datapoint 1: switch (value: OFF)
  Datapoint 3: enum (value: 0)
  Datapoint 102: enum (value: 2)
  Datapoint 8: bitmask (value: 0)
  Datapoint 2: enum (value: 0)
  Datapoint 101: switch (value: OFF)
  Datapoint 18: int value (value: 0)
  Product: '{"p":"gggmgplbesjv8gbx","v":"1.0.0","m":0}'
