Zemismart 7W BR30 Bulb

Zemismart 7W BR30 Bulb

Device Type: light
Electrical Standard: eu
Board: esp8266

RGBW smart light bulb, BR30 shape, E27 base, 420-480lm, RGB colors + cold white, 100-240V AC 50/60Hz, natively Tuya/Smart Life, works with Tuya-convert to flash to ESPHome.

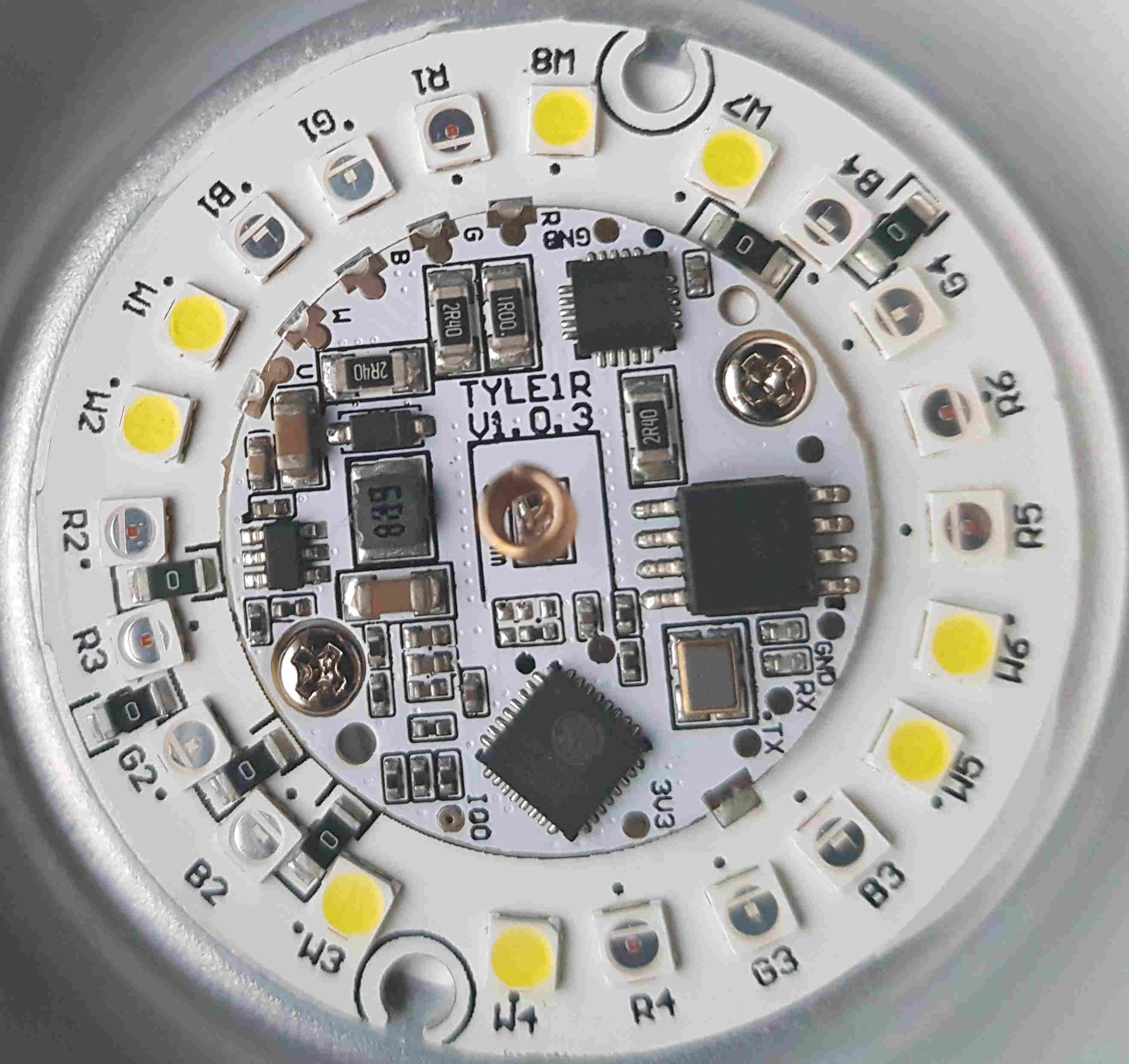

Product Images

alt text

GPIO Pinout

PinFunction
GPIO13my9231 data pin
GPIO15my9231 clock pin

Basic Configuration

#https://www.zemismart.com/br30-wifi-rgbw-led-light-work-with-alexa-echo-google-home-assistance-ifttt-support-tuya-app-voice-timer-control-e27-lamp-p0053-p0053.html
substitutions:
dev_name: zemismart_bulb_br30_001
esphome:
name: ${dev_name}
platform: ESP8266
board: esp01_1m
wifi:
# Enable logging
logger:
api:
ota:
switch:
- platform: shutdown
name: "${dev_name}_shutdown"
- platform: restart
name: "${dev_name}_restart"
my9231:
data_pin: GPIO13
clock_pin: GPIO15
num_channels: 4
num_chips: 1
output:
- platform: my9231
id: output_white
channel: 0
- platform: my9231
id: output_blue
channel: 1
- platform: my9231
id: output_green
channel: 2
- platform: my9231
id: output_red
channel: 3
light:
- platform: rgbw
id: light_01
name: "${dev_name}_light"
default_transition_length: 0s
restore_mode: ALWAYS_ON #Start with light on after reboot/power-loss event, so that it works from a dumb lightswitch
red: output_red
green: output_green
blue: output_blue
white: output_white
sensor:
- platform: wifi_signal
name: "${dev_name}_wifi_signal"
update_interval: 30s
- platform: uptime
name: "${dev_name}_uptime"
update_interval: 120s
text_sensor:
- platform: version
name: "${dev_name}_version"
