TreatLife DS02S Single Pole Dimmer

TreatLife DS02S Single Pole Dimmer

Device Type: dimmer
Electrical Standard: us
Board: esp8266

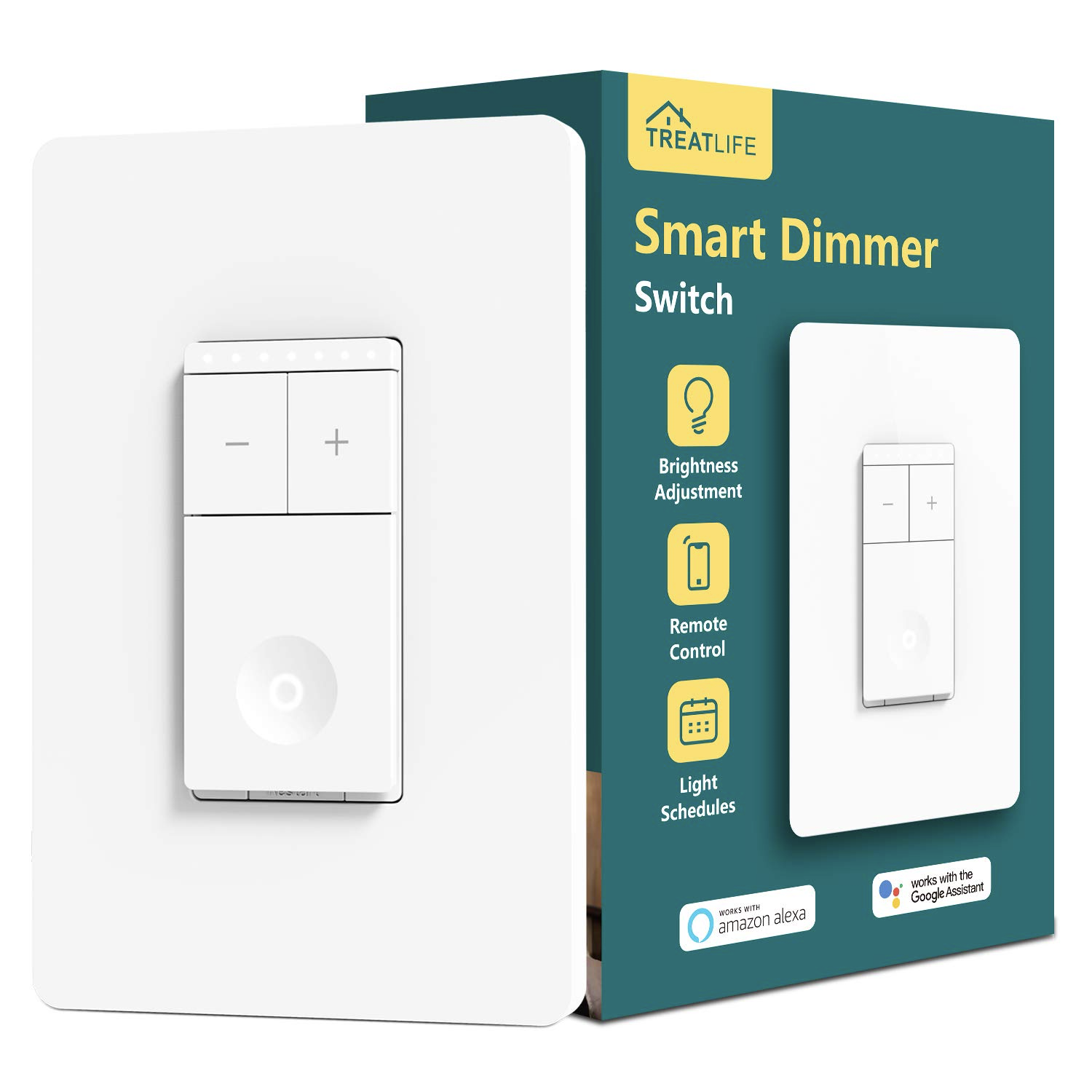

Treatlife DS02S Switch image

Amazon Link

Notes

This TuyaMCU requires a baud rate of 9600 (see latest note on January 2022 for more info), unlike the DS03 dimmer.

July 2021 - New device purchased now has Tuya WB3S Wifi Microcontroller in place of the previous TYWE3S, which is not ESP based. Luckily, the main board still has the appropriate footprint for an ESP-12F. Further instructions on how to swap microcontrollers can be found here

January 2022 - Newer models require a baudrate of 115200, similar to that of the DS03 dimmer. Like the DS03, it might say Invalid baud_rate: Integration requested baud_rate 9600 but you have 115200!, however this can be ignored.

GPIO Pinout

PinFunction
GPIO1Tuya Tx
GPIO3Tuya Rx

Basic Configuration

substitutions:
device_name: familyroom_light_1 #change
friendly_name: Family Room Light #change
icon: "mdi:light-switch"
esphome:
name: ${device_name}
platform: ESP8266
board: esp01_1m
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
fast_connect: true
ap:
ssid: ${device_name}
password: !secret esphome_ap_password
logger:
baud_rate: 0
api:
encryption:
key: !secret api_encryption_key
ota:
password: !secret esphome_ota_password
web_server:
port: 80
uart:
rx_pin: GPIO3
tx_pin: GPIO1
baud_rate: 9600 #This may need to be 115200 See above in the notes
tuya:
sensor:
- platform: wifi_signal
name: ${friendly_name} WiFi Signal
update_interval: 60s
- platform: uptime
name: ${friendly_name} Uptime
light:
- platform: "tuya"
name: ${friendly_name}
dimmer_datapoint: 2
switch_datapoint: 1
min_value: 100
max_value: 1000

Advanced Configuration

Below are some advanced configuration options that may be required if your dimmer is not behaving as expected.

This will add a select component to allow changing the dimming mode on the MCU, giving you a drop-down of dimming mode options. Recommended to try out all and see which works best, then set it statically.

select:
- platform: "tuya"
id: "dimmer_mode"
name: "Dimming Mode"
enum_datapoint: 4
options:
0: Mode 1 # Index 0
1: Mode 2 # Index 1
2: Mode 3 # Index 2

Here is a script that will set the dimming mode in a more static fashion when ESPHome Reboots. This will select based on the index of the select component instead of by name of the mode. This can still be set via drop down if this script is included, it will just set it to this value every boot.

esphome:
on_boot:
then:
- delay: 30s # Wait 30 seconds because even with a priority of -200.0, it will not update the datapoint.
- select.set_index:
id: "dimmer_mode"
index: 2
