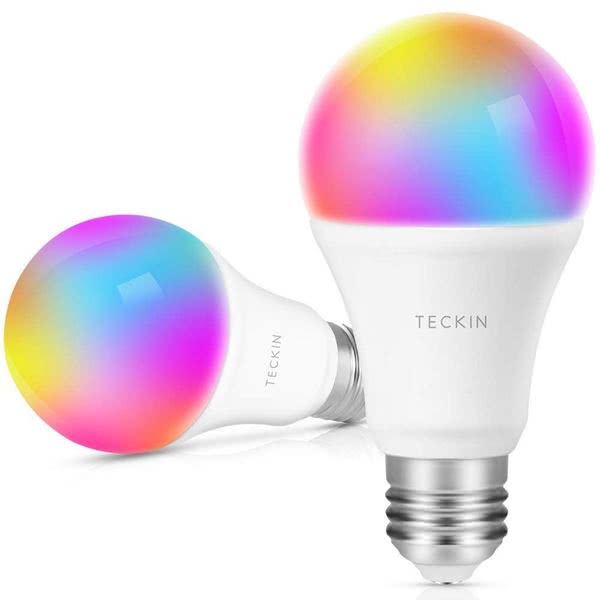

Teckin SB50 (rgbww version)

Teckin SB50 (rgbww version)

Device Type: light
Electrical Standard: global
Board: esp8266


Note

It is not currently possible to flash these bulbs with tuya-convert due to shipping with an updated/patched firmware. Please check this issue for details and progress on a workaround.

The Teckin SB50 Bulb\'s are a great option for lighting that could previously be flashed with tuya-convert. More details can be found at tuya-convert github page. Below is the ESPHome configuration file that will get you up and running. This assumes you have a secret.yaml with ssid, password, api_password and ota_password keys.

esp8266:
  board: esp01_1m


output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_warm_white
    pin: GPIO13
  - platform: esp8266_pwm
    id: output_cold_white
    pin: GPIO5


light:
  - platform: rgbww
    name: $devicename
    id: $devicename
    red: output_red
    green: output_green
    blue: output_blue
    warm_white: output_warm_white
    cold_white: output_cold_white
    cold_white_color_temperature: 6200 K
    warm_white_color_temperature: 2800 K
    color_interlock: true # avoids simultaneous RGB and W/W
