MiBoxer WL5 WiFi 5 in 1 LED Strip Controller

MiBoxer WL5 WiFi 5 in 1 LED Strip Controller

Device Type: light
Electrical Standard: global
Board: rtl87xx
Difficulty: Soldering required, 4/5

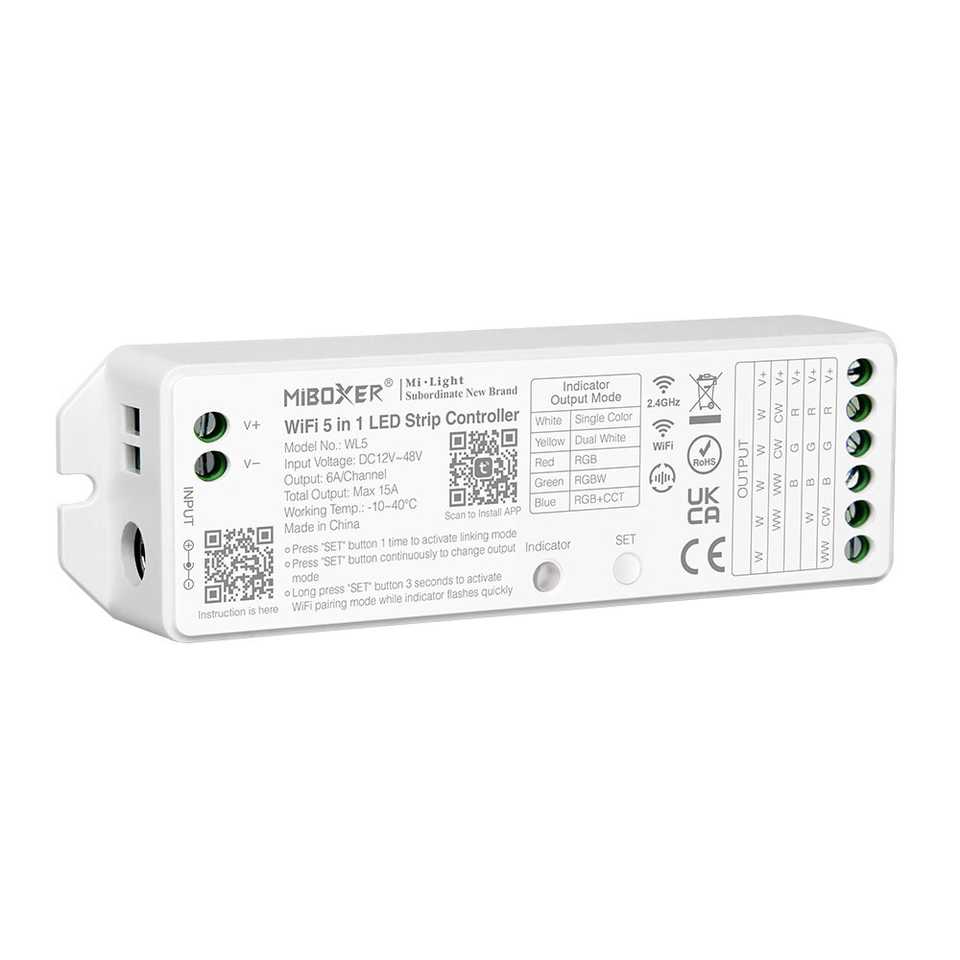

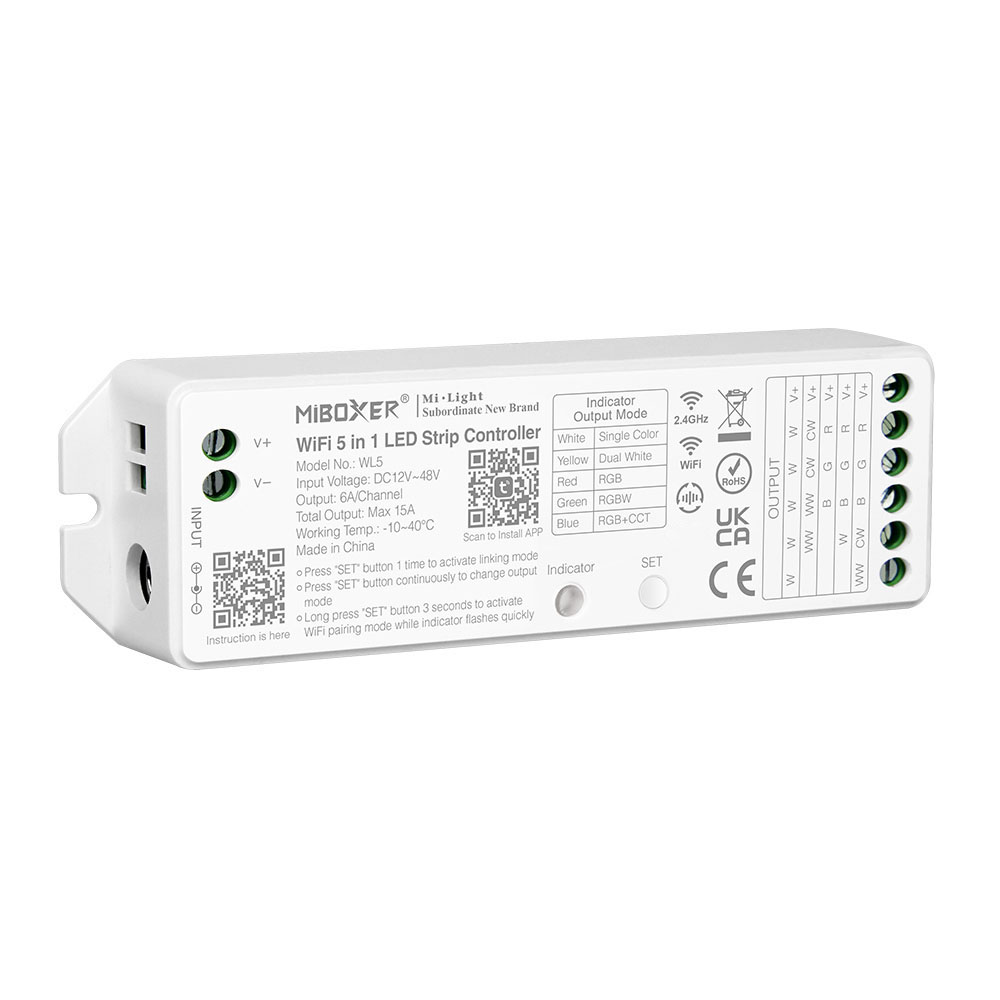

MiBoxer WL5

The MiBoxer WL5 is an LED controller with support for single color, CCT, RGB, RGBW, and RGBWW LED strips. It also has support for 2.4 GHz RF remote controls.

Functionally, it closely resembles the Tuya WB5 LED controller, with the main difference being the microcontroller. The WL5 uses a Tuya WR3 module, which is based on the RTL8710BN microcontroller.

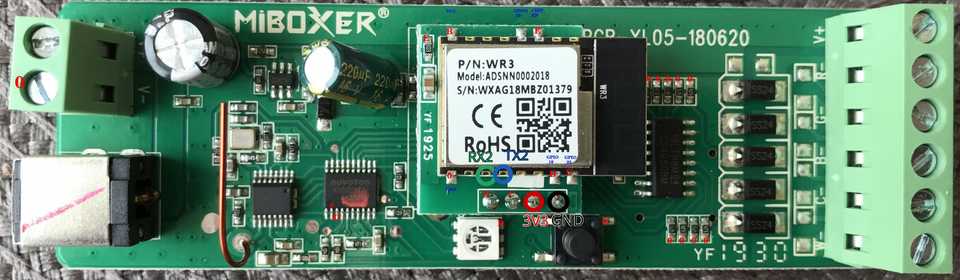

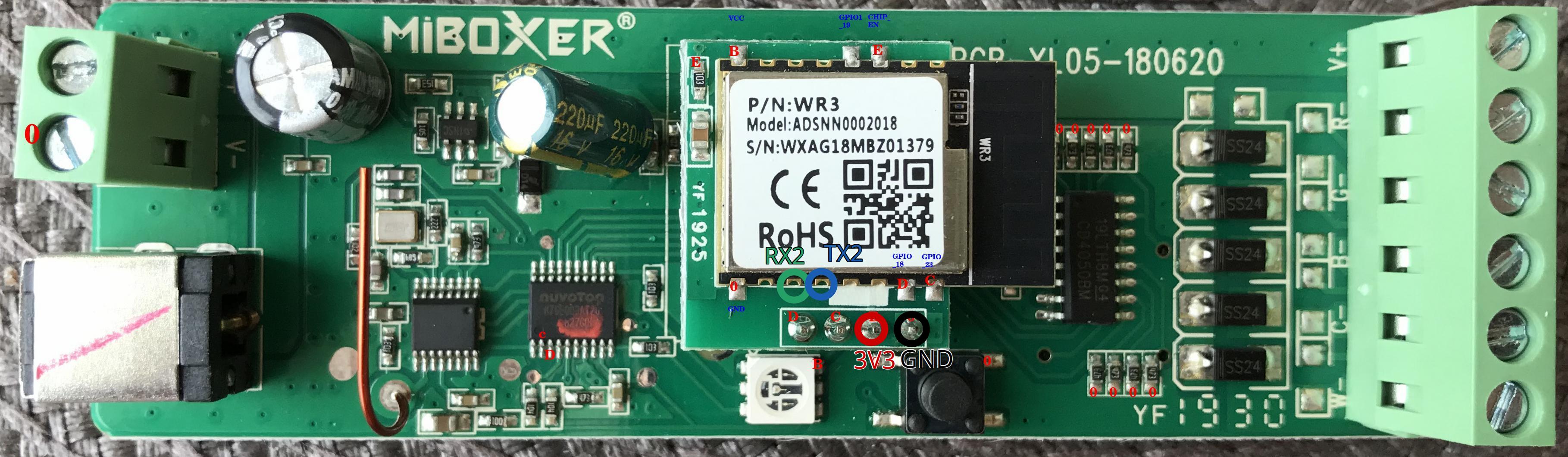

Pinout

MiBoxer WL5

PinFunction
GNDGround connection
3V33.3V input for powering the controller
TX0Transmit pin connected to the Tuya MCU
RX0Receive pin connected to the Tuya MCU
TX2Transmit pin used for flashing/programming
RX2Receive pin used for flashing/programming

Prerequisites

  • Connect your serial programming adapter to the WR3 module as follows:

    • GND → GND
    • 3V3 → 3V3
    • RX → TX2
    • TX → RX2
      Refer to the image above for the pinout layout.

  • If you haven’t already, download ltchiptool, a command-line utility for flashing and dumping firmware.
    Note: The standard ESP flasher is not compatible with this device.

Flashing

Before flashing or dumping firmware, the device must be placed in download mode:

  1. Short TX2 to GND.
  2. Power on the device by connecting either:
    • the 3.3V and GND lines to an adjustable power supply, or
    • the device’s 12–24V DC power supply via the INPUT plug connection.
  3. Connect the programming adapter to your PC.

    ltchiptool will prompt you later to disconnect TX2 from GND.

Note: As an alternative to disconnecting and reconnecting power, you can also power cycle the device by shorting the EN pin to GND

Backing up the original firmware

Before flashing ESPHome, it’s highly recommended to back up the original firmware in case you want to restore the stock functionality later. Run:

ltchiptool flash read realtek-ambz2 wl5_backup.uf2

After issuing the command, disconnect TX2 from GND to begin the backup process.

Flashing ESPHome

  1. In the ESPHome device builder, after configuring your firmware, select: Install > Manual download, then click UF2 package to download the compiled binary.
  2. Put the device back into download mode (short TX2 to GND, then power on).
  3. Flash the new firmware using:
ltchiptool flash write realtek-ambz2 firmware.uf2

Basic configuration

esphome:
  name: miboxer-wl5
  friendly_name: MiBoxer WL5
  comment: MiBoxer WiFi 5 in 1 LED Strip Controller
  project:
    name: MiBoxer.WL5
    version: "2025.8.0"


rtl87xx:
  board: wr3
  framework:
    version: latest


# Enable logging
logger:


# Enable Home Assistant API
api:


ota:
  - platform: esphome


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "MiBoxer WL5 Fallback Hotspot"


# Note: At the time of writing, enabling `web_server` or `captive_portal` causes the firmware compilation to fail.
captive_portal:


uart:
  rx_pin: RX0
  tx_pin: TX0
  baud_rate: 9600


tuya:


number:
  - platform: tuya
    name: Auto-off timer
    number_datapoint: 26
    min_value: 0
    max_value: 86400
    step: 1
    multiply: 60
    unit_of_measurement: min.
    entity_category: config
    icon: mdi:timer




select:
  - platform: tuya
    name: Mode
    enum_datapoint: 21
    optimistic: true
    options:
      0: White
      1: Color
      2: Scene
    icon: mdi:menu-open
    entity_category: config

Configuring output modes

Single color mode

light:
  - platform: tuya
    name: Light
    switch_datapoint: 20
    color_interlock: true
    gamma_correct: 1
    default_transition_length: 0s


    dimmer_datapoint: 22
    min_value: 0
    max_value: 1000

CCT mode

light:
  - platform: tuya
    name: Light
    switch_datapoint: 20
    color_interlock: true


    dimmer_datapoint: 22
    min_value: 0
    max_value: 1000


    color_temperature_datapoint: 23
    color_temperature_invert: true
    color_temperature_max_value: 1000
    cold_white_color_temperature: 6000 K
    warm_white_color_temperature: 2700 K

RGB mode

light:
  - platform: tuya
    name: Light
    switch_datapoint: 20
    color_interlock: true


    color_datapoint: 24
    color_type: hsv

RGBW mode

light:
  - platform: tuya
    name: Light
    switch_datapoint: 20
    color_interlock: true


    dimmer_datapoint: 22
    min_value: 0
    max_value: 1000


    color_datapoint: 24
    color_type: hsv

RGBWW mode

light:
  - platform: tuya
    name: Light
    switch_datapoint: 20
    color_interlock: true


    dimmer_datapoint: 22
    min_value: 0
    max_value: 1000


    color_temperature_datapoint: 23
    color_temperature_invert: true
    color_temperature_max_value: 1000
    cold_white_color_temperature: 6000 K
    warm_white_color_temperature: 2700 K


    color_datapoint: 24
    color_type: hsv
