MJ-RP-FC01 Ceiling Fan Controller

MJ-RP-FC01 Ceiling Fan Controller

Device Type: fan
Electrical Standard: us
Board: esp32-c3
Difficulty: Disassembly required, 3/5

Contributed by Tim Irvin

Overview

The MJ-RP-FC01 is a WiFi-enabled ceiling fan controller originally built for the Tuya ecosystem.
It uses an ESP32-C3 microcontroller and a Tuya MCU to manage fan speeds and modes.
With ESPHome, the device can be locally controlled in Home Assistant without cloud dependencies.

This integration provides full speed and mode control via ESPHome while preserving the physical paddle switch functionality.

Amazon link

Features

  • 4 speed levels (25%, 50%, 75%, 100%)
  • Preset modes: Normal, Natural, Sleep
  • Tuya MCU-based UART control
  • ESPHome-native WiFi, OTA, and API support
  • Paddle input retains speed cycling control
  • Full Home Assistant integration

CN2 Pinout (Confirmed)

CN2 PinESP32-C3 PinFunction
1GPIO2Status LED / indicator (unused for flashing)
2ENReset / Enable
3GPIO9Boot select
4GPIO8Pin (unused for flashing)
53.3VPower
6GNDGround
7GPIO21UART RX (to TX of USB-TTL)
8GPIO22UART TX (to RX of USB-TTL)

Entering Bootloader Mode

When flashing the ESP32-C3 directly, use the following steps to enter boot mode:

  1. Power the board at 3.3V and GND.
  2. Hold GPIO9 to GND.
  3. Pulse EN to GND briefly (while still holding GPIO9).
  4. Release GPIO9.
  5. Flash factory firmware at 115200 baud via your USB-TTL adapter.
  6. Subsequent OTA firmware flashing will work

⚠️ Note: Do not attempt to flash via the Tuya Tasmota web UI.
While it may initially accept an ESPHome binary, OTA updates will fail afterward,
requiring disassembly and a serial reflash using this method.

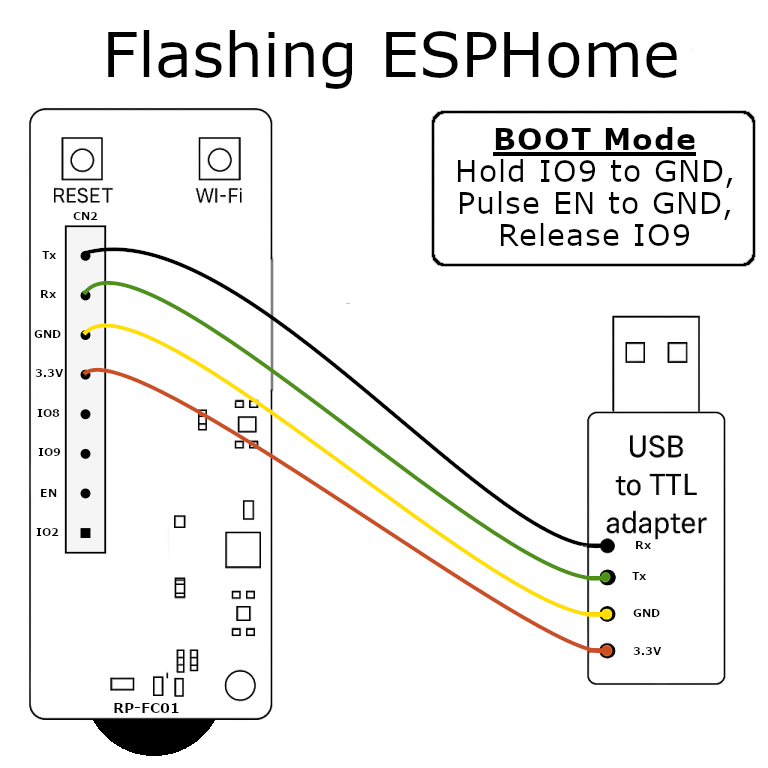

Flashing Connections

USB-TTL AdapterCN2 PinNotes
TX →GPIO21RX on CN2 (UART0)
RX ←GPIO22TX on CN2 (UART0)
GNDGNDCommon ground
3.3V3.3VPower supply

ESPHome YAML Example

Below is the confirmed working configuration used in Home Assistant:

substitutions:
  name: "rp-fc01"
  friendly_name: "Martin Jerry RP-FC01"


esphome:
  name: "${name}"
  friendly_name: "${friendly_name}"
  comment: MJ-RP-FC01 Ceiling Fan Controller (ESP32-C3)


esp32:
  board: esp32-c3-devkitm-1
  variant: esp32c3
  framework:
    type: esp-idf


logger:
  level: DEBUG


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: "FanControlFallback"
    password: "fallback1234"


api:
ota:


uart:
  id: uart_bus
  tx_pin: GPIO22
  rx_pin: GPIO21
  baud_rate: 9600


tuya:
  uart_id: uart_bus


fan:
  - platform: tuya
    id: mcu_fan
    name: "Ceiling Fan"
    switch_datapoint: 1
    speed_datapoint: 3
    speed_count: 4


select:
  - platform: tuya
    id: fan_mode_select
    name: "Fan Mode"
    enum_datapoint: 11
    options:
      0: Normal
      1: Natural
      2: Sleep

Behavior Notes

  • Speed cycling: The physical paddle cycles through the four fan speeds (25–100%). Long-pressing the down paddle powers the fan off.

  • Preset mode: The mode selector in Home Assistant (Normal/Natural/Sleep) persists internally but may reset visually when fan speed changes. This is purely a UI sync quirk; the MCU retains its selected mode.

  • Timer function: The MCU includes a timer datapoint, but this integration omits it by default since it’s rarely used.

Images

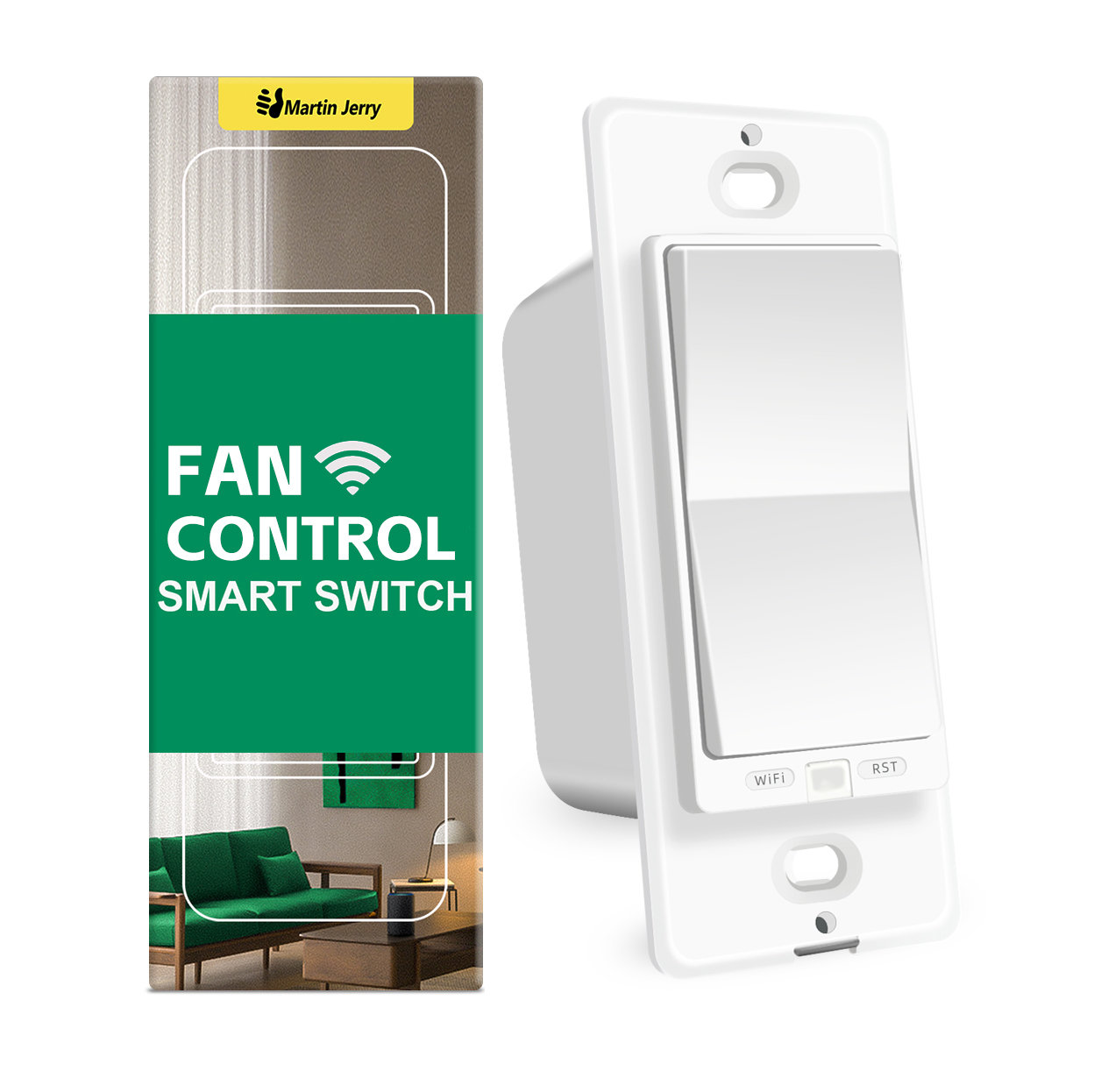

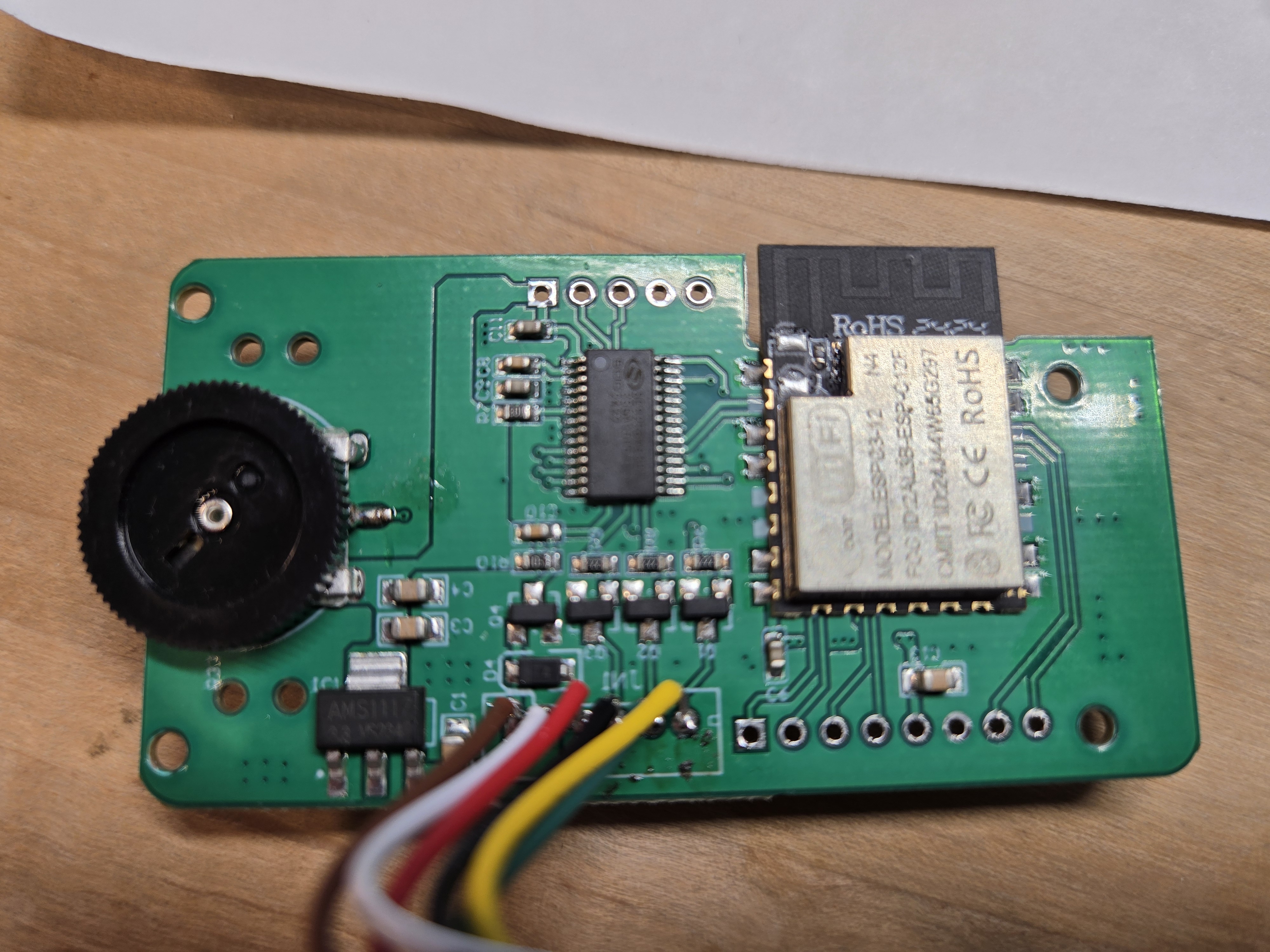

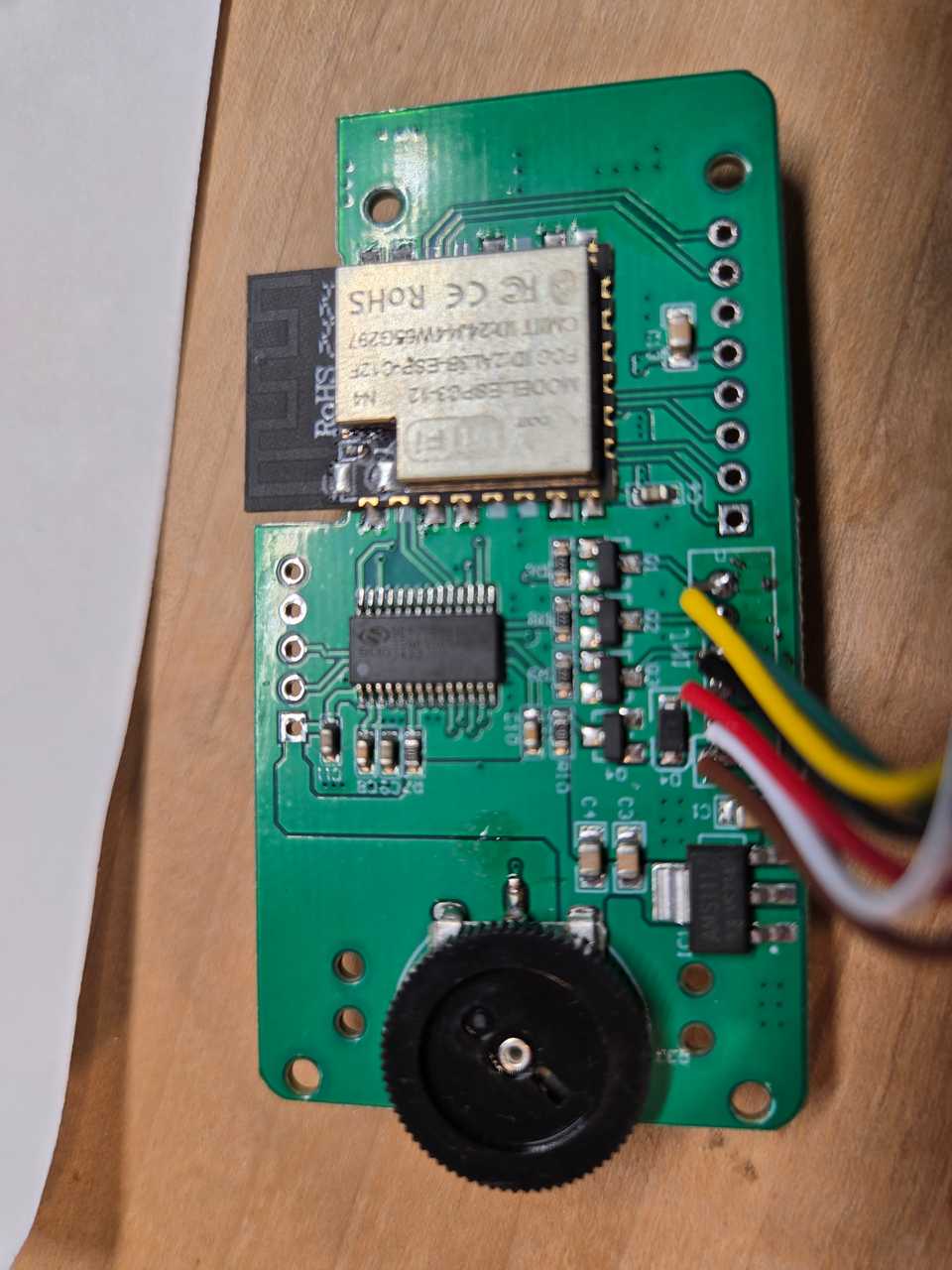

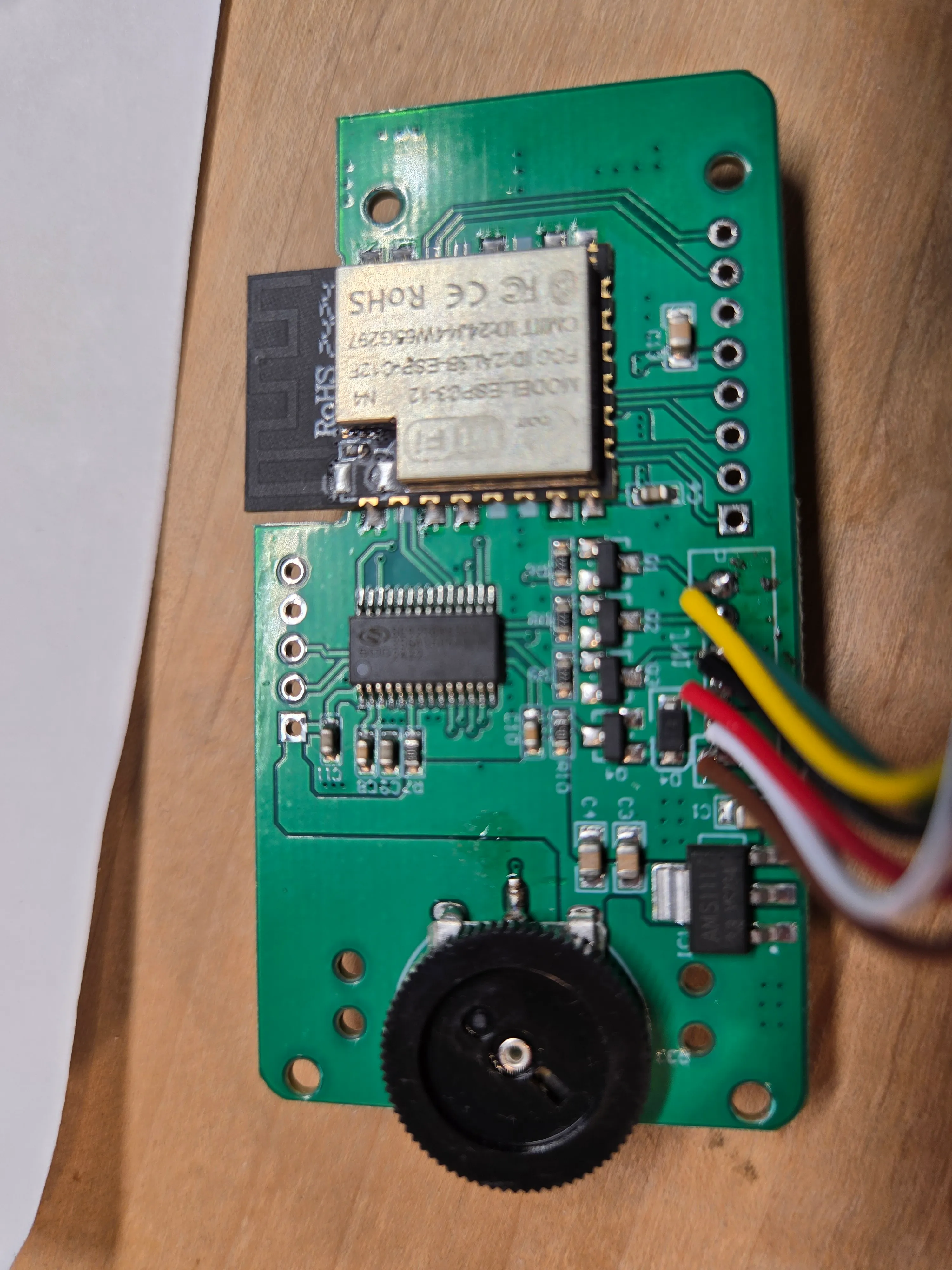

Board Overview Board Close-up Flash Wiring Diagram

Acknowledgments

Special thanks to the ESPHome community and all contributors who helped validate the UART mapping and Tuya datapoint decoding. This guide was field-tested and verified by Tim Irvin in October 2025.

Caveats

  • Requires disassembly for the first flash.
  • CN2 header pins are not marked, pin 1 has the square pad.
  • Always verify voltage at CN2 before connecting USB-TTL (must be 3.3V).

Revision History

  • 2025-10-04: Initial public release (confirmed working ESPHome build)
