LUTEC Origo WiZ ceiling/wall lamp

LUTEC Origo WiZ ceiling/wall lamp

Device Type: light
Electrical Standard: global
Board: esp32
Difficulty: Soldering required, 4/5

Notes

An older version (non WiZ) exists with 2xE27 socket and no wifi. The LED driver hums when the brightness gets too high and the PWM frequency is too low.

Flashing Procedure

On the LED's driver board, there is a small PCB with an ESP32-WROOM-32 module. It's glued in and connected with a 2 MM pitched header. On the backside of the PCB are pads with 2.54 MM header that can be used to flash.

Light Specifications

Color: RGB+Warm+Cold White
Color Temperature: 2700-6500K
Warm White LEDs: 5x3
Warm White LEDs: 5x3
RGB LEDs: 6
Brightness: 830 lumens
Voltage: 110V~250V
Power: 15W
IP54 ingress protection

Product Images

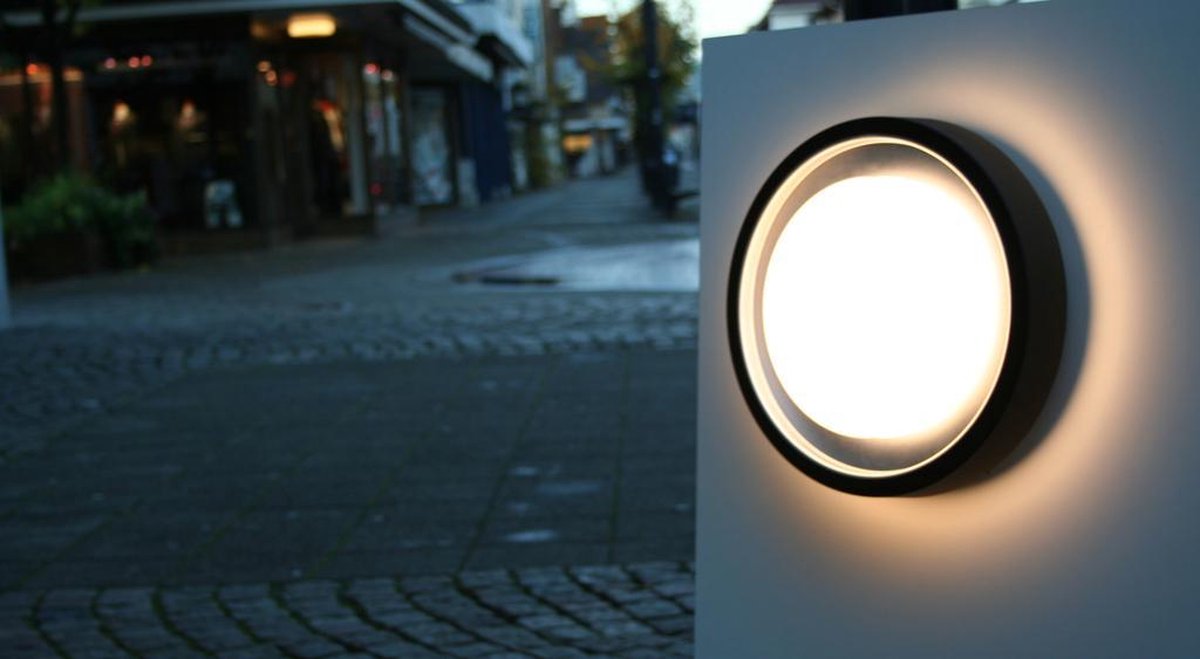

LUTEC Origo WiZ ceiling/wall lamp

GPIO Pinout

PinFunction
GPIO13WW Output
GPIO5CW Output
GPIO25Red Output
GPIO26Green Output
GPIO27Blue Output

Basic Configuration

esphome:
  name: lutec-origo
  friendly_name: Lutec Origo


esp32:
  board: esp32dev
  framework:
    type: arduino


output:
  - platform: ledc
    id: output_red
    pin: GPIO25
    frequency: 24000 Hz
  - platform: ledc
    id: output_green
    pin: GPIO26
    frequency: 24000 Hz
  - platform: ledc
    id: output_blue
    pin: GPIO27
    frequency: 24000 Hz
  - platform: ledc
    id: output_warm_white
    pin: GPIO2
    frequency: 24000 Hz
  - platform: ledc
    id: output_cool_white
    pin: GPIO4
    frequency: 24000 Hz


light:
  - platform: rgbww
    name: "WC+RGB Light"
    red: output_red
    green: output_green
    blue: output_blue
    warm_white: output_warm_white
    cold_white: output_cool_white
    cold_white_color_temperature: 6500K
    warm_white_color_temperature: 2700K
    constant_brightness: true
    default_transition_length: 1s
    gamma_correct: 2.8
