LEDVANCE SMART WIFI B40 4,9W 230V RGBW FR E14

LEDVANCE SMART WIFI B40 based on BK7231T chip (WB2L) and using BP1658CJ led driver. Can be flashed with esphome kickstart via tuya-cloudcutter. Profile name: 1.0.3 - BK7231T / oem_bk7231s_light_ty_oldDp.

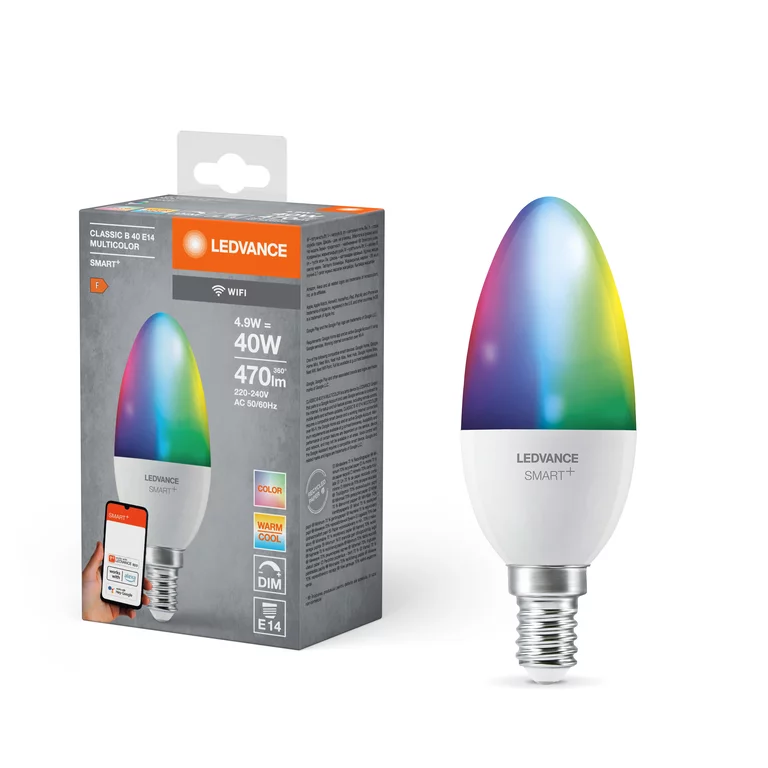

Product Image

GPIO Pinout

Pin	Function
GPIO8	BP1658CJ Data Pin
GPIO9	BP1658CJ Clock Pin

Basic Configuration

substitutions:
  devicename: ledvance-e14

esphome:
  name: $devicename
  friendly_name: ledvance-e14

bk72xx:
  board: generic-bk7231t-qfn32-tuya

logger:

web_server:

captive_portal:

mdns:

api:
  password: ""

ota:
  password: ""

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:

button:
  - platform: restart
    name: Restart

debug:
  update_interval: 30s

text_sensor:
  - platform: debug
    reset_reason:
      name: Reset Reason

sensor:
  - platform: uptime
    name: Uptime

bp1658cj:
  clock_pin: P9
  data_pin: P8
  max_power_color_channels: 4
  max_power_white_channels: 3

output:
  - platform: bp1658cj
    id: output_red
    channel: 2
  - platform: bp1658cj
    id: output_green
    channel: 1
  - platform: bp1658cj
    id: output_blue
    channel: 0
  - platform: bp1658cj
    id: output_cold
    channel: 4
  - platform: bp1658cj
    id: output_warm
    channel: 3

light:
  - platform: rgbww
    id: light_rgbww
    name: Light
    color_interlock: true
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    red: output_red
    green: output_green
    blue: output_blue
    cold_white: output_cold
    warm_white: output_warm
