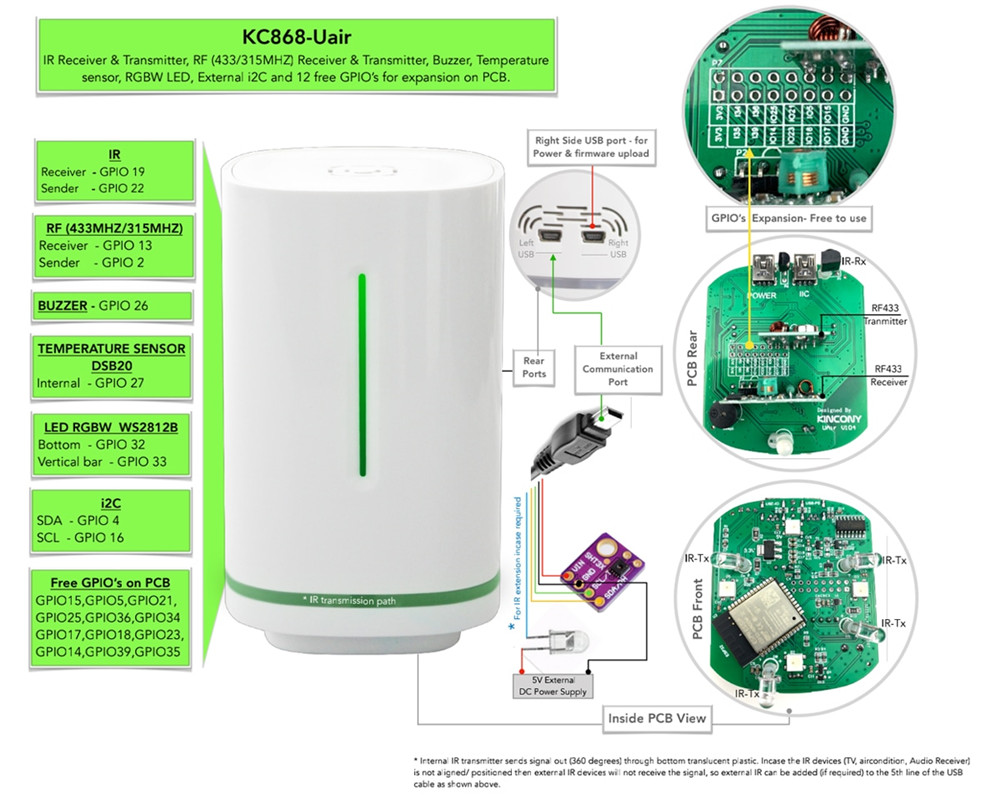

KinCony KC868-Uair

GPIO Pinout

Pin	Function
GPIO2	433MHz Transmitter
GPIO13	433MHz Receiver
GPIO19	IR Receiver
GPIO22	IR Transmitter
GPIO26	Buzzer
GPIO4	IIC_SDA
GPIO16	IIC_SCL
GPIO27	DS18B20 Temperature sensor
GPIO32	4*WS2812B LED Bottom
GPIO33	1*WS2812B LED vertical bar
GPIO15	Free GPIO
GPIO5	Free GPIO
GPIO21	Free GPIO
GPIO25	Free GPIO
GPIO36	Free GPIO
GPIO34	Free GPIO
GPIO17	Free GPIO
GPIO18	Free GPIO
GPIO23	Free GPIO
GPIO14	Free GPIO
GPIO39	Free GPIO
GPIO35	Free GPIO

Additional pinout/design details

Basic Configuration

# Basic Config
esphome:
  name: KC868-Uair

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "hx8eSqbwjWs9/2bK0qK55QfTIOpI4gCfzLOeaOXZMaU="

i2c:
  sda: 4
  scl: 16
  scan: true
  id: bus_a

# Example configuration entry
one_wire:
  - pin: GPIO27
    update_interval: 15s

# Individual sensors
sensor:
  - platform: dallas_temp
    address: 0xC000000004D81528
    name: "internal Temperature"

  # Example configuration entry
  - platform: sht3xd
    temperature:
      name: "extend Temperature"
    humidity:
      name: "extend Humidity"
    address: 0x44
    update_interval: 15s

light:
  - platform: esp32_rmt_led_strip
    chipset: ws2812
    pin: GPIO32 # Pin Define connected with LED strip
    num_leds: 4 #LEDs number
    rgb_order: GRB
    name: "Uair-Bottom-LED"
    effects:
      - addressable_rainbow: ##defined 7 effects styles
      - addressable_color_wipe:
      - addressable_scan:
      - addressable_twinkle:
      - addressable_random_twinkle:
      - addressable_fireworks:
      - addressable_flicker:

  - platform: esp32_rmt_led_strip
    chipset: ws2812
    pin: GPIO33 # Pin Define connected with LED strip
    num_leds: 1 #LEDs number
    rgb_order: RGB
    name: "Uair-VVertical-LED"
    effects:
      - addressable_rainbow: ##defined 7 effects styles
      - addressable_color_wipe:
      - addressable_scan:
      - addressable_twinkle:
      - addressable_random_twinkle:
      - addressable_fireworks:
      - addressable_flicker:
