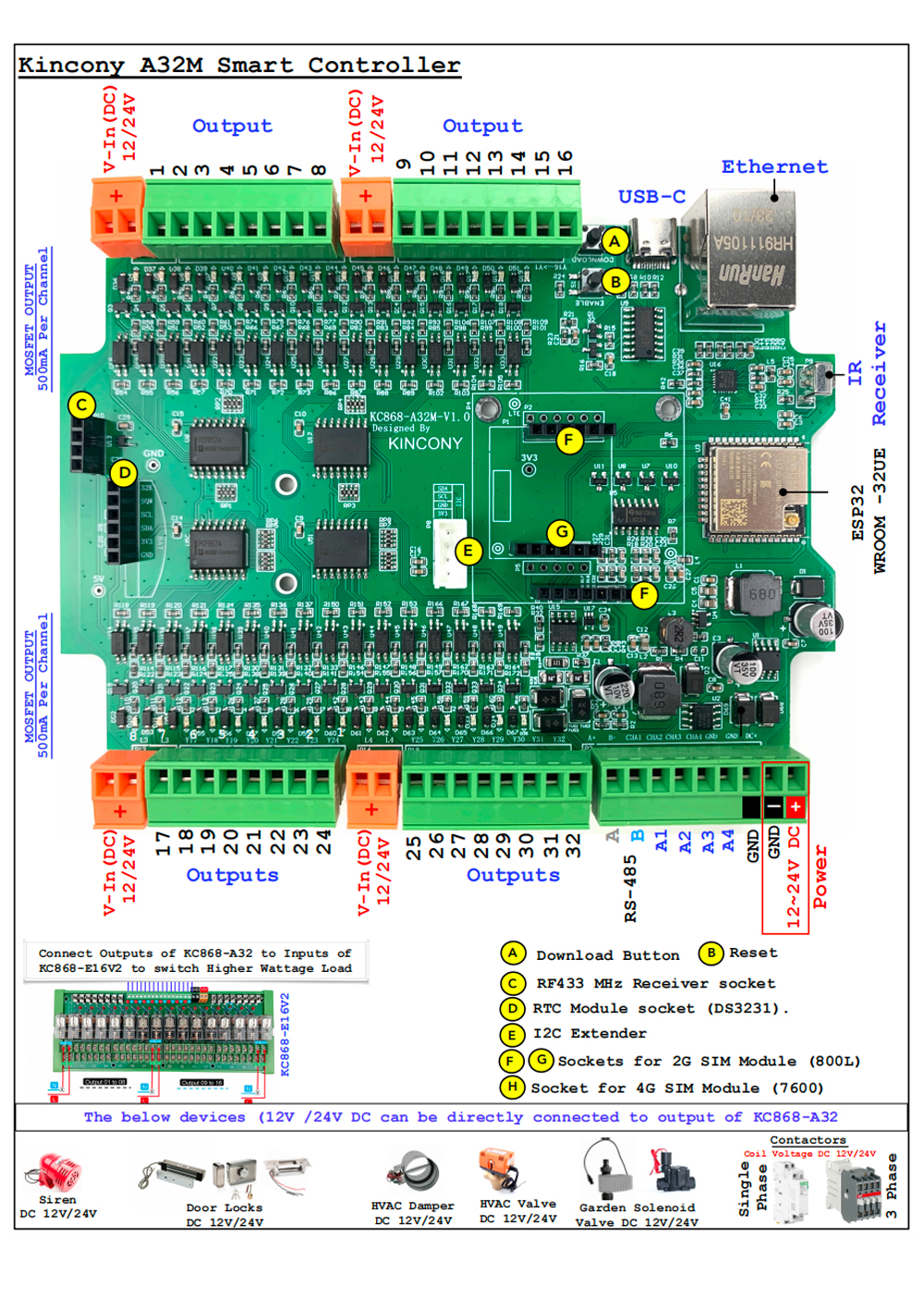

KinCony KC868-A32M

GPIO Pinout

Pin	Function
GPIO34	ANALOG_A1
GPIO35	ANALOG_A2
GPIO39	ANALOG_A3
GPIO36	ANALOG_A4
GPIO4	IIC_SDA
GPIO5	IIC_SCL
GPIO14	433MHz Receiver
GPIO16	IR Receiver
GPIO33	RS485_RXD
GPIO32	RS485_TXD

Additional pinout/design details

Basic Configuration

# Basic Config
esphome:
  name: KC868-A32M

esp32:
  board: esp32dev

# Enable logging
logger:

# Enable Home Assistant API
api:

# Example configuration entry
i2c:
  - id: bus_a
    sda: 4
    scl: 5
    scan: true

# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

# Example configuration entry
pcf8574:
  - id: "pcf8574_hub_out_1" # for output channel 1-8
    i2c_id: bus_a
    address: 0x23

  - id: "pcf8574_hub_out_2" # for output channel 9-16
    i2c_id: bus_a
    address: 0x24

  - id: "pcf8574_hub_out_3" # for output channel 17-24
    i2c_id: bus_a
    address: 0x25

  - id: "pcf8574_hub_out_4" # for output channel 25-32
    i2c_id: bus_a
    address: 0x26

# Individual outputs
switch:
  - platform: gpio
    name: "a32m-light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light17"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light18"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light19"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light20"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light21"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light22"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light23"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light24"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light25"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light26"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light27"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light28"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light29"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light30"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light31"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light32"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 7
      mode: OUTPUT
      inverted: true

# Example configuration entry
sensor:
  - platform: adc
    pin: 34
    name: "a32m-analog-1"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 35
    name: "a32m-analog-2"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 39
    name: "a32m-analog-3"
    update_interval: 10s
    attenuation: 12db

  - platform: adc
    pin: 36
    name: "a32m-analog-4"
    update_interval: 10s
    attenuation: 12db
