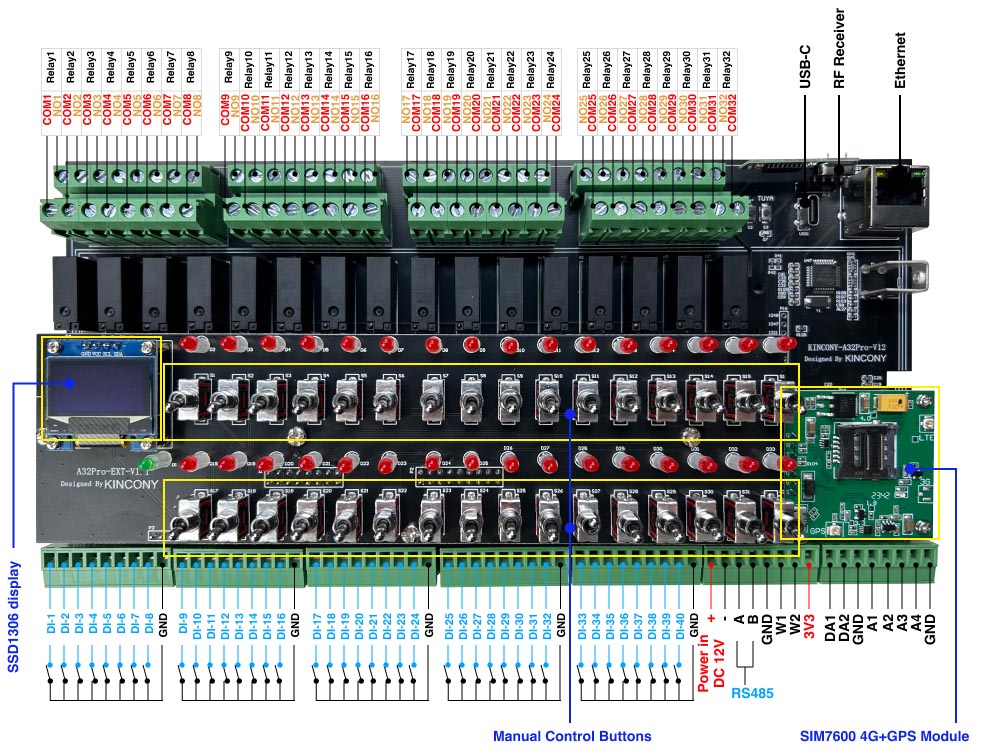

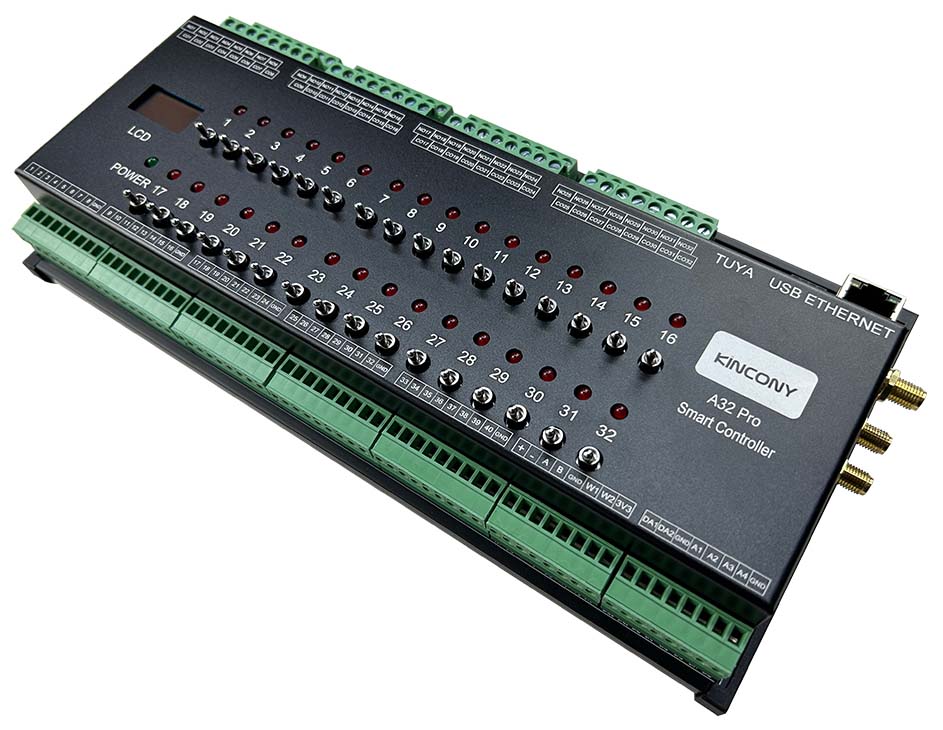

esphome:
  name: a32-pro-arduino
  friendly_name: a32-Pro-arduino

esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino

# Enable logging
# logger:

# Enable Home Assistant API
api:

ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO44
  miso_pin: GPIO40
  cs_pin: GPIO39
  interrupt_pin: GPIO41
  reset_pin: GPIO43

i2c:
  - id: bus_a
    sda: 11
    scl: 10
    scan: true
    frequency: 400kHz

xl9535:
  - id: xl9535_hub_out1 # for output channel 1-16
    address: 0x21
  - id: xl9535_hub_out2 # for output channel 17-32
    address: 0x22
  - id: xl9535_hub_in1 # for input channel 1-16
    address: 0x24
  - id: xl9535_hub_in2 # for input channel 17-32
    address: 0x25

pcf8574:
  - id: "pcf8574_in_3" # for input channel 33-40
    address: 0x23

switch:
  - platform: gpio
    pin: 45
    name: "LED"

  - platform: gpio
    name: A32 Pro Switch01
    id: "a32_pro_switch01"
    pin:
      xl9535: xl9535_hub_out1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch02
    id: "a32_pro_switch02"
    pin:
      xl9535: xl9535_hub_out1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch03
    id: "a32_pro_switch03"
    pin:
      xl9535: xl9535_hub_out1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch04
    id: "a32_pro_switch04"
    pin:
      xl9535: xl9535_hub_out1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch05
    id: "a32_pro_switch05"
    pin:
      xl9535: xl9535_hub_out1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch06
    id: "a32_pro_switch06"
    pin:
      xl9535: xl9535_hub_out1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch07
    id: "a32_pro_switch07"
    pin:
      xl9535: xl9535_hub_out1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch08
    id: "a32_pro_switch08"
    pin:
      xl9535: xl9535_hub_out1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch09
    id: "a32_pro_switch09"
    pin:
      xl9535: xl9535_hub_out1
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch10
    id: "a32_pro_switch10"
    pin:
      xl9535: xl9535_hub_out1
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch11
    id: "a32_pro_switch11"
    pin:
      xl9535: xl9535_hub_out1
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch12
    id: "a32_pro_switch12"
    pin:
      xl9535: xl9535_hub_out1
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch13
    id: "a32_pro_switch13"
    pin:
      xl9535: xl9535_hub_out1
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch14
    id: "a32_pro_switch14"
    pin:
      xl9535: xl9535_hub_out1
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch15
    id: "a32_pro_switch15"
    pin:
      xl9535: xl9535_hub_out1
      number: 16
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch16
    id: "a32_pro_switch16"
    pin:
      xl9535: xl9535_hub_out1
      number: 17
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch17
    id: "a32_pro_switch17"
    pin:
      xl9535: xl9535_hub_out2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch18
    id: "a32_pro_switch18"
    pin:
      xl9535: xl9535_hub_out2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch19
    id: "a32_pro_switch19"
    pin:
      xl9535: xl9535_hub_out2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch20
    id: "a32_pro_switch20"
    pin:
      xl9535: xl9535_hub_out2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch21
    id: "a32_pro_switch21"
    pin:
      xl9535: xl9535_hub_out2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch22
    id: "a32_pro_switch22"
    pin:
      xl9535: xl9535_hub_out2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch23
    id: "a32_pro_switch23"
    pin:
      xl9535: xl9535_hub_out2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch24
    id: "a32_pro_switch24"
    pin:
      xl9535: xl9535_hub_out2
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch25
    id: "a32_pro_switch25"
    pin:
      xl9535: xl9535_hub_out2
      number: 10
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch26
    id: "a32_pro_switch26"
    pin:
      xl9535: xl9535_hub_out2
      number: 11
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch27
    id: "a32_pro_switch27"
    pin:
      xl9535: xl9535_hub_out2
      number: 12
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch28
    id: "a32_pro_switch28"
    pin:
      xl9535: xl9535_hub_out2
      number: 13
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch29
    id: "a32_pro_switch29"
    pin:
      xl9535: xl9535_hub_out2
      number: 14
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch30
    id: "a32_pro_switch30"
    pin:
      xl9535: xl9535_hub_out2
      number: 15
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch31
    id: "a32_pro_switch31"
    pin:
      xl9535: xl9535_hub_out2
      number: 16
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: A32 Pro Switch32
    id: "a32_pro_switch32"
    pin:
      xl9535: xl9535_hub_out2
      number: 17
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: A32 Pro DI01
    id: "a32_pro_di01"
    pin:
      xl9535: xl9535_hub_in1
      number: 0
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI02
    id: "a32_pro_di02"
    pin:
      xl9535: xl9535_hub_in1
      number: 1
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI03
    id: "a32_pro_di03"
    pin:
      xl9535: xl9535_hub_in1
      number: 2
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI04
    id: "a32_pro_di04"
    pin:
      xl9535: xl9535_hub_in1
      number: 3
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI05
    pin:
      xl9535: xl9535_hub_in1
      number: 4
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI06
    pin:
      xl9535: xl9535_hub_in1
      number: 5
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI07
    pin:
      xl9535: xl9535_hub_in1
      number: 6
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI08
    pin:
      xl9535: xl9535_hub_in1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: A32 Pro DI09
    pin:
      xl9535: xl9535_hub_in1
      number: 10
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI10
    pin:
      xl9535: xl9535_hub_in1
      number: 11
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI11
    pin:
      xl9535: xl9535_hub_in1
      number: 12
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI12
    pin:
      xl9535: xl9535_hub_in1
      number: 13
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI13
    pin:
      xl9535: xl9535_hub_in1
      number: 14
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI14
    pin:
      xl9535: xl9535_hub_in1
      number: 15
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI15
    pin:
      xl9535: xl9535_hub_in1
      number: 16
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI16
    pin:
      xl9535: xl9535_hub_in1
      number: 17
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "A32 Pro TMP1"
    pin:
      number: 1
      inverted: true

  - platform: gpio
    name: "A32 Pro TMP2"
    pin:
      number: 2
      inverted: true

  - platform: gpio
    name: "A32 Pro DL"
    pin:
      number: 0
      inverted: true

  - platform: gpio
    name: "A32 Pro DTUYA"
    pin:
      number: 21
      inverted: true

  - platform: gpio
    name: A32 Pro DI17
    pin:
      xl9535: xl9535_hub_in2
      number: 0
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI18
    pin:
      xl9535: xl9535_hub_in2
      number: 1
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI19
    pin:
      xl9535: xl9535_hub_in2
      number: 2
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI20
    pin:
      xl9535: xl9535_hub_in2
      number: 3
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI21
    pin:
      xl9535: xl9535_hub_in2
      number: 4
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI22
    pin:
      xl9535: xl9535_hub_in2
      number: 5
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI23
    pin:
      xl9535: xl9535_hub_in2
      number: 6
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI24
    pin:
      xl9535: xl9535_hub_in2
      number: 7
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI25
    pin:
      xl9535: xl9535_hub_in2
      number: 10
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI26
    pin:
      xl9535: xl9535_hub_in2
      number: 11
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI27
    pin:
      xl9535: xl9535_hub_in2
      number: 12
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI28
    pin:
      xl9535: xl9535_hub_in2
      number: 13
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI29
    pin:
      xl9535: xl9535_hub_in2
      number: 14
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI30
    pin:
      xl9535: xl9535_hub_in2
      number: 15
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI31
    pin:
      xl9535: xl9535_hub_in2
      number: 16
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI32
    pin:
      xl9535: xl9535_hub_in2
      number: 17
      mode: INPUT
      inverted: true

  - platform: gpio
    name: A32 Pro DI33
    pin:
      pcf8574: pcf8574_in_3
      number: 0
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI34
    pin:
      pcf8574: pcf8574_in_3
      number: 1
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI35
    pin:
      pcf8574: pcf8574_in_3
      number: 2
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI36
    pin:
      pcf8574: pcf8574_in_3
      number: 3
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI37
    pin:
      pcf8574: pcf8574_in_3
      number: 4
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI38
    pin:
      pcf8574: pcf8574_in_3
      number: 5
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI39
    pin:
      pcf8574: pcf8574_in_3
      number: 6
      mode: INPUT
      inverted: true
  - platform: gpio
    name: A32 Pro DI40
    pin:
      pcf8574: pcf8574_in_3
      number: 7
      mode: INPUT
      inverted: true

gp8403:
  id: my_gp8403
  voltage: 10V

output:
  - platform: gp8403
    id: gp8403_output_1
    gp8403_id: my_gp8403
    channel: 0
  - platform: gp8403
    id: gp8403_output_2
    gp8403_id: my_gp8403
    channel: 1

light:
  - platform: monochromatic
    name: "A32 Pro-DAC-0"
    id: a32_pro_dac_0
    output: gp8403_output_1
    gamma_correct: 1.0

  - platform: monochromatic
    name: "A32 Pro-DAC-1"
    id: a32_pro_dac_1
    output: gp8403_output_2
    gamma_correct: 1.0

sensor:
  - platform: adc
    pin: 7
    name: "A32 Pro A1 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      - lambda: |-
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
          return 0;
          } else {
          return x * 1.51;
          }
  - platform: adc
    pin: 6
    name: "A32 Pro A2 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      # - multiply: 1.51515
      - lambda: |-
          if (x >= 3.11) {
          return x * 1.60256;
          } else if (x <= 0.15) {
          return 0;
          } else {
          return x * 1.51;
          }
  - platform: adc
    pin: 5
    name: "A32 Pro A3 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666
  - platform: adc
    pin: 4
    name: "A32 Pro A4 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666

web_server:
  port: 80

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    i2c_id: bus_a
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "A32 Pro");
