Gosund WP9 Power Strip

Gosund WP9 Power Strip

Device Type: plug
Electrical Standard: us
Board: esp8266

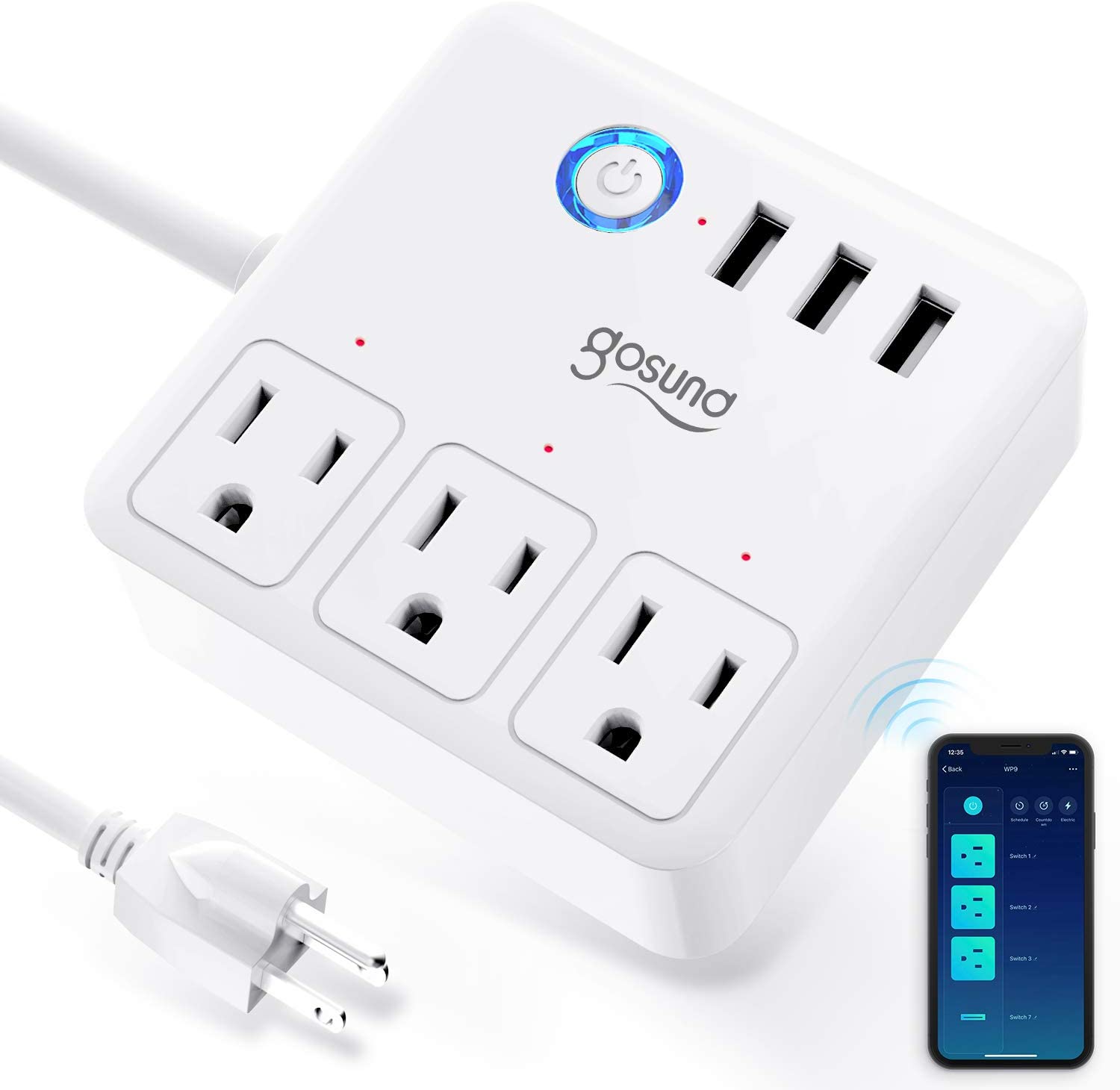

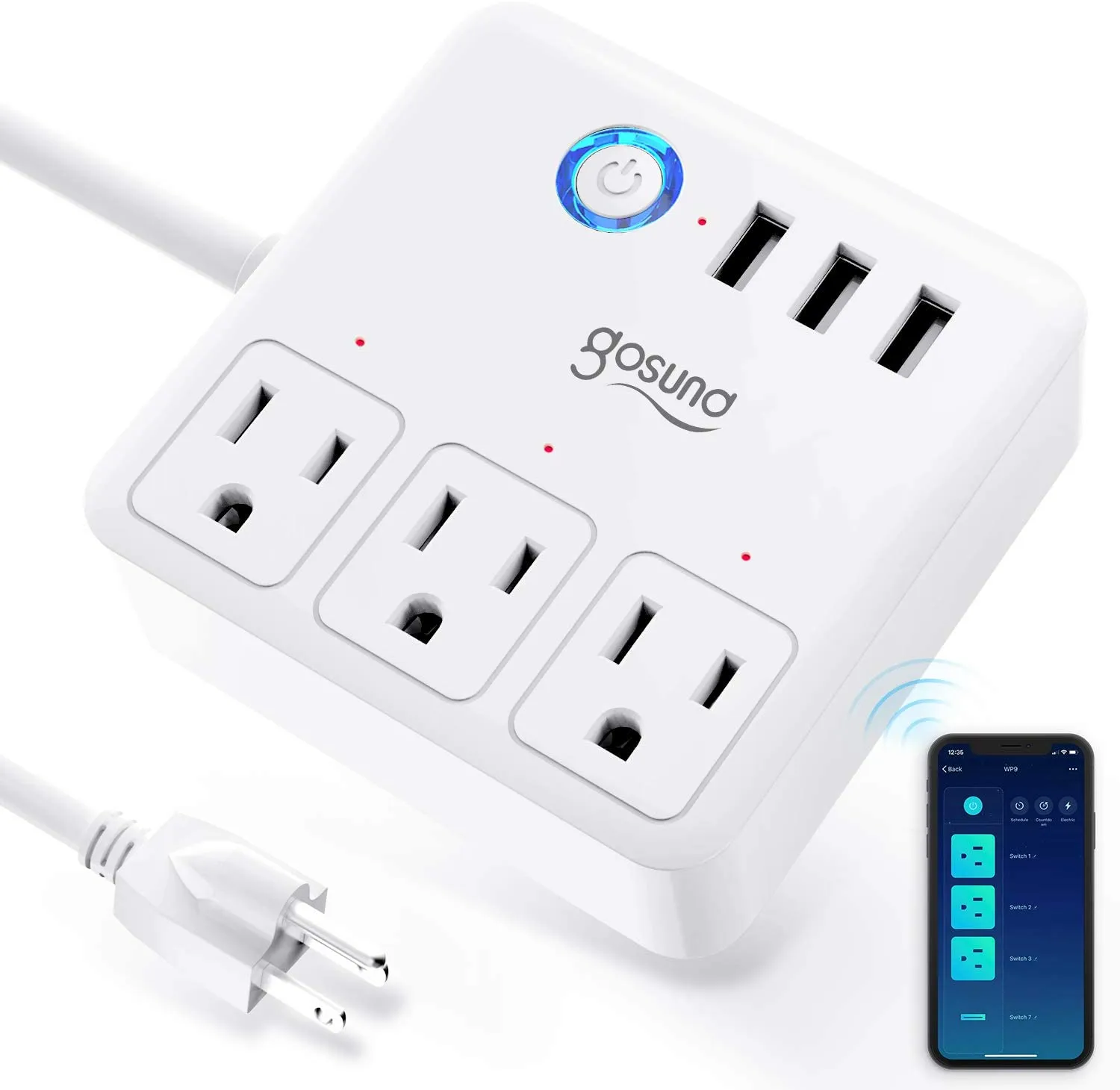

Product Image

Gosund WP9 Power Strip

Gosund Smart Power Strip Works with Alexa/Google Home, Smart Plugs WiFi Surge Protector Multi Outlet Extender, 10A 3 USB/Charging Ports for Home Office Desk Tablets, 4ft Extension Cord, White

GPIO Pinout

PinFunction
GPIO00Ledi
GPIO01Led4
GPIO02Led3
GPIO03Led3
GPIO05Relay1
GPIO12Relay3
GPIO13Relay4
GPIO14Relay2
GPIO16Button1

Basic Configuration

substitutions:
  name: power_strip
  upper_name: Power Strip
  platform: ESP8266
  board: esp01_1m


esphome:
  name: $name
  platform: $platform
  board: $board


<<: !include ../secrets.yaml


binary_sensor:
  - platform: gpio
    pin:
      number: GPIO16
      mode: INPUT_PULLUP
      inverted: yes
    name: "${upper_name} Power Button"
    id: "${name}_power_button"
    on_press:
      then:
        - switch.toggle: "${name}_usb"
        - switch.toggle: "${name}_switch1"
        - switch.toggle: "${name}_switch2"
        - switch.toggle: "${name}_switch3"
switch:
  - platform: gpio
    name: "${upper_name} Switch1"
    id: "${name}_switch1"
    pin: GPIO14
    restore_mode: "RESTORE_DEFAULT_ON"
  - platform: gpio
    name: "${upper_name} Switch2"
    id: "${name}_switch2"
    pin: GPIO12
    restore_mode: "RESTORE_DEFAULT_ON"
  - platform: gpio
    name: "${upper_name} Switch3"
    id: "${name}_switch3"
    pin: GPIO13
    restore_mode: "RESTORE_DEFAULT_ON"
  - platform: gpio
    name: "${upper_name} usb"
    id: "${name}_usb"
    pin: GPIO05
    restore_mode: "RESTORE_DEFAULT_ON"
    on_turn_on:
      - switch.turn_on: led
    on_turn_off:
      - switch.turn_off: led
  - platform: gpio
    id: led
    pin: GPIO0
    inverted: no

Newer WP9s that are based on Tuya with a non-ESP SOC

You can opt to swapout the chip and replace with an ESP, but this is difficult and tedious. I have done this with success, however I have since found LocalTuya which may be a better option for you. It is still a bit tedious and you need to jump through some initial hoops, but you don't have to crack open and modify the WP9.
reference: https://github.com/rospogrigio/localtuya
