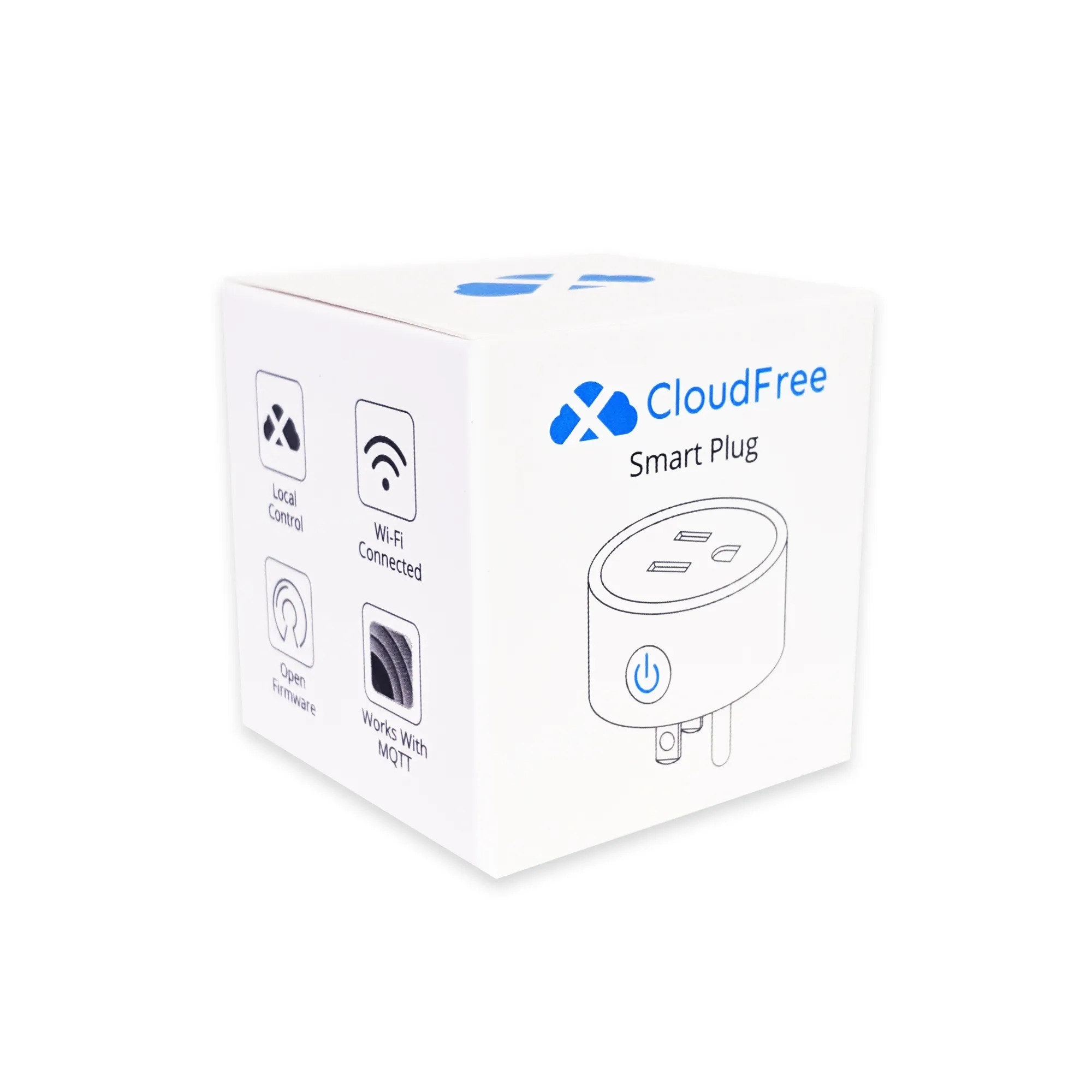

CloudFree CF-P1

Model reference: CF-P1

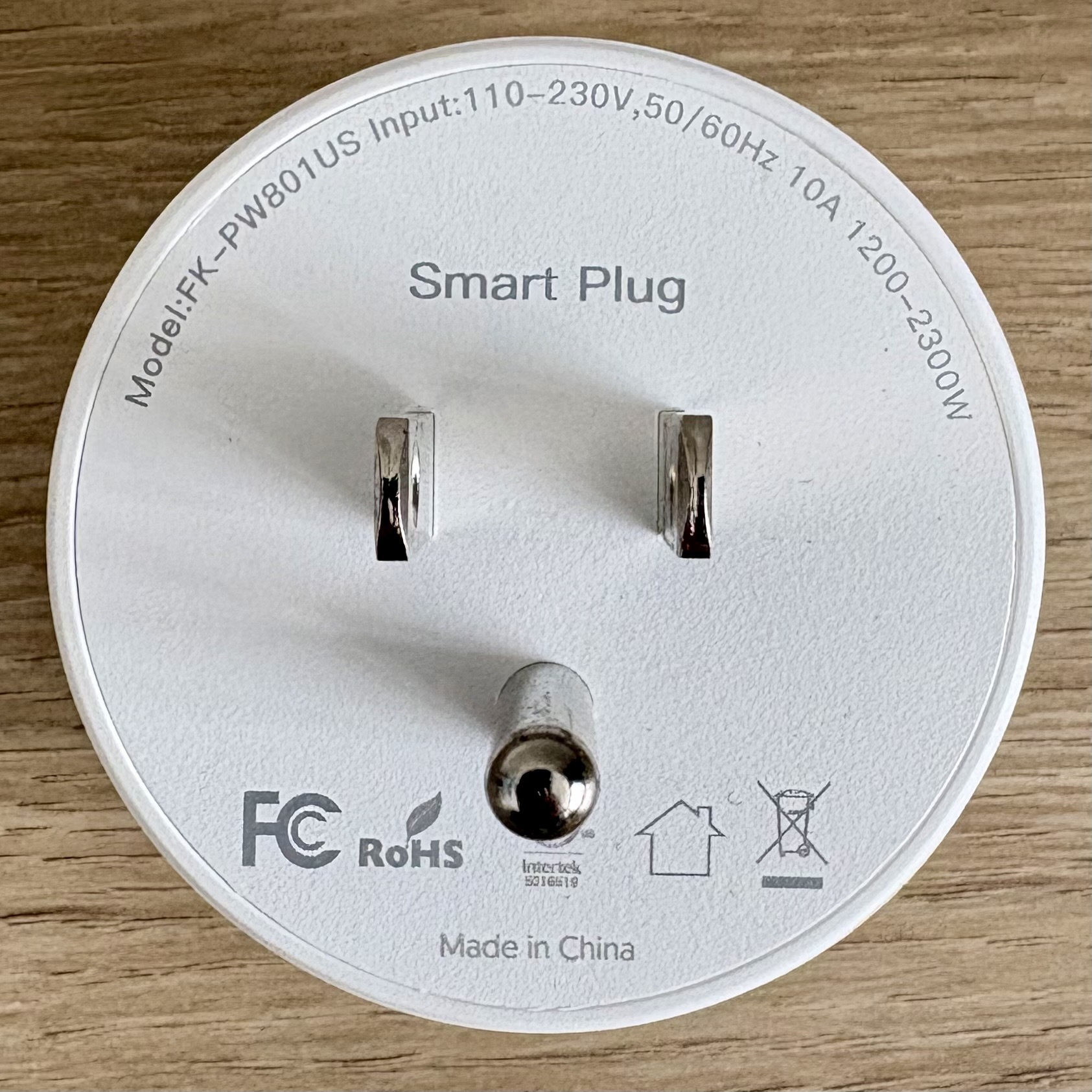

Equivalent devices:

• FrankEver FK-PW801US

Manufacturer: CloudFree

GPIO Pinout

Pin	Function
GPIO02	Blue LED (Inverted: true)
GPIO13	Push Button
GPIO15	Relay

Basic Config

substitutions:
  device_name: cloudfree-cf-p1
  friendly_name: CloudFree CF-P1
  device_description: CloudFree smart plug with button and blue led.

esphome:
  name: ${device_name}
  comment: ${device_description}

esp8266:
  board: esp01_1m

wifi:
  # Enable fallback hotspot (captive portal) for WiFi configuration
  ap:
    ssid: ${friendly_name}

captive_portal:

# Enable logging
logger:

# Enable Home Assistant API
api:

# Enable OTA
ota:

binary_sensor:
  - platform: gpio
    device_class: power
    id: button
    pin:
      number: GPIO13
      inverted: true
      mode: INPUT_PULLUP
    on_press:
      - switch.toggle: relay

switch:
  - platform: gpio
    name: Relay
    pin: GPIO15
    id: relay
    on_turn_on:
      - output.turn_on: led
    on_turn_off:
      - output.turn_off: led

output:
  - platform: gpio
    id: led
    pin:
      number: GPIO02
      inverted: true
