ViragePlug KS-604S

ViragePlug KS-604S

Device Type: plug
Electrical Standard: us

Virage Laboratories

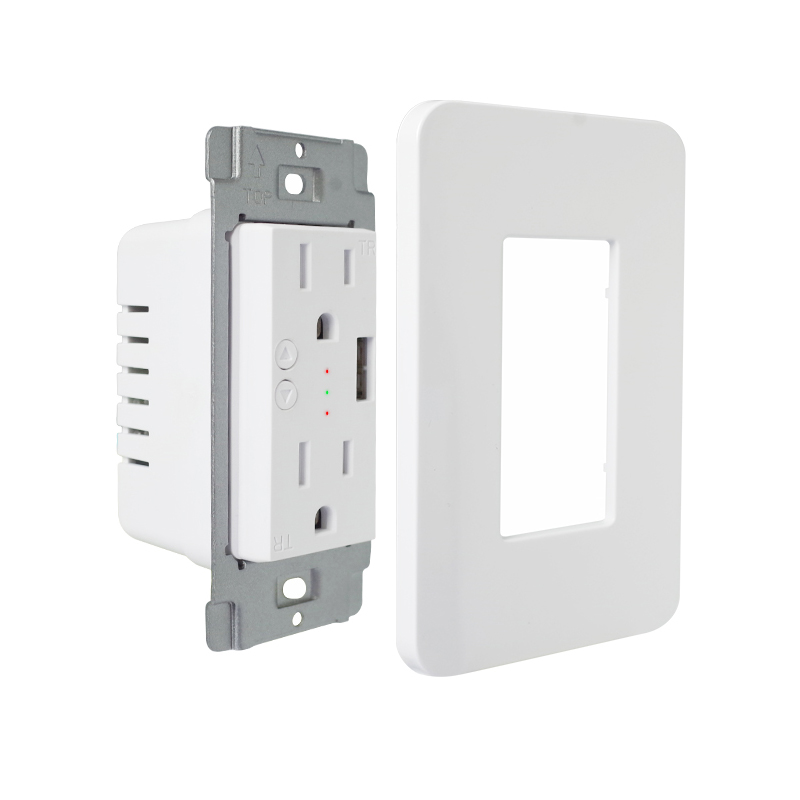

KS-604S Outlet image

General Notes

This 120V wall outlet comes with a customized Tasmota pre-installed, and has two independently switchable 120V outlets and a switchable USB outlet.

It is optimized for Home Assistant, Domoticz and OpenHab but you can easily flash an ESPHome binary using the Firmware Upgrade function in the built-in web interface.

GPIO Pinout (Per top to bottom when installed)

GPIO3Button 1
GPIO4LED 1 (inverted)
GPIO5Button 2
GPIO12Relay 2
GPIO13Relay 1
GPIO14LED 2 (inverted)
GPIO15Relay 3
