TEMT6000

Device Type: sensor

Electrical Standard: global

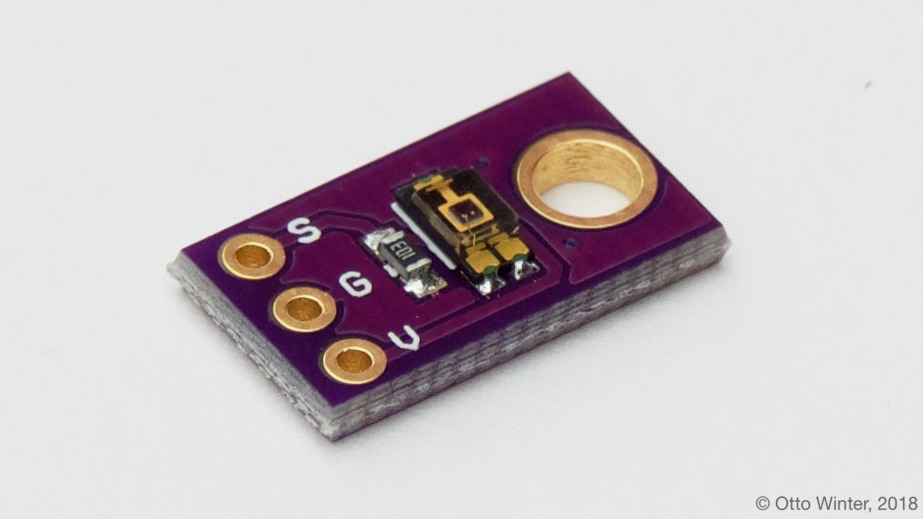

The TEMT6000 is a simple and cheap ambient light sensor. The sensor itself changes its resistance based on how much light hits the sensor. In order for us to read this resistance the breakout boards you can buy these chips on often have a small constant value resistor and three pins: GND, VCC and SIG. Connect VCC to 3.3V, GND to GND and SIG to any available analog pin.

To get the brightness the sensor measures, we then simply have to measure the voltage on the SIG (also called OUT) pin using adc and convert those voltage measurements to illuminance values in lux using a formula:

Copy
sensor:
  - platform: adc
    pin: A0
    name: "TEMT6000 Illuminance"
    device_class: illuminance
    unit_of_measurement: lx
    filters:
      - lambda: |-
          return (x / 10000.0) * 2000000.0;

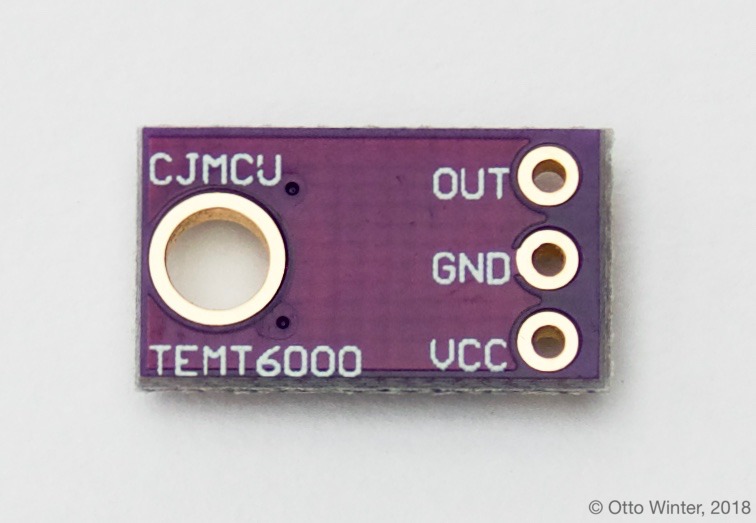

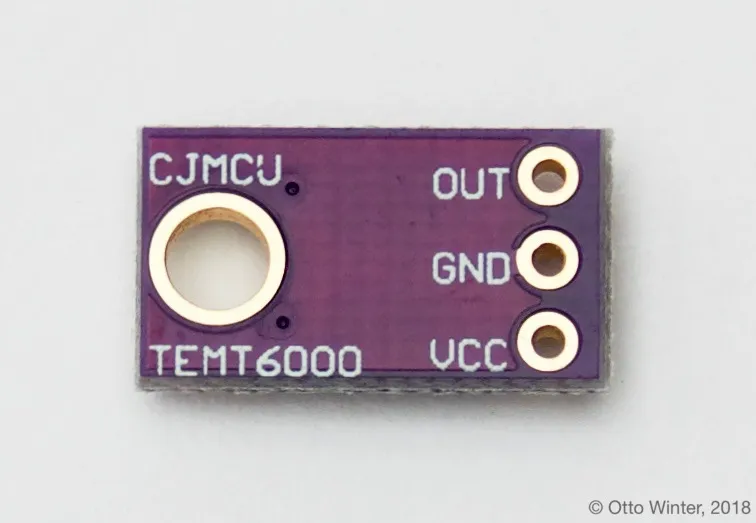

Pins on the TEMT6000. Connect OUT to an ADC pin, GND to GND, and VCC to 3.3V.

Formula Explanation

To get the illuminance in lux, we first need to convert the measured voltage to the current flowing across the TEMT6000 sensor. This current is also equal to the current flowing across the 10kΩ resistor in the voltage divider circuit, which is I = adc_value/10000kΩ.

The datasheet for the TEMT6000 specifies a proportional correlation between current and illuminance: Every 2 µA of current correlates to 1 lx in the illuminance.

Note

The default voltage range of the ADC for the ESP8266 and ESP32 are from 0 to 1.0V. So you won\'t be able to measure any value above 200 lx using the default setup.

For the ESP32, you have the option of setting a Voltage Attenuation (adc-esp32_attenuation) (note that the formula doesn\'t need to be adjusted if you set an attenuation, as the value x is automatically converted to volts).

For the ESP8266, you unfortunately need to tinker with the hardware a bit to decrease the voltage a bit. So one option would be to create another voltage divider on the SIG pin to divide the analog voltage by a constant value.

See Also

• TEMT6000 datasheet
