Renke RS-FXJT-N01 Wind direction meter

Renke RS-FXJT-N01 Wind direction meter

Device Type: sensor
Electrical Standard: global

General Notes

The Renke RS-FXJT-N01 Wind direction meter is sold in four versions:

  • RS485 digital ModBUS output
  • 0-5V analog voltage output
  • 0-10V analog voltage output
  • 4-20mA analog current output

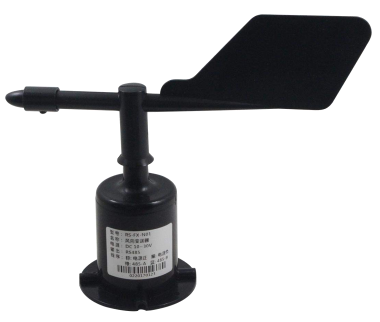

RS-FXJT-N01 Wind direction meter

Parameters:

  • Measurement range: 8 directions
  • DC power supply: 10~30V DC

Note: there's an arrow on the base of the unit, make sure you point that to the North when fixing it to its final location.

Configuration presented here is for the RS485 digital ModBUS version.

Wiring

The cable coming out through the bottom of the unit has the folling pinout:

  • Brown: positive power supply
  • Black: negative power supply and GND
  • Green: RS485-A
  • Blue: RS485-B

ModBUS Parameters

Wire up a an RS485 transceiver to an ESP32 to interface with the device using ESPHome's Modbus Component.

Connection parameters:

  • Baud Rate: 4800 (default), supports 2400 and 9600
  • Data bit length: 8
  • Parity check: None
  • Stop bit: 1
  • Device address: 1
  • Register address for direction gear: 0 (values from 0 to 7, representing cardinals)
  • Register address for direction value: 1 (valies from 0 to 360, representing degrees)
  • Registers data type: U_WORD

Basic Configuration

A translation from the numeric values of gear can be done using a template text sensor to show the cardinals textually:

uart:
rx_pin: GPIOXX
tx_pin: GPIOXX
baud_rate: 4800
modbus:
id: modbus1
modbus_controller:
- id: wind_direction_meter
address: 1
modbus_id: modbus1
setup_priority: -10
command_throttle: 200ms
update_interval: 60s
sensor:
- platform: modbus_controller
modbus_controller_id: wind_direction_meter
name: "Wind direction gear"
internal: true
register_type: read
address: 0
value_type: U_WORD
accuracy_decimals: 0
on_value:
- lambda: |-
switch (int(x)) {
case 0:
id(wind_direction_cardinal).publish_state("N"); //North
break;
case 1:
id(wind_direction_cardinal).publish_state("NE"); //North-East
break;
case 2:
id(wind_direction_cardinal).publish_state("E"); //East
break;
case 3:
id(wind_direction_cardinal).publish_state("SE"); //South-East
break;
case 4:
id(wind_direction_cardinal).publish_state("S"); //South
break;
case 5:
id(wind_direction_cardinal).publish_state("SW"); //South-West
break;
case 6:
id(wind_direction_cardinal).publish_state("W"); //West
break;
case 7:
id(wind_direction_cardinal).publish_state("NW"); //North-West
break;
default:
id(wind_direction_cardinal).publish_state(""); //invalid
}
- platform: modbus_controller
modbus_controller_id: wind_direction_meter
name: "Wind direction degree"
icon: mdi:compass-outline
register_type: read
address: 1
value_type: U_WORD
accuracy_decimals: 0
state_class: measurement
unit_of_measurement: "°"
text_sensor:
- platform: template
name: "Wind direction cardinal"
id: wind_direction_cardinal
icon: mdi:compass-rose

Note that the sensor is by default set to ModBUS address 1, so out of the box it's not possible to connect it together with another one (like a RS-FSJT-N01 wind speed anemometer) to the same ESP UART.

The manufacturer offers a helper application for Windows, called 485 Parameter Configuration Tool. The sensor can be connected to the PC with a USB-to-RS485 adapter, and the configuration tool makes it easily possible to change the modbus address to something else, eg. 2 (just type it in the Addr box and press Setup button).

After that it becomes possible to simply connect the sensors in parrallel on the same cable, to a single RS485-TTL transceiver attached to a single UART on the ESP (you need to change the address value in the corresponding modbus_controller entry in the config).
