myStrom WiFi Button

myStrom WiFi Button

Device Type: switch
Electrical Standard: global
Board: esp8266
Difficulty: Disassembly required, 3/5

General Notes

The myStrom WiFi Button is controlled by ESP8266EX.

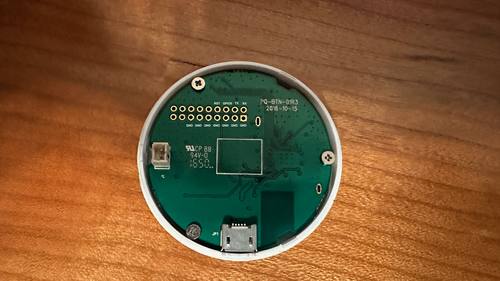

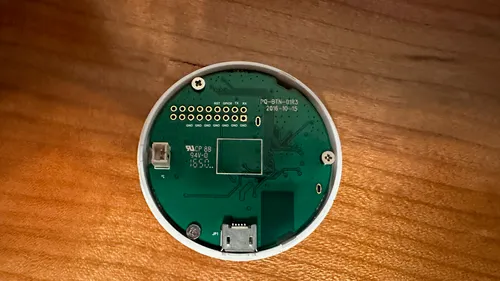

The board exposes a header with all needed connections: alt text

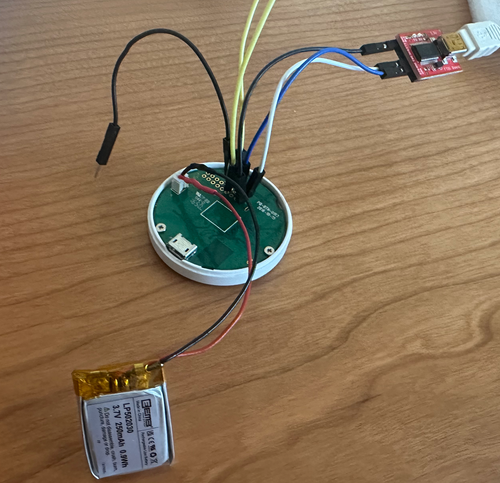

You can solder the wires for the initial flash, but it's not required. I've had success just inserting breadboard pins into the header: alt text

Use board esp_wroom_02 even though this is not a wroom chip. It will allow full use of the button's 2MB flash.

It is designed to be in deep sleep most of the time. It has a very small battery. It won't last very long if it is always running. Pressing the button wakes it up from deep sleep. The best way to use this is with an on_boot trigger at priority 225 - that way wifi is up and you can do an http request or something similar, then go back to sleep. NOTE - If you are using deep sleep, with the button to wake, the first time you press the button it works, but the next sleep is immediately woken up. This is because this device has a few capacitors initially holding the reset high, and the button discharges them. GPIO4 needs to be set high to recharge them, otherwise it thinks the button is still pressed and immediately wakes.

Initial Install

To open the case and do the initial ESPHome flash:

  1. Remove the outer silicone band
  2. Split the case apart with a flat screwdriver on the left side while looking at the lightbulb logo.
    • WARNING - the tabs holding the halves together can break off. However, if they do it's ok - the silicone band will hold them together well enough on its own.
  3. Unplug the battery.
  4. Using a 3.3v FTDI programmer, connect the pins.
    • Only connect GND, RX, TX. Power will come from the battery.
  5. Connect GPIO 0 to GND.
  6. Put a wire in RST but don't connect the other end yet.
  7. Connect the programmer USB to the ESPHome system
  8. Attach the battery.
  9. Momentarily touch the other end of the RST wire to one of the GND pins to reset the esp.
    • Sometimes it works without resetting, but sometimes not. I've found it works every time if you do a reset.
  10. Flash via USB

Subsequent Installs

Flashing over wifi fails if the device is sleeping. To overcome this, press the button to wake at the right time so it is still awake once it gets to the upload step. It may take a few retries to get the timing right.

GPIO Pinout

GPIO5White LED - Low on
GPIO13Green LED - Low on
GPIO14Red LED - Low on
GPIO4Must be set High if using button to wake from deep sleep

Basic Configuration

This configuration is set up to call an http request on boot, then go to sleep. Before/during connection the led pulses white If successful request, it lights the green led. If unsuccessful, it flashes the red led.

name: button
friendly_name: button
- priority: 550
- light.turn_on:
id: white_light
effect: "Connecting"
- priority: 225.0
- output.turn_on: cap_charge
- http_request.get:
- if:
lambda: 'return status_code == 200;'
- light.turn_off:
id: white_light
- light.turn_on:
id: green_light
- delay: 2s
- deep_sleep.enter:
id: deep_sleep_forever
- light.turn_off:
id: white_light
- light.turn_on:
id: red_light
effect: "Error"
- delay: 2s
- deep_sleep.enter:
id: deep_sleep_forever
id: deep_sleep_forever
run_duration: 20s #This is ignored when the deep_sleep.enter is called above
# not setting a sleep duration means sleep forever
useragent: esphome/device
timeout: 10s
board: esp_wroom_02
# Enable logging
# Enable Home Assistant API
key: "***"
password: "***"
ssid: !secret wifi_ssid
password: !secret wifi_password
# Enable fallback hotspot (captive portal) in case wifi connection fails
ssid: "Button Fallback Hotspot"
password: "****"
- platform: esp8266_pwm
pin: GPIO5
id: pwm_white
inverted: true
- platform: esp8266_pwm
pin: GPIO13
id: pwm_green
inverted: true
- platform: esp8266_pwm
pin: GPIO14
id: pwm_red
inverted: true
- platform: gpio
id: cap_charge
pin: GPIO4
- platform: monochromatic
id: white_light
output: pwm_white
name: "White LED"
- pulse:
name: "Connecting"
transition_length: 0.5s
update_interval: 0.5s
min_brightness: 10%
max_brightness: 60%
- platform: monochromatic
id: green_light
output: pwm_green
name: "Green LED"
- platform: monochromatic
id: red_light
output: pwm_red
name: "Red LED"
- pulse:
name: "Error"
transition_length: 0.2s
update_interval: 0.2s
min_brightness: 0%
max_brightness: 100%
