MagicHome RGBW ZJ-WFMN-A V1.1 LED Controller
MagicHome RGBW ZJ-WFMN-A V1.1 LED Controller
Device Type: lightElectrical Standard: globalBoard: esp8266
General Notes

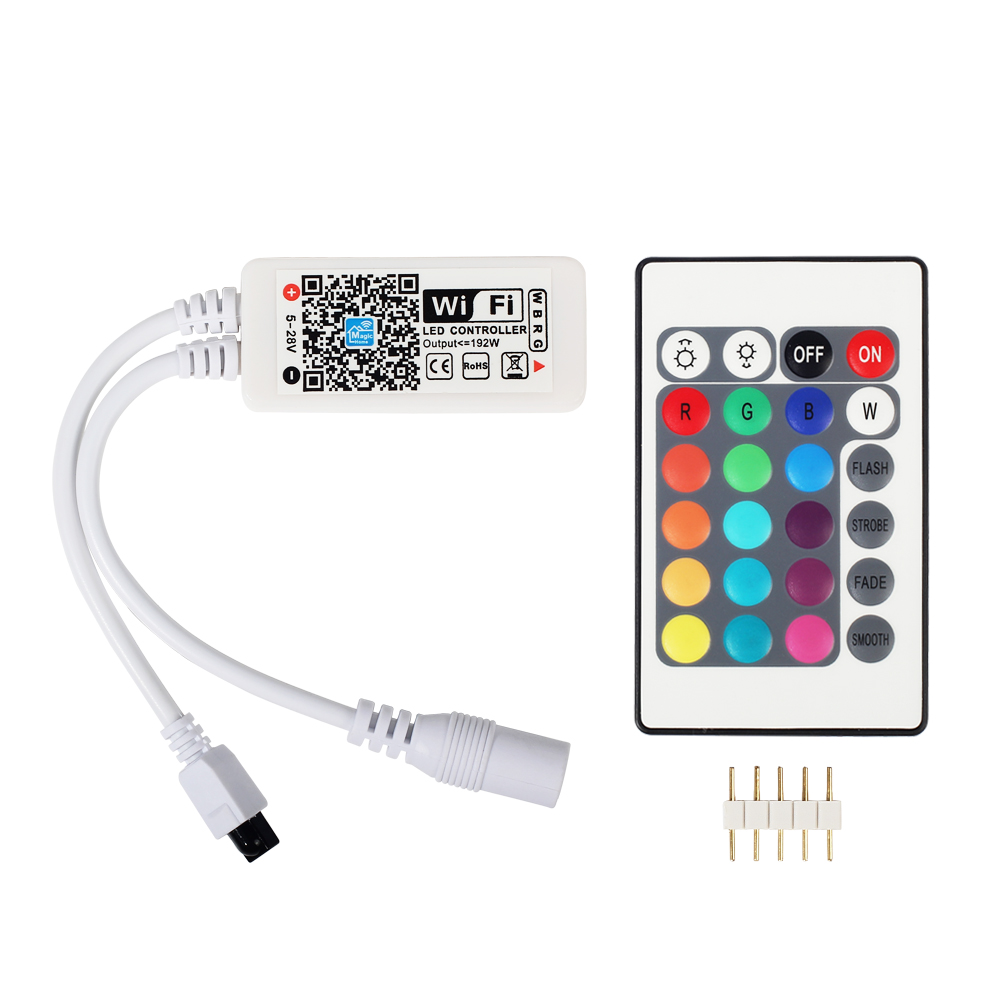

MagicHome RGBW LED controller with Infrared (IR) receiver and remote.
The IR codes are incomplete to map all remote functions to a button. Only ON/OFF, Red, Green, Blue, White, Flash and Strobe effects are implemented in this configuration
:information_source: Please note that MagicHome began to produce devices with BL602 chip instead of ESP. ESPHome is not compatible with BL602. Before buying make sure a controller is using the right chip.
GPIO Pinout
| Pin | Function |
|---|---|
| GPIO4 | IR Receiver |
| GPIO5 | Green Channel |
| GPIO12 | Red Channel |
| GPIO13 | Blue Channel |
| GPIO15 | White Channel |
Basic Configuration
# Basic Config
substitutions: device_name: led_strip device_description: RGBW LED Strip with IR remote behind television. friendly_name: LED strip behind television
esphome: name: ${device_name} comment: ${device_description} platform: ESP8266 board: esp01_1m
wifi: ssid: !secret wifi_ssid password: !secret wifi_password
ap: #since we listed an SSID above, this AP mode will only enable if no WiFi connection could be made ssid: ${friendly_name}_AP password: !secret wifi_password
captive_portal:
# Enable logginglogger: baudrate: 0 #Disable UART logging
# Enable Home Assistant APIapi:
ota:
# Enable web serverweb_server: port: 80
remote_receiver: pin: GPIO4 dump: all
binary_sensor: - platform: remote_receiver name: "Remote ON" raw: code: [ -9052, 4434, -636, 523, -636, 492, -603, 526, -608, 522, -606, 523, -608, 520, -606, 522, -600, 529, -610, 1594, -633, 1602, -638, 1595, -631, 1601, -628, 1606, -635, 1600, -636, 1595, -637, 1597, -634, 1600, -637, 521, -604, 1600, -637, 1596, -638, 520, -609, 521, -606, 523, -634, 494, -610, 518, -608, 1597, -638, 520, -607, 521, -607, 1597, -635, 1598, -636, 1599, -665, 1568, -644 ] on_press: then: - light.turn_on: ${device_name}
- platform: remote_receiver name: "Remote OFF" raw: code: [ -9008, 4482, -600, 531, -565, 564, -591, 536, -568, 564, -593, 537, -597, 529, -597, 531, -596, 534, -596, 1639, -597, 1635, -597, 1638, -598, 1638, -591, 1644, -568, 1665, -592, 1642, -566, 1670, -592, 1640, -595, 1639, -592, 1643, -567, 1665, -596, 1640, -597, 532, -595, 533, -594, 536, -596, 534, -597, 530, -567, 563, -568, 561, -599, 529, -568, 1667, -593, 1642, -591, 1642, -597 ] on_press: then: - light.turn_off: ${device_name}
- platform: remote_receiver name: "Remote BRIGHTUP" raw: code: [ -8998, 4475, -592, 533, -594, 535, -593, 535, -591, 536, -591, 536, -591, 537, -591, 535, -591, 536, -593, 1639, -592, 1638, -591, 1639, -589, 1640, -592, 1637, -593, 1638, -593, 1638, -591, 1637, -593, 1638, -593, 534, -592, 535, -594, 1636, -594, 535, -590, 537, -592, 535, -592, 536, -592, 534, -593, 1635, -594, 1639, -591, 536, -591, 1639, -591, 1639, -591, 1640, -591, 1639, -592 ] on_press: then: - light.dim_relative: id: ${device_name} relative_brightness: 5%
- platform: remote_receiver name: "Remote BRIGHTDOWN" raw: code: [ -9000, 4476, -589, 537, -593, 533, -593, 536, -590, 536, -593, 536, -592, 535, -592, 535, -592, 535, -593, 1638, -593, 1638, -592, 1637, -591, 1640, -591, 1638, -592, 1639, -592, 1638, -592, 1639, -592, 1637, -591, 538, -592, 1637, -592, 1639, -592, 1637, -593, 536, -591, 536, -591, 536, -593, 534, -592, 1639, -591, 537, -592, 536, -590, 535, -593, 1637, -593, 1638, -594, 1636, -593 ] on_press: then: - light.dim_relative: id: ${device_name} relative_brightness: -5%
- platform: remote_receiver name: "Remote RED" raw: code: [ -9011, 4465, -600, 558, -574, 528, -597, 556, -573, 555, -573, 524, -603, 556, -571, 530, -596, 558, -568, 1635, -597, 1633, -601, 1630, -603, 1628, -607, 1625, -596, 1633, -607, 1625, -605, 1626, -602, 1629, -600, 529, -602, 555, -592, 1607, -598, 1635, -634, 523, -572, 556, -574, 553, -573, 527, -596, 1635, -598, 1631, -596, 535, -599, 556, -567, 1633, -603, 1629, -604, 1627, -597 ] on_press: then: - light.turn_on: id: ${device_name} red: 100% green: 0% blue: 0% white: 0% effect: None
- platform: remote_receiver name: "Remote GREEN" raw: code: [ -9042, 4433, -669, 488, -611, 517, -611, 517, -636, 492, -608, 519, -609, 518, -638, 490, -611, 517, -634, 1567, -636, 1596, -663, 1569, -633, 1597, -668, 1565, -637, 1591, -636, 1597, -637, 1592, -638, 1595, -641, 1588, -666, 492, -641, 1562, -665, 1565, -640, 518, -605, 522, -604, 523, -610, 518, -606, 522, -613, 1589, -633, 524, -610, 518, -604, 1598, -627, 1603, -641, 1591, -640 ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 100% blue: 0% white: 0% effect: None
- platform: remote_receiver name: "Remote BLUE" raw: code: [ -9041, 4434, -637, 521, -632, 494, -608, 521, -609, 519, -635, 493, -604, 524, -604, 523, -607, 521, -607, 1595, -664, 1567, -667, 1565, -664, 1568, -634, 1596, -635, 1598, -635, 1594, -669, 1566, -663, 1566, -634, 522, -637, 490, -607, 522, -636, 1565, -639, 519, -640, 487, -641, 487, -636, 491, -636, 1568, -666, 1564, -664, 1566, -666, 492, -640, 1562, -668, 1564, -671, 1559, -667 ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 0% blue: 100% white: 0% effect: None
- platform: remote_receiver name: "Remote WHITE" raw: code: [ -9057, 4433, -634, 524, -607, 523, -607, 521, -604, 525, -609, 520, -610, 518, -638, 491, -609, 521, -607, 1595, -637, 1595, -637, 1596, -640, 1594, -628, 1604, -638, 1596, -635, 1598, -637, 1593, -640, 1595, -635, 522, -606, 1600, -632, 524, -603, 1601, -637, 520, -609, 521, -607, 521, -604, 526, -610, 1593, -631, 527, -601, 1603, -661, 499, -607, 1593, -638, 1595, -666, 1567, -636 ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 0% blue: 0% white: 100% effect: None
- platform: remote_receiver name: "Remote FLASH" raw: code: [ -9011, 4485, -592, 537, -594, 536, -592, 536, -594, 537, -593, 537, -593, 536, -593, 537, -593, 536, -593, 1641, -594, 1642, -593, 1642, -592, 1644, -592, 1642, -592, 1644, -591, 1642, -594, 1640, -596, 1639, -594, 536, -594, 1641, -593, 1642, -593, 536, -593, 537, -594, 1641, -592, 537, -594, 536, -593, 1641, -594, 536, -594, 534, -597, 1639, -594, 1641, -592, 537, -593, 1643, -592 ] on_press: then: - light.turn_on: id: ${device_name} effect: "In Alarm"
- platform: remote_receiver name: "Remote STROBE" raw: code: [ -8971, 4511, -559, 565, -562, 568, -561, 565, -562, 566, -563, 564, -563, 567, -563, 564, -562, 565, -563, 1670, -563, 1668, -562, 1671, -560, 1671, -563, 1670, -560, 1669, -565, 1667, -563, 1673, -558, 567, -561, 564, -562, 566, -565, 563, -561, 569, -562, 567, -585, 540, -563, 571, -558, 1669, -561, 1671, -560, 1669, -563, 1670, -561, 1670, -564, 1668, -561, 1671, -560, 1672, -562 ] on_press: then: - light.turn_on: id: ${device_name} effect: "Default Strobe"
light: - platform: rgbw name: ${friendly_name} # Put the name that you want to see in Home Assistant. id: ${device_name} red: red_channel green: green_channel blue: blue_channel white: white_channel effects: # Add few effects : Slow and fast random colors and an "in alarm" mode. - random: name: "Slow Random Colors" transition_length: 30s update_interval: 30s - random: name: "Fast Random Colors" transition_length: 4s update_interval: 5s - strobe: name: Default Strobe - strobe: name: In Alarm colors: - state: True brightness: 100% white: 0% red: 100% blue: 0% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 100% blue: 0% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 0% blue: 100% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 0% blue: 100% green: 0% duration: 150ms - state: False duration: 100ms
output: - platform: esp8266_pwm id: red_channel pin: GPIO12 - platform: esp8266_pwm id: green_channel pin: GPIO5 - platform: esp8266_pwm id: blue_channel pin: GPIO13 - platform: esp8266_pwm id: white_channel pin: GPIO15Split Configuration
If you have several of these LED controllers, you may prefer to keep the shared code in one file and only put the device-specific code in the files for each LED strip.
In magichome_ledstrip_common.yaml:
esphome: name: ${device_name} comment: ${device_description} platform: ESP8266 board: esp01_1m
wifi: ssid: !secret wifi_ssid password: !secret wifi_password use_address: ${ipaddress}
# Enable fallback hotspot (captive portal) in case wifi connection fails ap: ssid: ${friendly_name}_AP password: !secret fallbackpass
captive_portal:
# Enable logginglogger: baud_rate: 0 #disable UART logging
# Enable Home Assistant APIapi: encryption: key: !secret encryption_key
# Enable OTA updatesota: password: !secret esphomeotapwd
# Enable web serverweb_server: port: 80
remote_receiver: pin: GPIO4 dump: raw #Comment out if you aren't debugging IR codes
output: - platform: esp8266_pwm id: red_channel pin: GPIO12 - platform: esp8266_pwm id: green_channel pin: GPIO5 - platform: esp8266_pwm id: blue_channel pin: GPIO13 - platform: esp8266_pwm id: white_channel pin: GPIO15
binary_sensor: - platform: remote_receiver name: "Remote ON" raw: code: [ -9052, 4434, -636, 523, -636, 492, -603, 526, -608, 522, -606, 523, -608, 520, -606, 522, -600, 529, -610, 1594, -633, 1602, -638, 1595, -631, 1601, -628, 1606, -635, 1600, -636, 1595, -637, 1597, -634, 1600, -637, 521, -604, 1600, -637, 1596, -638, 520, -609, 521, -606, 523, -634, 494, -610, 518, -608, 1597, -638, 520, -607, 521, -607, 1597, -635, 1598, -636, 1599, -665, 1568, -644, ] on_press: then: - light.turn_on: ${device_name}
- platform: remote_receiver name: "Remote OFF" raw: code: [ -9008, 4482, -600, 531, -565, 564, -591, 536, -568, 564, -593, 537, -597, 529, -597, 531, -596, 534, -596, 1639, -597, 1635, -597, 1638, -598, 1638, -591, 1644, -568, 1665, -592, 1642, -566, 1670, -592, 1640, -595, 1639, -592, 1643, -567, 1665, -596, 1640, -597, 532, -595, 533, -594, 536, -596, 534, -597, 530, -567, 563, -568, 561, -599, 529, -568, 1667, -593, 1642, -591, 1642, -597, ] on_press: then: - light.turn_off: ${device_name}
- platform: remote_receiver name: "Remote BRIGHTUP" raw: code: [ -8998, 4475, -592, 533, -594, 535, -593, 535, -591, 536, -591, 536, -591, 537, -591, 535, -591, 536, -593, 1639, -592, 1638, -591, 1639, -589, 1640, -592, 1637, -593, 1638, -593, 1638, -591, 1637, -593, 1638, -593, 534, -592, 535, -594, 1636, -594, 535, -590, 537, -592, 535, -592, 536, -592, 534, -593, 1635, -594, 1639, -591, 536, -591, 1639, -591, 1639, -591, 1640, -591, 1639, -592, ] on_press: then: - light.dim_relative: id: ${device_name} relative_brightness: 5%
- platform: remote_receiver name: "Remote BRIGHTDOWN" raw: code: [ -9000, 4476, -589, 537, -593, 533, -593, 536, -590, 536, -593, 536, -592, 535, -592, 535, -592, 535, -593, 1638, -593, 1638, -592, 1637, -591, 1640, -591, 1638, -592, 1639, -592, 1638, -592, 1639, -592, 1637, -591, 538, -592, 1637, -592, 1639, -592, 1637, -593, 536, -591, 536, -591, 536, -593, 534, -592, 1639, -591, 537, -592, 536, -590, 535, -593, 1637, -593, 1638, -594, 1636, -593, ] on_press: then: - light.dim_relative: id: ${device_name} relative_brightness: -5%
- platform: remote_receiver name: "Remote RED" raw: code: [ -9011, 4465, -600, 558, -574, 528, -597, 556, -573, 555, -573, 524, -603, 556, -571, 530, -596, 558, -568, 1635, -597, 1633, -601, 1630, -603, 1628, -607, 1625, -596, 1633, -607, 1625, -605, 1626, -602, 1629, -600, 529, -602, 555, -592, 1607, -598, 1635, -634, 523, -572, 556, -574, 553, -573, 527, -596, 1635, -598, 1631, -596, 535, -599, 556, -567, 1633, -603, 1629, -604, 1627, -597, ] on_press: then: - light.turn_on: id: ${device_name} red: 100% green: 0% blue: 0% white: 0% effect: None
- platform: remote_receiver name: "Remote GREEN" raw: code: [ -9042, 4433, -669, 488, -611, 517, -611, 517, -636, 492, -608, 519, -609, 518, -638, 490, -611, 517, -634, 1567, -636, 1596, -663, 1569, -633, 1597, -668, 1565, -637, 1591, -636, 1597, -637, 1592, -638, 1595, -641, 1588, -666, 492, -641, 1562, -665, 1565, -640, 518, -605, 522, -604, 523, -610, 518, -606, 522, -613, 1589, -633, 524, -610, 518, -604, 1598, -627, 1603, -641, 1591, -640, ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 100% blue: 0% white: 0% effect: None
- platform: remote_receiver name: "Remote BLUE" raw: code: [ -9041, 4434, -637, 521, -632, 494, -608, 521, -609, 519, -635, 493, -604, 524, -604, 523, -607, 521, -607, 1595, -664, 1567, -667, 1565, -664, 1568, -634, 1596, -635, 1598, -635, 1594, -669, 1566, -663, 1566, -634, 522, -637, 490, -607, 522, -636, 1565, -639, 519, -640, 487, -641, 487, -636, 491, -636, 1568, -666, 1564, -664, 1566, -666, 492, -640, 1562, -668, 1564, -671, 1559, -667, ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 0% blue: 100% white: 0% effect: None
- platform: remote_receiver name: "Remote WHITE" raw: code: [ -9057, 4433, -634, 524, -607, 523, -607, 521, -604, 525, -609, 520, -610, 518, -638, 491, -609, 521, -607, 1595, -637, 1595, -637, 1596, -640, 1594, -628, 1604, -638, 1596, -635, 1598, -637, 1593, -640, 1595, -635, 522, -606, 1600, -632, 524, -603, 1601, -637, 520, -609, 521, -607, 521, -604, 526, -610, 1593, -631, 527, -601, 1603, -661, 499, -607, 1593, -638, 1595, -666, 1567, -636, ] on_press: then: - light.turn_on: id: ${device_name} red: 0% green: 0% blue: 0% white: 100% effect: None
- platform: remote_receiver name: "Remote FLASH" raw: code: [ -9011, 4485, -592, 537, -594, 536, -592, 536, -594, 537, -593, 537, -593, 536, -593, 537, -593, 536, -593, 1641, -594, 1642, -593, 1642, -592, 1644, -592, 1642, -592, 1644, -591, 1642, -594, 1640, -596, 1639, -594, 536, -594, 1641, -593, 1642, -593, 536, -593, 537, -594, 1641, -592, 537, -594, 536, -593, 1641, -594, 536, -594, 534, -597, 1639, -594, 1641, -592, 537, -593, 1643, -592, ] on_press: then: - light.turn_on: id: ${device_name} effect: "In Alarm"
- platform: remote_receiver name: "Remote STROBE" raw: code: [ -8971, 4511, -559, 565, -562, 568, -561, 565, -562, 566, -563, 564, -563, 567, -563, 564, -562, 565, -563, 1670, -563, 1668, -562, 1671, -560, 1671, -563, 1670, -560, 1669, -565, 1667, -563, 1673, -558, 567, -561, 564, -562, 566, -565, 563, -561, 569, -562, 567, -585, 540, -563, 571, -558, 1669, -561, 1671, -560, 1669, -563, 1670, -561, 1670, -564, 1668, -561, 1671, -560, 1672, -562, ] on_press: then: - light.turn_on: id: ${device_name} effect: "Default Strobe"
light: - platform: rgbw name: ${friendly_name} # Put the name that you want to see in Home Assistant. id: ${device_name} red: red_channel green: green_channel blue: blue_channel white: white_channel effects: # Add few effects : Slow and fast random colors and an "in alarm" mode. - random: name: "Slow Random Colors" transition_length: 30s update_interval: 30s - random: name: "Fast Random Colors" transition_length: 4s update_interval: 5s - strobe: name: Default Strobe - strobe: name: In Alarm colors: - state: True brightness: 100% white: 0% red: 100% blue: 0% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 100% blue: 0% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 0% blue: 100% green: 0% duration: 150ms - state: False duration: 100ms - state: True brightness: 100% white: 0% red: 0% blue: 100% green: 0% duration: 150ms - state: False duration: 100msThen in each led strip's yaml:
<<: !include magichome_ledstrip_common.yaml
substitutions: device_name: led_strip device_description: RGBW LED Strip with IR remote behind television. friendly_name: LED strip behind television ipaddress: 192.168.1.200
