Gosund SP111

Gosund SP111

Device Type: plug
Electrical Standard: eu
Board: esp8266

Warning

Warning

Looks like device chip was replaced to non-flashable custom tasmota chip.

Please be aware, that there is a new version of that outlet, often having the phrase EP2 instead or in addition to SP111, sold starting in November 2020. For that version, the tuya script does not longer work! Also a breakless opening of the plug is much harder due to a removed screw on the bottom of the device.

Flashing

The older devices can be flashed using tuya-convert. Fresh out of the factory it will be in autoconfig mode. When plugged in for the first time tuya-convert will pick it up directly.

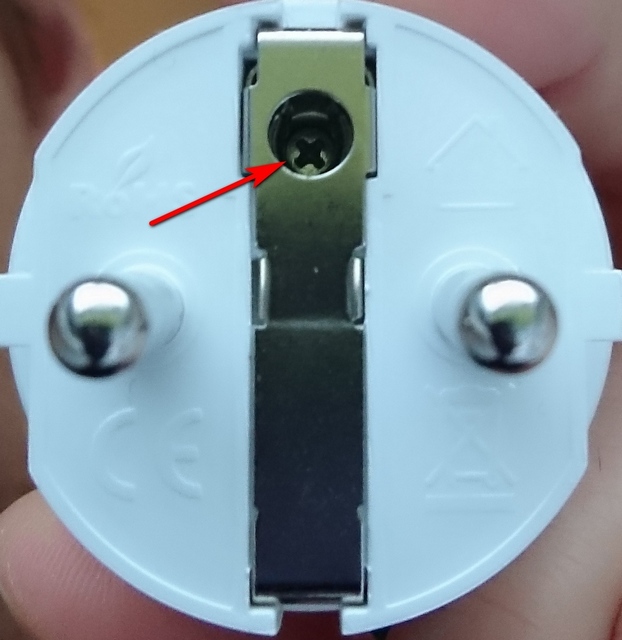

Hardly visible screw on original SP111

Make sure the plug has that screw on the bottom!

GPIO Pinout

see pinout

PinFunction
GPIO00Led1i
GPIO01None
GPIO02LedLinki
GPIO03None
GPIO04HLWBL CF1
GPIO05BL0937 CF
GPIO09None
GPIO10None
GPIO12HLWBL SELi
GPIO13Button1
GPIO14None
GPIO15Relay1
GPIO16None

Basic Configuration

substitutions:
devicename: "gosund_sp111"
upper_devicename: "Gosund SP111"
# Higher value gives lower watt readout
current_res: "0.00280"
# Lower value gives lower voltage readout. In my case of about 15 of those devices this value is closest to my voltage meter
voltage_div: "648"
esphome:
name: $devicename
platform: ESP8266
board: esp8285
# This allows the device to restore the last saved relay state, either "ON" or "OFF" for the switch later in this config
esp8266_restore_from_flash: true
preferences:
flash_write_interval: 1min # set to 5min to prevent wearing out the onboard flash module too quickly
# Enable logging
logger:
baud_rate: 0
# Enable Home Assistant API
api:
encryption:
key: "REDACTED"
ota:
password: "REDACTED"
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
captive_portal:
# see: https://esphome.io/components/time.html
time:
- platform: homeassistant
id: homeassistant_time
# Enable Web server
web_server:
port: 80
text_sensor:
- platform: version
name: "${devicename} - Version"
icon: mdi:cube-outline
binary_sensor:
- platform: status
name: "${devicename} - Status"
device_class: connectivity
# toggle relay on/off
- platform: gpio
pin:
number: GPIO13
mode: INPUT_PULLUP
inverted: True
id: "${devicename}_button_state"
on_press:
- switch.toggle: button_switch
sensor:
- platform: wifi_signal
name: "${devicename} - Wifi Signal"
update_interval: 60s
icon: mdi:wifi
- platform: uptime
name: "${devicename} - Uptime"
update_interval: 60s
icon: mdi:clock-outline
- platform: total_daily_energy
name: "${devicename} - Todays Usage"
power_id: "power_wattage"
filters:
# Multiplication factor from W to kW is 0.001
- multiply: 0.001
unit_of_measurement: kWh
icon: mdi:calendar-clock
- platform: adc
pin: VCC
name: "${devicename} - VCC Volt"
icon: mdi:flash-outline
- platform: hlw8012
sel_pin:
number: GPIO12
inverted: True
cf_pin: GPIO05
cf1_pin: GPIO04
change_mode_every: 4
current_resistor: ${current_res}
voltage_divider: ${voltage_div}
update_interval: 3s
current:
name: "${devicename} - Ampere"
unit_of_measurement: A
accuracy_decimals: 3
icon: mdi:current-ac
voltage:
name: "${devicename} - Volt"
unit_of_measurement: V
accuracy_decimals: 1
icon: mdi:flash-outline
power:
name: "${devicename} - Watt"
unit_of_measurement: W
id: "power_wattage"
icon: mdi:gauge
status_led:
pin:
number: GPIO02
inverted: True
id: led_blue
output:
- platform: gpio
pin: GPIO00
inverted: true
id: led_red
switch:
- platform: template
name: "${devicename} - Switch"
icon: mdi:power
optimistic: true
# This is where the "restore_from_flash" comes in. I set it to try to restore from flash and, if that fails, set it to ON
restore_mode: RESTORE_DEFAULT_ON
lambda: 'return id(relay).state;'
id: button_switch
turn_on_action:
- switch.turn_on: relay
- output.turn_on: led_red
turn_off_action:
- switch.turn_off: relay
- output.turn_off: led_red
- platform: gpio
pin: GPIO15
id: relay
