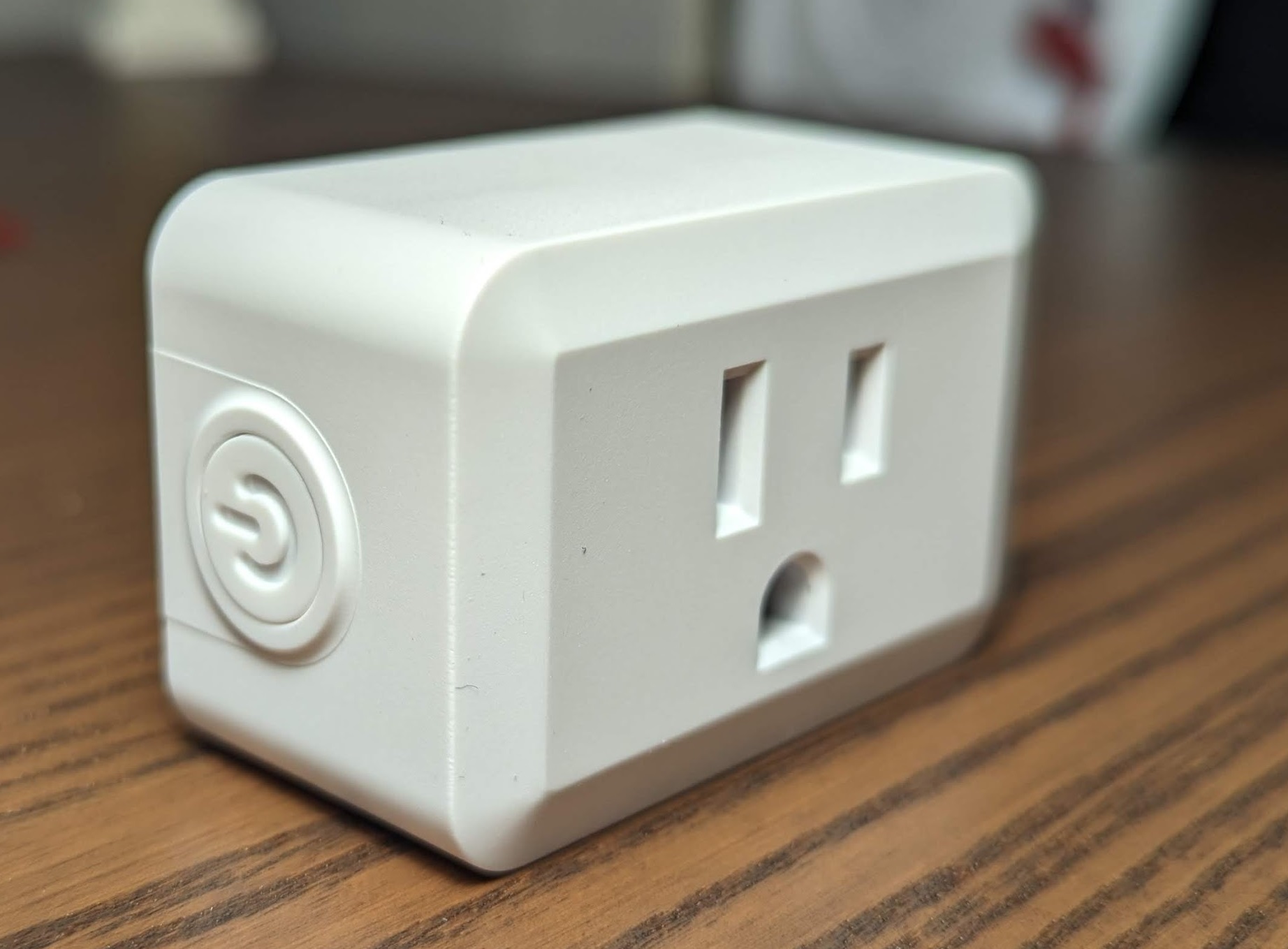

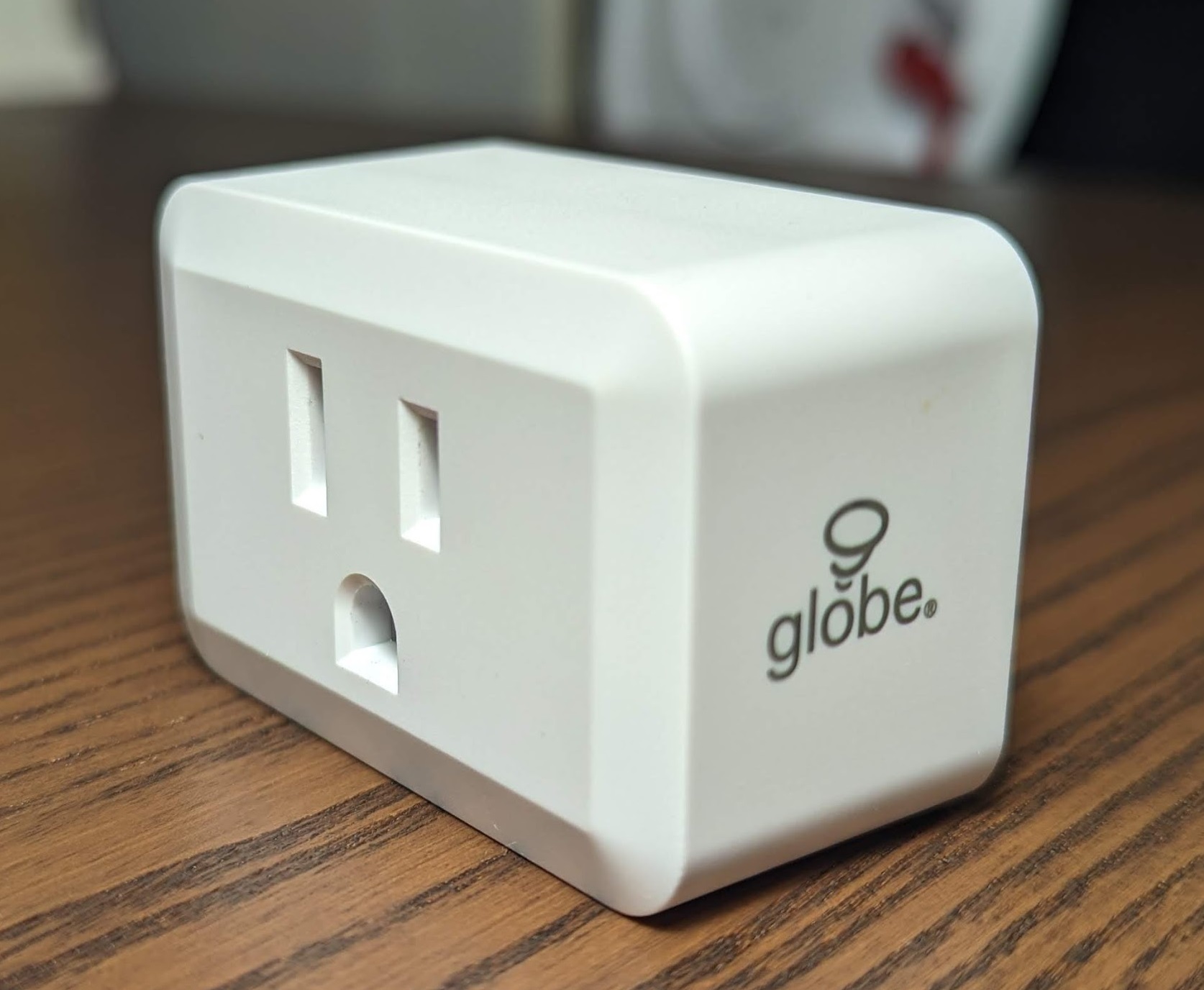

Globe Electric Wi-Fi Smart Plug 50359

Globe Electric Wi-Fi Smart Plug 50359

Device Type: plug
Electrical Standard: us
Difficulty: Plug-n-flash, 2/5

alt text alt text alt text

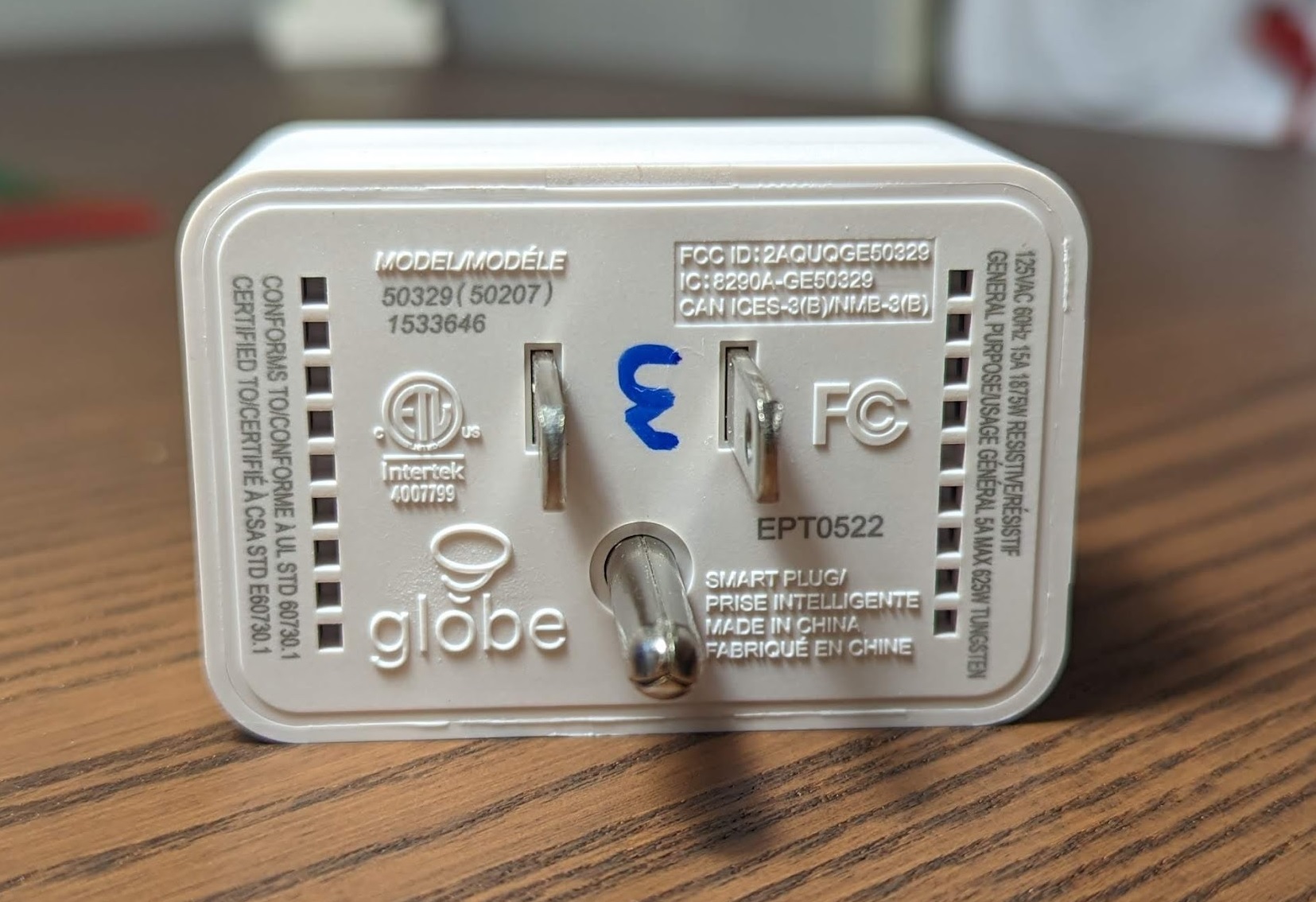

Sold at Costco model (50207)

Custom Firmware Needed

This device uses the WB2S module that comes with Tuya firmware which can be flashed to esphome using cloudcutter following instructions here

This requires a custom fork of esphome to complie the firmware for the WB2S module (https://github.com/esphome/esphome/pull/3509) as it is not natively support by esphome yet

GPIO Pinout

Due to the fact that this uses a custom esphome firmware the pin numbers start with a P instead of the usual GPIO

PinNameFunction
P7LEDStatus LED
P26ButtonPower Button
P24OutletRelay

Basic Configuration

# Globe Electric 50329 smart plug
substitutions:
  number: "1"
  device_name: globe-plug-${number}
  device_description: Globe Electric 50329 Smart plug
  friendly_name: Globe Plug ${number}


esphome:
  name: ${device_name}
  comment: ${device_description}


libretiny:
  board: generic-bk7231t-qfn32-tuya
  framework:
    version: dev


# Enable logging
logger:


# Enable Home Assistant API
api:
  encryption:
    key: "YOUR KEY HERE"


web_server:
  port: 80
  auth:
    username: admin
    password: !secret web_server_password


ota:
  password: !secret ota_password


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


text_sensor:
  - platform: wifi_info
    ip_address:
      name: ESP IP Address
    ssid:
      name: ESP Connected SSID
    bssid:
      name: ESP Connected BSSID
    mac_address:
      name: ESP Mac Wifi Address


time:
  - platform: homeassistant
    id: homeassistant_time


sensor:
  - platform: uptime
    name: ${friendly_name} Uptime
    unit_of_measurement: minutes
    filters:
      - lambda: return x / 60.0;


  - platform: wifi_signal
    name: ${friendly_name} Signal
    update_interval: 60s


light:
  - platform: status_led
    name: "led"
    internal: true
    id: led
    pin:
      number: P7
      inverted: true


binary_sensor:
  - platform: gpio
    pin:
      number: P26
      inverted: true
    id: button1
    filters:
      - delayed_on: 10ms
      - delayed_off: 10ms
    on_click:
      - switch.toggle: outlet


  - platform: status
    name: ${friendly_name} status


switch:
  - platform: gpio
    name: ${friendly_name} Outlet
    id: outlet
    pin: P24
    icon: mdi:power-socket-us
    on_turn_on:
      - light.turn_on: led
    on_turn_off:
      - light.turn_off: led
