Avita Domus AS-SB-10W-5C RGBCCT 10 Watt Light Bulb

Device Type: light
Electrical Standard: in
Board: bk72xx
Difficulty: Plug-n-flash, 2/5
Project URL: https://github.com/kprasadvnsi/Avita_Domus_AS-SB-10W-5C_RGBCCT_10Watt_Light_Bulb-esphome

Avita Domus AS-SB-10W-5C RGBCCT 10Watt Light Bulb

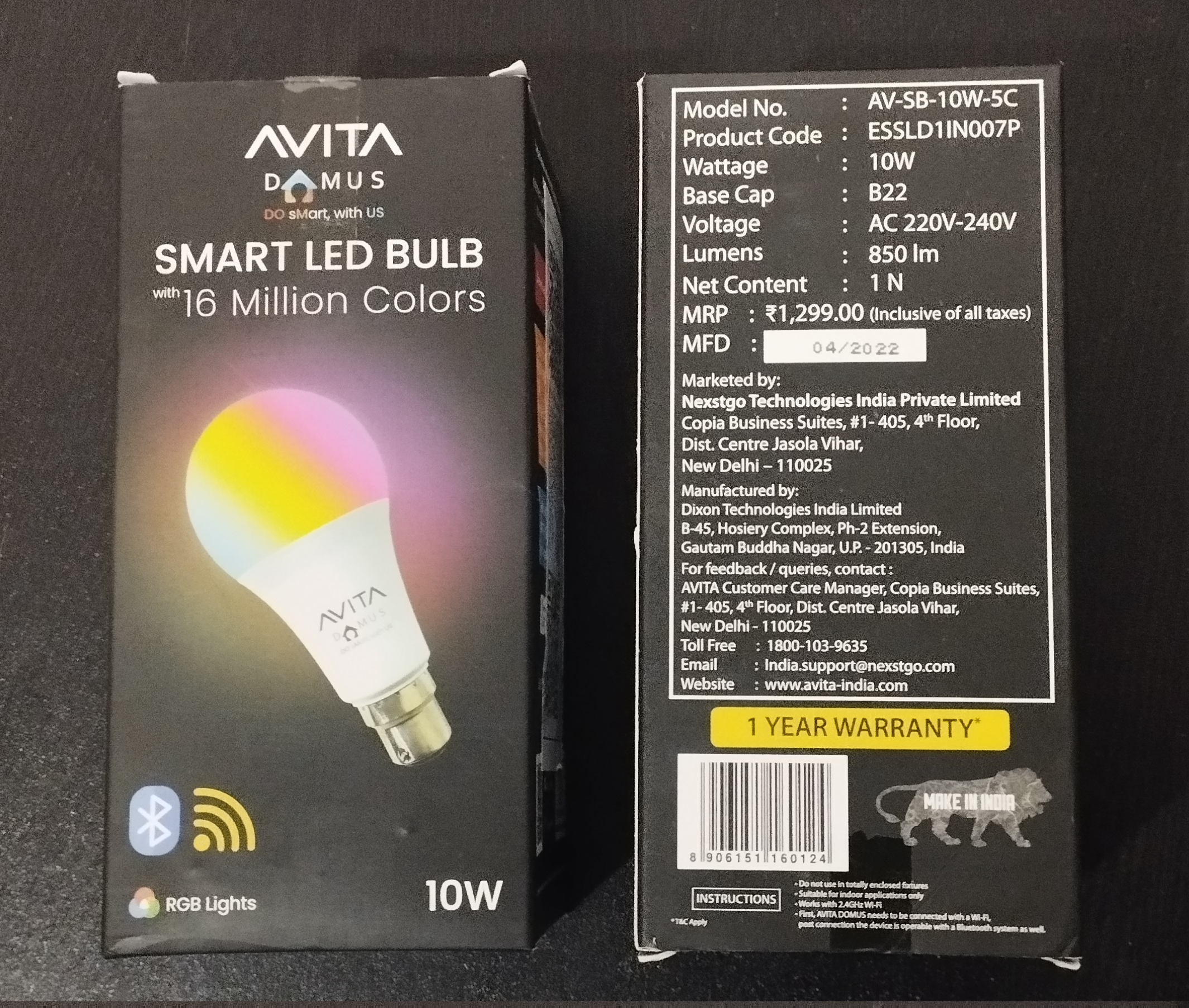

Device Info

This Avita Domus Bulb has a B22 Bayonet fitting.

SKU: ESSLD1IN007P

Available from:

Flipkart.com

Manufacturer:

Avita India

Flashing With Cloudcutter

Setup tuya-cloudcutter
Start the cloudcutter process
Select the option 2) Flash 3rd Party Firmware
How do you want to choose the device? Select ► By firmware version and name.
Select the firmware version and name: Choose ► 2.9.16 - BK7231T / oem_bk7231s_light_ty
When prompted, Select your custom firmware file for the BK7231T chip: Choose ► ESPHome-Kickstart-v23.08.29_bk7231t_app.ota.ug.bin
Place your device in AP (slow blink) mode. This step is explained in the terminal prompt when you select your custom firmware file. In this case we are using the ESPHome-Kickstart firmware.

(double check your version in the Tuya Smart Life - Smart Living app!)

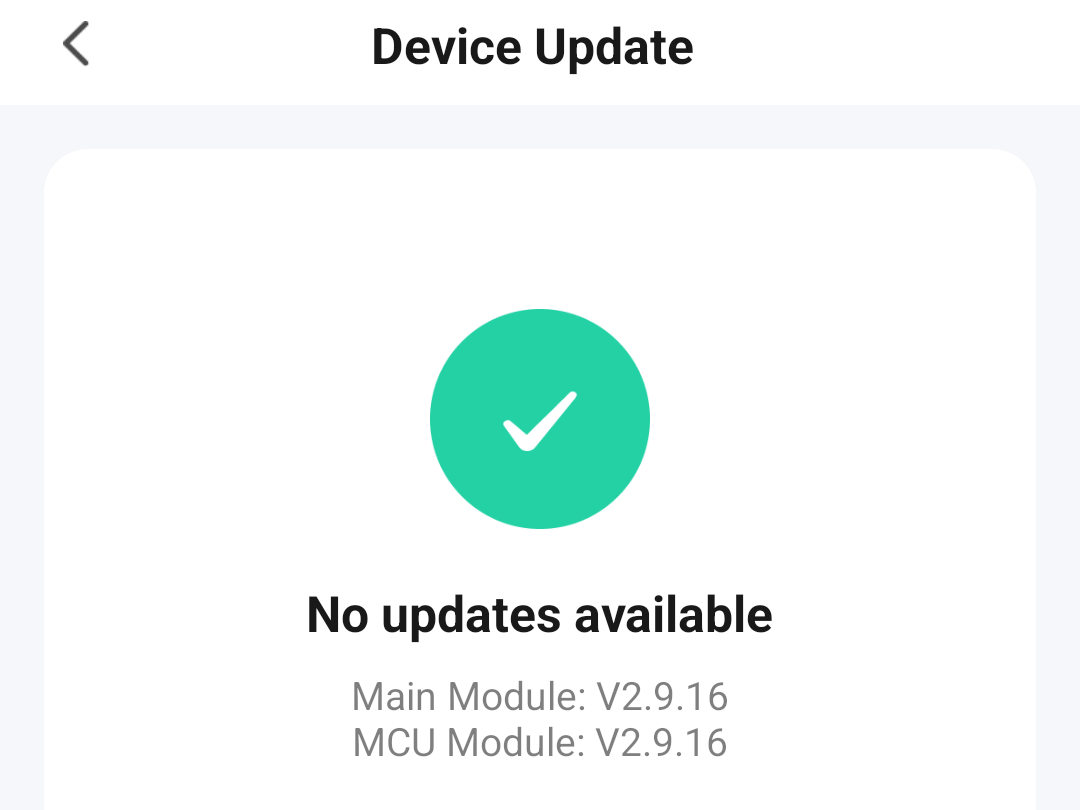

Tuya firmware version in the Tuya Smart Life - Smart Living app

GPIO Pinout

Pin	Function
GPIO6	CT Output
GPIO7	CT Brightness Output
GPIO8	Red Output
GPIO24	Green Output
GPIO26	Blue Output

Basic Configuration

esphome:
  name: upk2esphome-bk7231t

bk72xx:
  board: generic-bk7231t-qfn32-tuya

logger:

web_server:

captive_portal:

mdns:

api:
  password: !secret api_password

ota:
  platform: esphome
  password: !secret ota_password

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: "Avita Fallback Hotspot"
    password: !secret hotspot_password

text_sensor:
  - platform: libretiny
    version:
      name: LibreTiny Version

output:
  - platform: libretiny_pwm
    id: output_red
    pin: P8
  - platform: libretiny_pwm
    id: output_green
    pin: P24
  - platform: libretiny_pwm
    id: output_blue
    pin: P26
  - platform: libretiny_pwm
    id: output_brightness
    pin: P7
  - platform: libretiny_pwm
    id: output_temperature
    pin: P6
    inverted: true

light:
  - platform: rgbct
    id: light_rgbct
    name: Light
    color_interlock: true
    cold_white_color_temperature: 6500 K
    warm_white_color_temperature: 2700 K
    red: output_red
    green: output_green
    blue: output_blue
    white_brightness: output_brightness
    color_temperature: output_temperature

Doing it the hard way

It's all fun and games when TuyaCloudCutter supports your stock firmware version. My device was manufactured in 04/2022, almost three years old and had firmware version 2.9.16. The Tuya exploit got patched after version 2.9.29. It's a good probablity that the newer batches may come with the patched firmware.

Disassembly

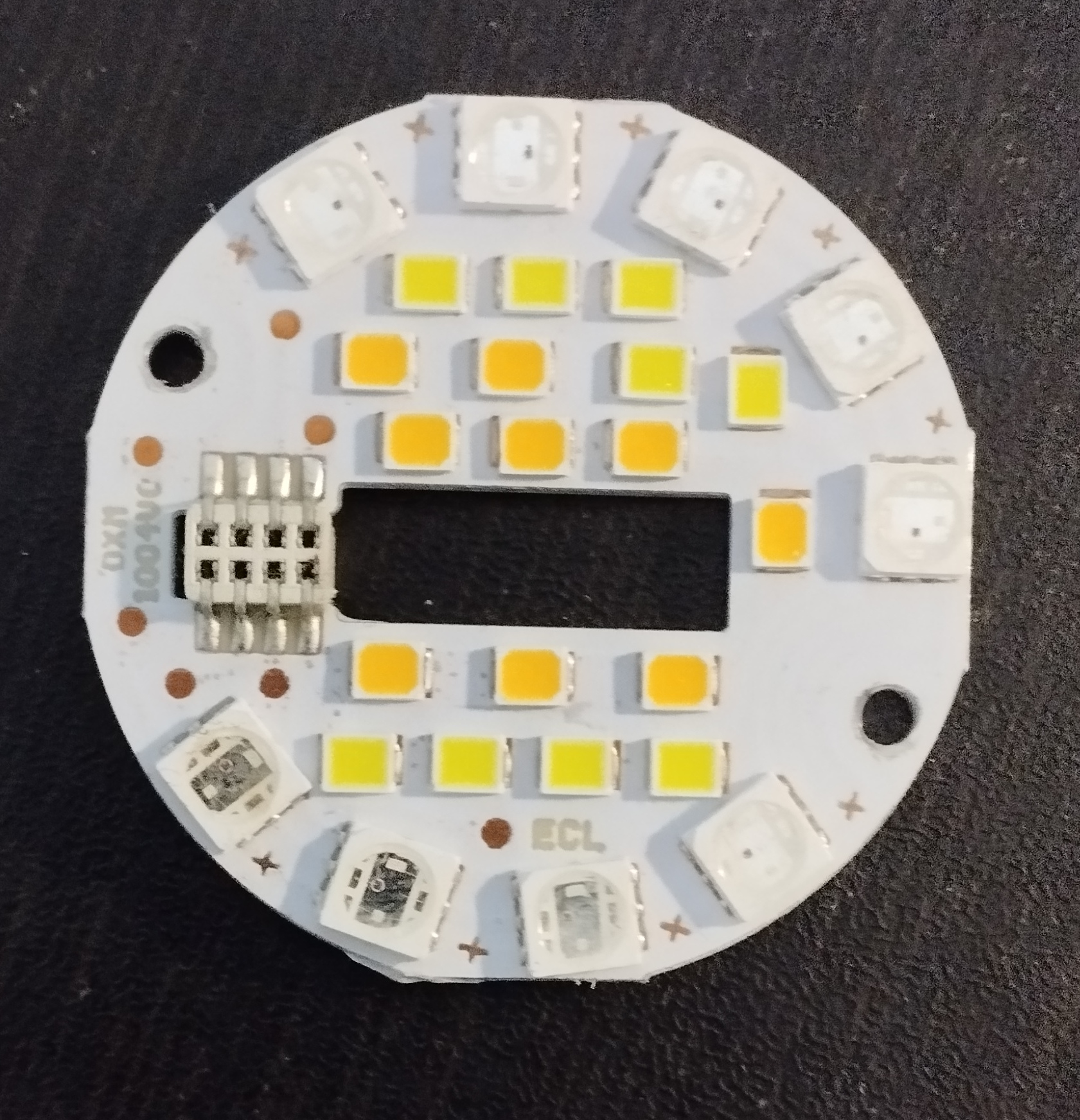

LED PCB

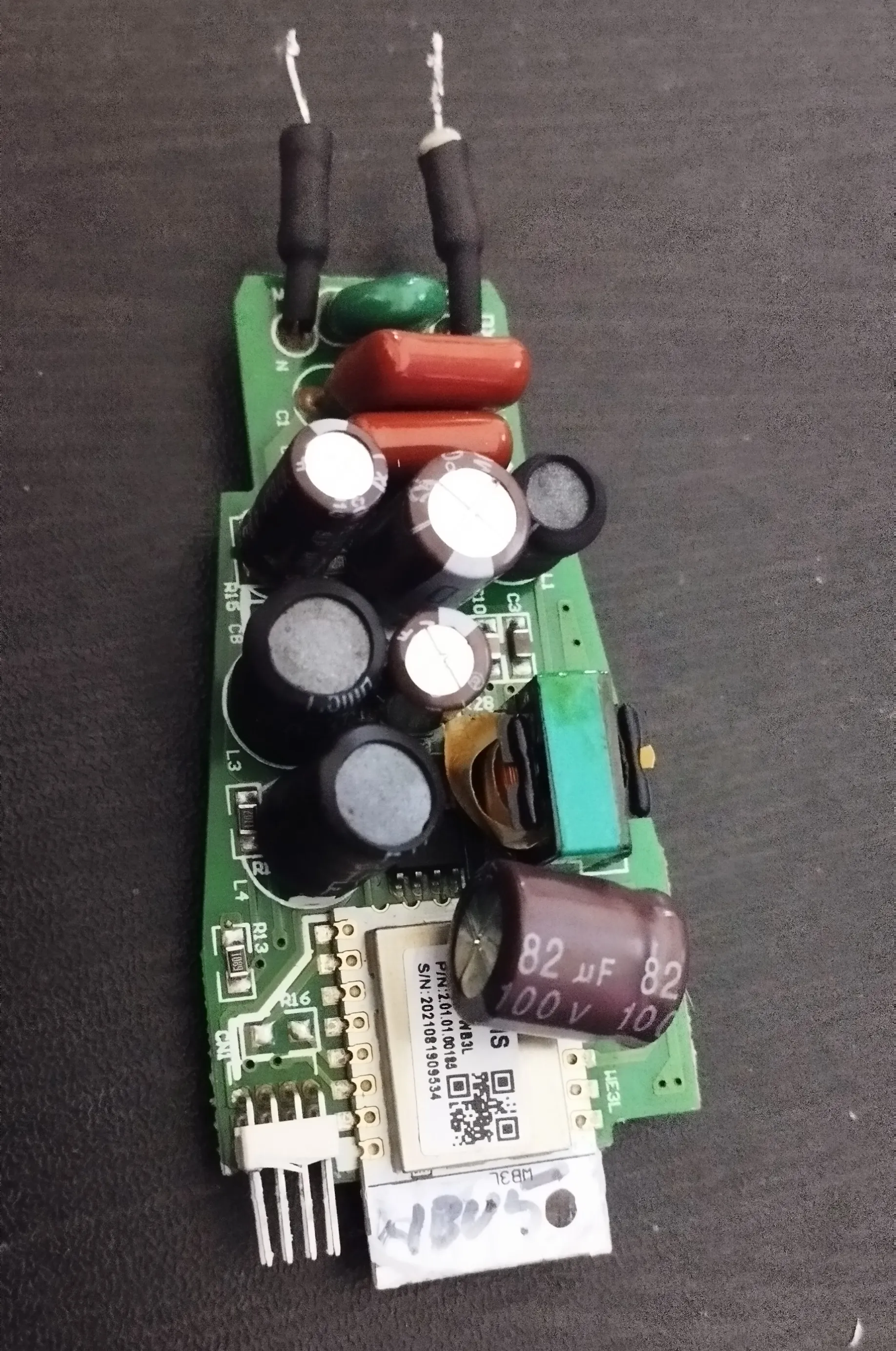

main pcb top

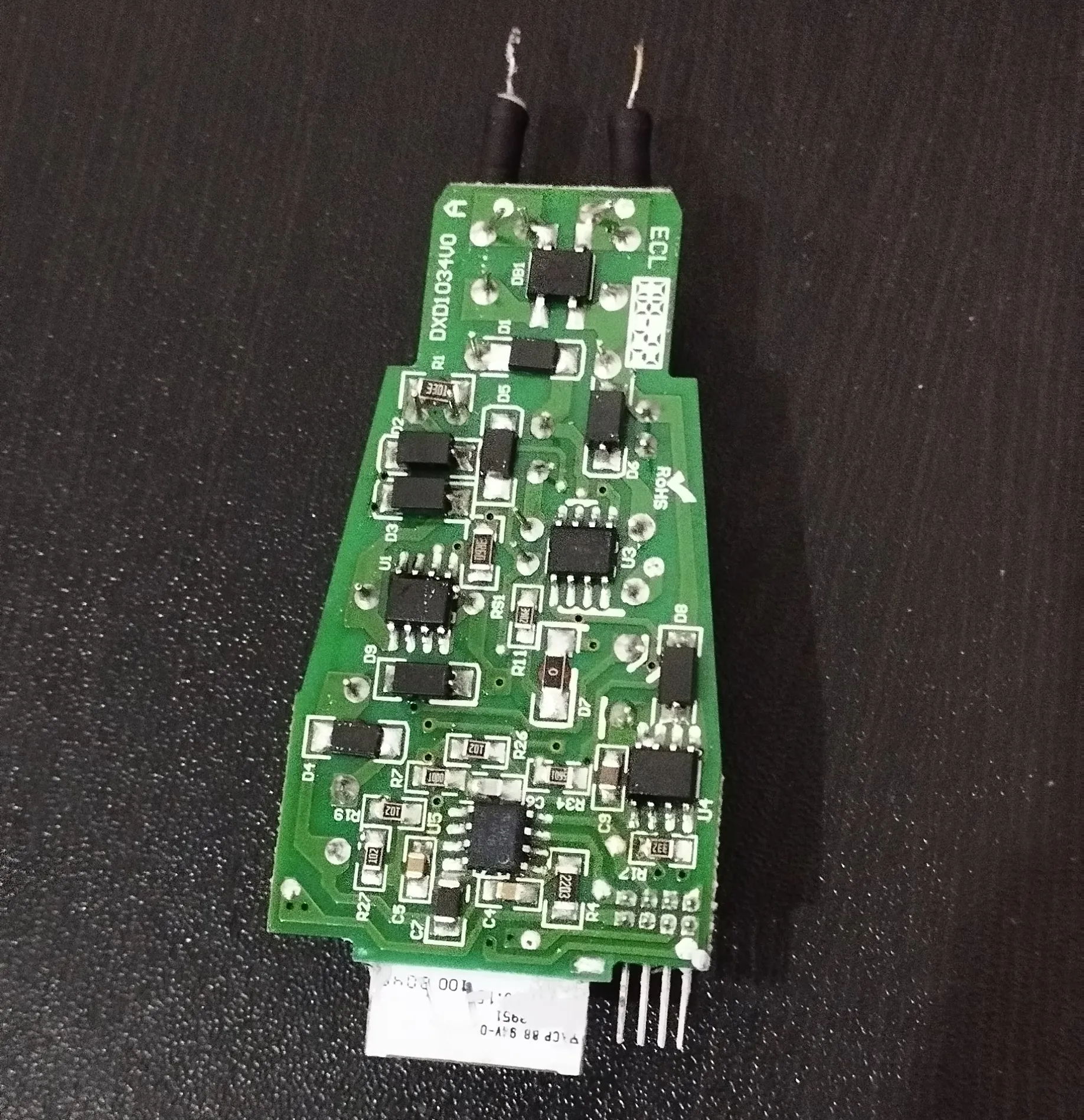

main pcb bottom

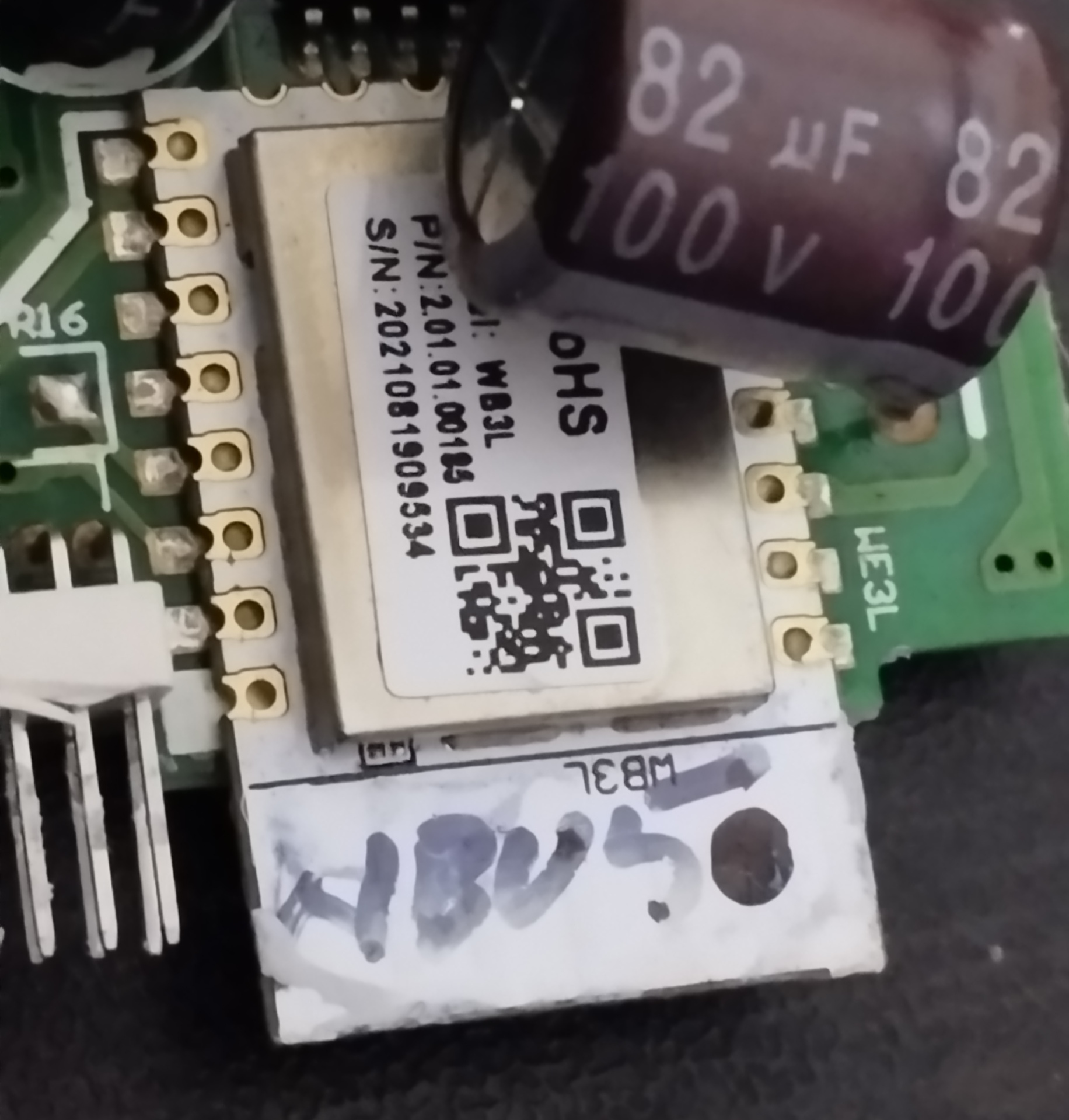

WB3L wifi module

Components detail

U1 - BP2306: Dimmable Non-isolated APFC Buck LED Driver
U2 - BP1638: 3-channel PWM dimmable Linear constant current LED driver
U3 - BP2513D for generating DC rail which will be the input to the 3-channel LED driver IC
U4 - BP8516: for generating DC rail for WiFi module
U5 - BP5926: PWM LED Driver
WB3L Wi-Fi Module - An embedded Wi-Fi and Bluetooth LE module developed by Tuya based on the WiFi SoC BK7231T.

Wiring for the UART firmware read/write

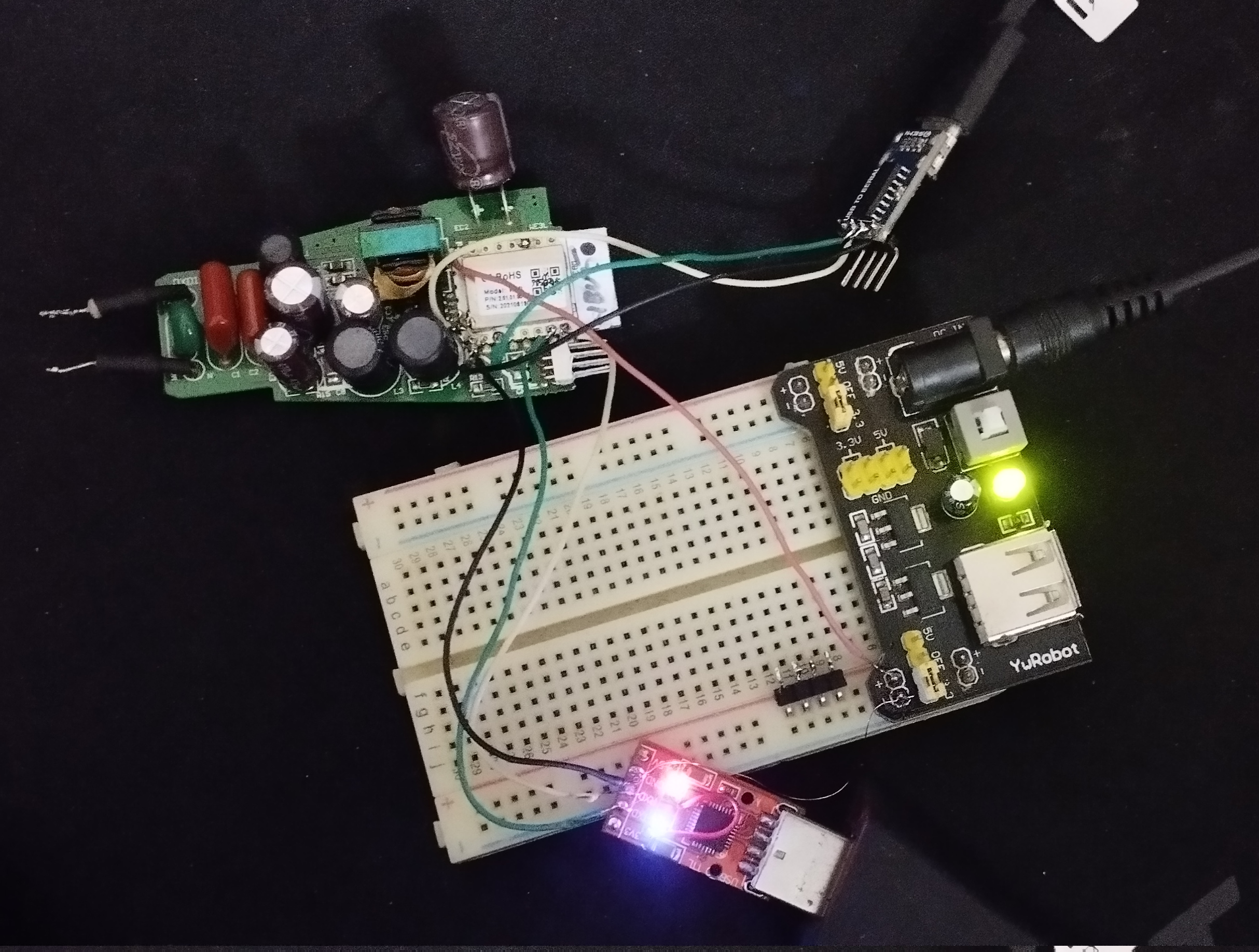

wiring for the UART flashing and UART debug

You don't need to hook up the debug UART for firmware flashing but in my case, I was getting my esphome firmware boot looping. After several hours of head scratching, it was found to be the power supply issue.

The ltchiptool guys recommand a good 3.3V power source for firmware read/write to work reliably. Their choice is the AMS1117 based power supply, which I have used here. This will do the job well, but for some reason, this particular LED bulb needs more current when running the firmware. Maybe some other IC is also consuming this 3.3V supply.

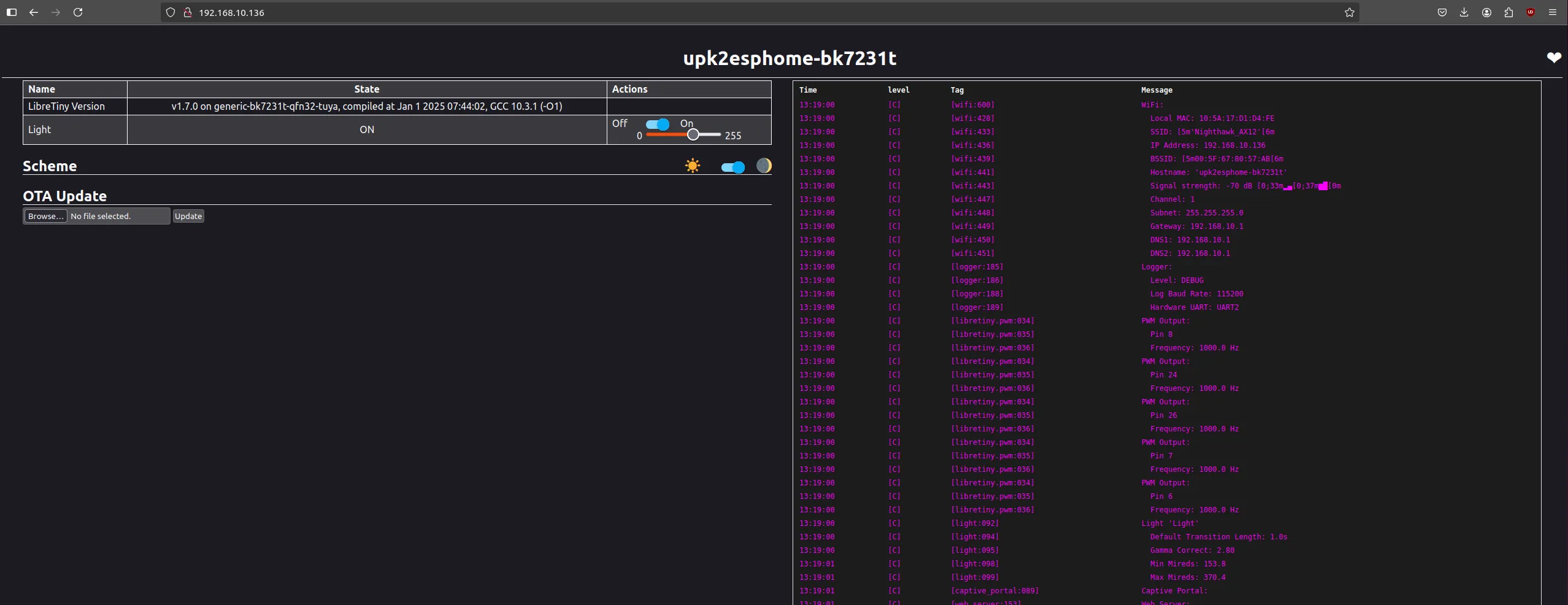

The esphome firmware runs just fine with the mains power supply.

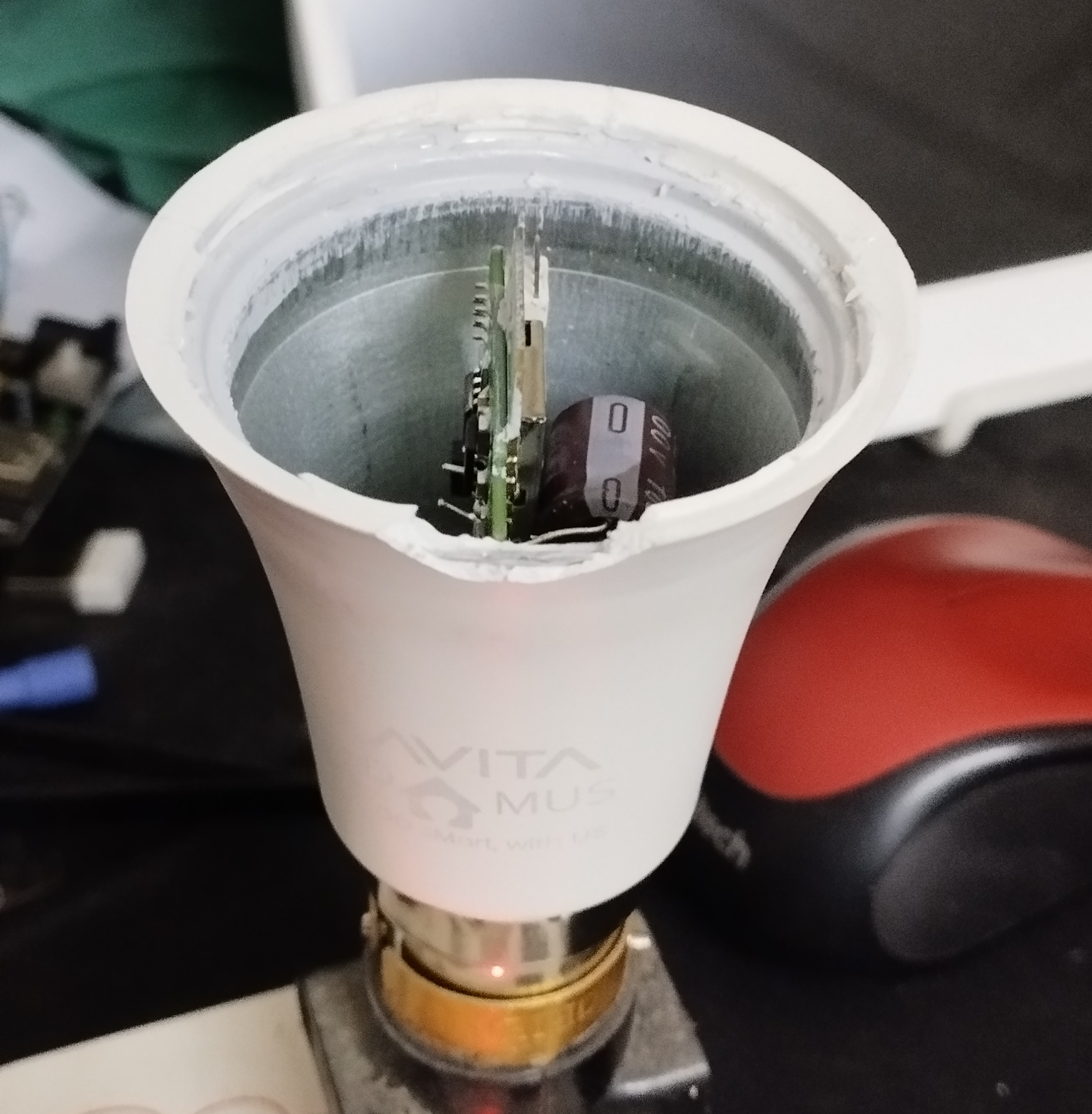

bulb with top part removed
