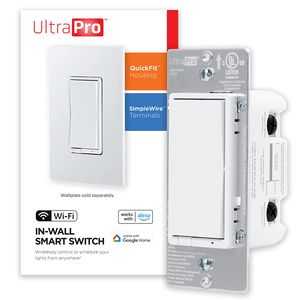

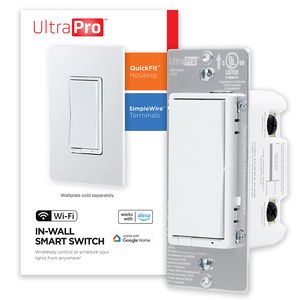

UltraPro WFD4001 Light Switch
UltraPro WFD4001 Light Switch
Device Type: switchElectrical Standard: usBoard: bk72xxDifficulty: Plug-n-flash, 2/5
GPIO Pinout
Pin | Alternate Pin Name | Function | Active |
---|---|---|---|
P6 | PWM0 | Reset Button | Low |
P8 | PWM2 | On Button | Low |
P9 | PWM3 | Off Button | Low |
P24 | PWM4 | Status Led | High |
P6 | PWM5 | Relay | High |
Tuya Cloudcutter
The board is easily flashed without disassembly using tuya-cloudcutter.
Basic Configuration
On and off will activate the relay. Holding the reset button for more than 5 seconds will reset the wifi password and revert the device to the captive portal.
# You should only need to modify the substitutions.substitutions: device_name: back-door-lights friendly_name: Back Door Lights
# Nothing below should need modification.esphome: name: ${device_name} friendly_name: ${friendly_name}
bk72xx: board: wb3s
logger:api:captive_portal:ota: - platform: esphome
wifi: # Get the SSID and password from the captive portal. ap:
output: - platform: libretiny_pwm id: output_blue_led pin: PWM4switch: - platform: gpio pin: PWM5 id: relay name: None restore_mode: RESTORE_DEFAULT_OFF device_class: switch on_turn_on: then: - light.turn_on: blue_led on_turn_off: then: - light.turn_off: blue_ledbutton: - platform: restart id: do_restart name: "Restart" - platform: factory_reset id: do_factory_reset name: "Factory Reset to AP mode"binary_sensor: - platform: gpio pin: number: PWM2 inverted: True # The on button is active low. id: input_on_button on_press: then: - switch.turn_on: relay - platform: gpio pin: number: PWM3 inverted: True # The off button is active low. id: input_off_button on_press: then: - switch.turn_off: relay - platform: gpio pin: number: PWM0 inverted: True # The config button is active low. id: input_config_button on_press: then: - while: condition: - binary_sensor.is_on: input_config_button then: - light.toggle: blue_led - delay: 250ms on_release: then: - if: condition: - switch.is_on: relay then: - light.turn_on: blue_led else: - light.turn_off: blue_led on_click: - min_length: 5s max_length: 100s then: - repeat: count: 6 then: - light.toggle: blue_led - delay: 100ms - button.press: do_factory_resetlight: - platform: status_led id: blue_led name: Blue LED output: output_blue_led disabled_by_default: True restore_mode: RESTORE_DEFAULT_OFF
