Tuya Smart Plug 16/20A with Power Monitoring

Tuya Smart Plug 16/20A with Power Monitoring

Device Type: plug
Electrical Standard: eu
Board: bk72xx
Difficulty: Soldering required, 4/5

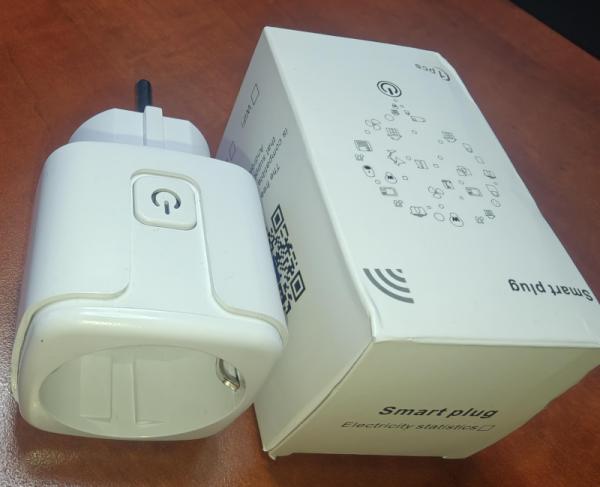

Tuya Smart Plug 16/20A

Bought on Aliexpress, looking similar to Athom Smart Plug but internals turned out much different: this one is using Tuya T34 Module chip which was already discussed on Elektroda Forum.
It is in fact a BK7231N MCU in QFN32 package (aka. LGA36, which is 36 pin if we count in the 4 bottom heatpads).

The power monitoring chip is BL0937 which is known from other Tuya designs and does not require further introduction.

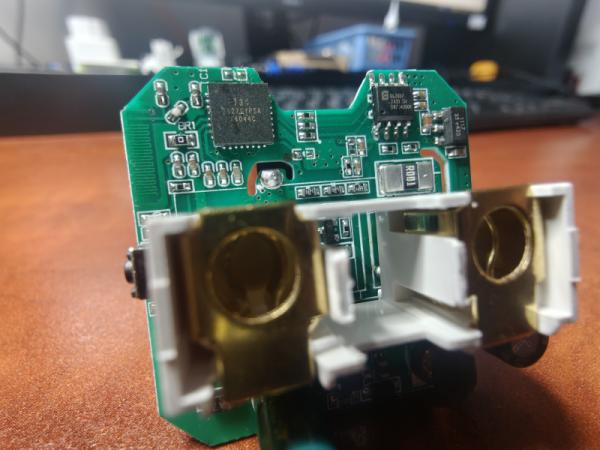

Tuya Smart Plug Closeup

Programming

Based on available documentation (links above) we know the T34 chip can be programmed using OpenBeken tools using

  • pin 25 as UART_RXD
  • pin 26 as UART_TXD
  • I also used pin 7 to trigger reset which I beleived to be CEN - it looks I was wrong and CEN is on pin 9 but for some reason my method worked as well (probably due to brown-out reset from shorting pin 7...)

No need to desolder the chip from PCB but need to solder tiny "kynar" wires to appropriate pins, which only one is easily available and two needs to be carefully soldered to the side of the chip, without shorting other pins.

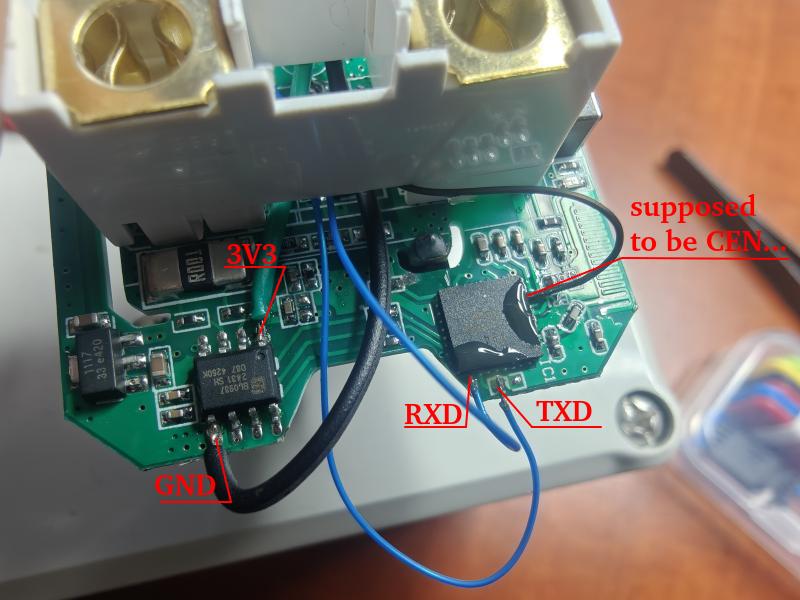

Tuya Smart Plug Programming

Of course you also need USB-to-serial converter, and 3v3 supply (I'm using power out on my USB-to-serial converter) Reflash using ltchiptool or directly with esphome upload <your-config.yaml> console command.

Note: Need to reset the chip to enter programming, ie. by shorting CEN to GND for a moment!

GPIO Pinout

PinFunction
P06BL0937 cf_pin
P07BL0937 cf1_pin
P08BL0937 sel_pin
P24Relay & LED2
P26Button (Inverted)
P28LED (Inverted)

Basic ESPHome config

Note this is only the device-specific part shown here - make sure to extend with your ESPHome-specific settings (such as wifi, passwords, OTA, etc...)

esphome:
comment: "Tuya Smart Socket EU 20A with Power Monitor"
bk72xx:
board: generic-bk7231n-qfn32-tuya # actually a T34 Tuya module
status_led:
pin:
number: P28
inverted: true
# Local button on PCB
binary_sensor:
- platform: gpio
id: button_1
pin:
number: P26
mode:
input: True
pullup: True
inverted: True
icon: 'mdi:radiobox-blank'
filters:
- delayed_on: 50ms
# Relay output
output:
- platform: gpio
pin: P24
id: relay_1
# Energy meter BL0937
sensor:
# https://esphome.io/components/sensor/hlw8012.html
- platform: hlw8012
model: BL0937
cf_pin:
number: P06
inverted: true
cf1_pin:
number: P07
inverted: true
sel_pin:
number: P08
inverted: true
current:
name: "Current"
voltage:
name: "Voltage"
power:
name: "Power"
energy:
name: "Energy"
# current_resistor: 0.001ohm
voltage_divider: 760
initial_mode: CURRENT
update_interval: 15s
change_mode_every: 4
