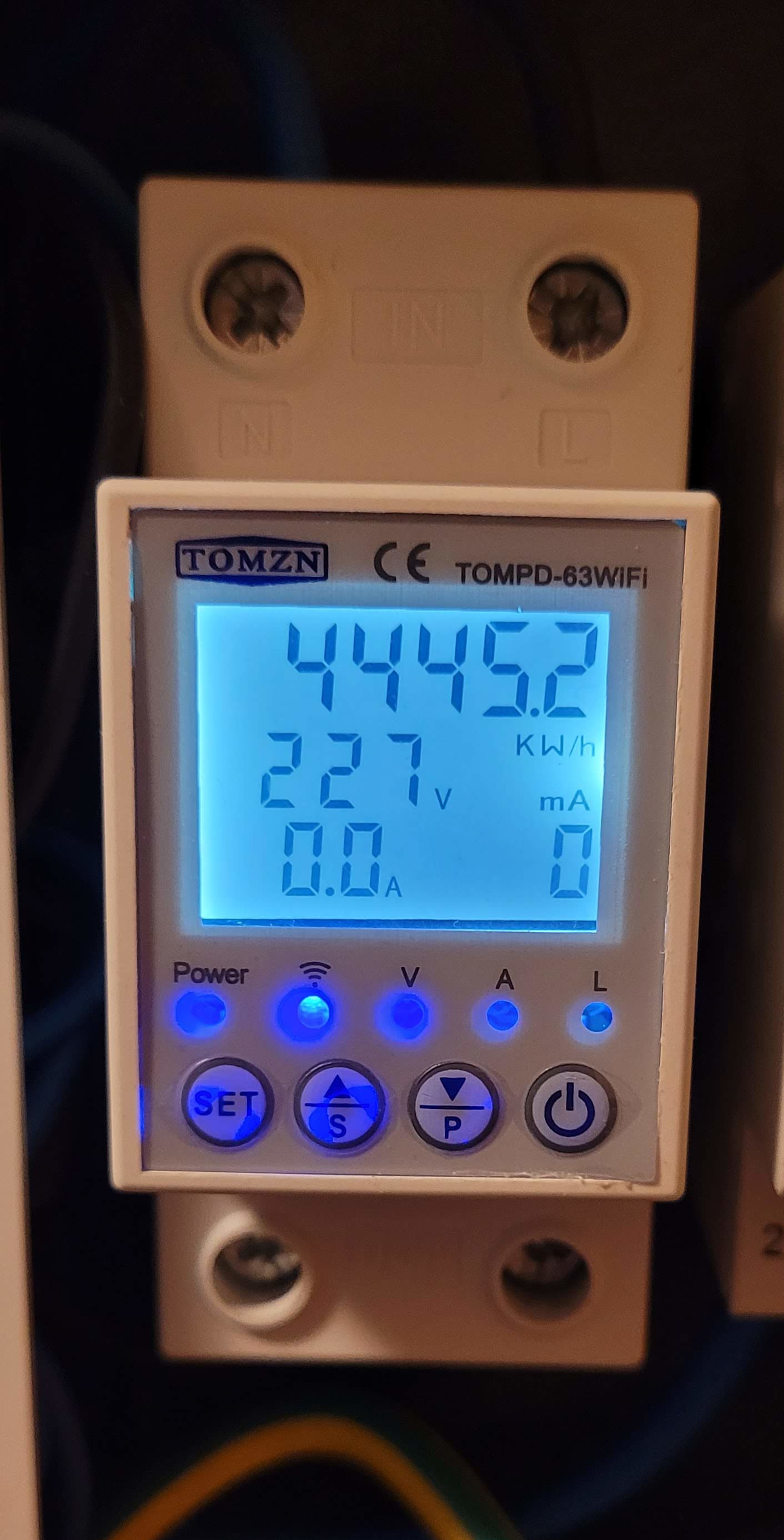

TOMZN TOMPD-63-WiFi

TOMZN TOMPD-63-WiFi

Device Type: switch
Electrical Standard: eu
Board: bk72xx
Difficulty: Soldering required, 4/5

TOMZN TOMPD-63-WiFi

Programming

Internally, it uses the TUYA CBU chip, which is based on the BK7231N.

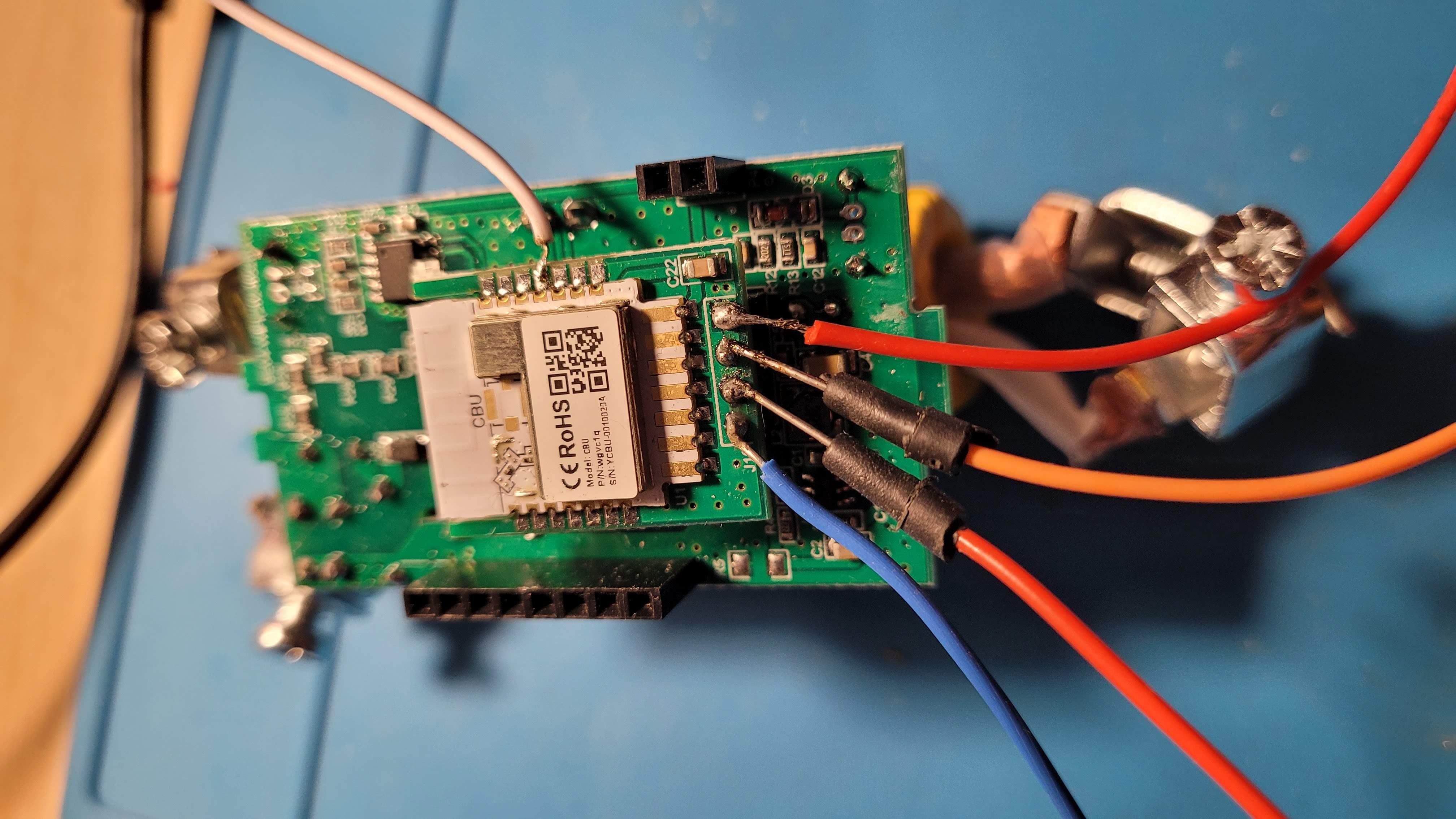

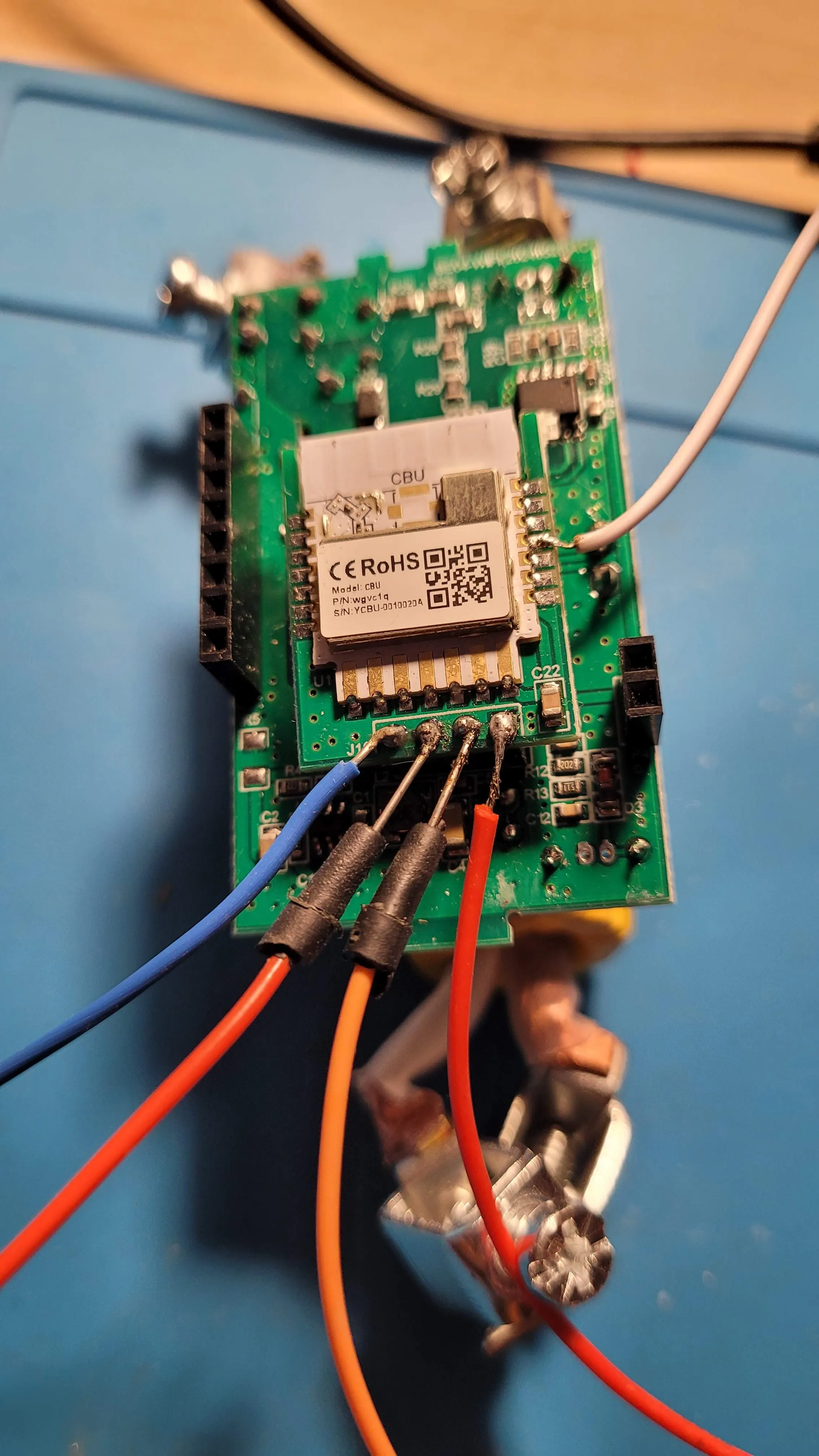

You need to solder 5 wires for the GND, +3v3, RX, TX and CEN (Reset) signals in order to connect them to a USB-to-serial (TTL) adapter.

TOMZN TOMPD-63-WiFi Wires

Of course you also need USB-to-serial converter, and +3v3 supply (I'm using power out on my USB-to-serial converter),

You can flash the device using ltchiptool or directly with esphome upload <your-config.yaml> command from the console or ESPHome web GUI

If flashing fails, desoldering the CBU chip may help by improving 3.3V line stability.

Dataponts

[01:21:47][C][tuya:041]: Tuya:
[01:21:47][C][tuya:058]: Datapoint 1: int value (value: 438)
[01:21:47][C][tuya:056]: Datapoint 11: switch (value: OFF)
[01:21:47][C][tuya:058]: Datapoint 13: int value (value: 0)
[01:21:47][C][tuya:054]: Datapoint 6: raw (value: 09.0A.00.0F.FA.00.03.59 (8))
[01:21:47][C][tuya:060]: Datapoint 19: string value (value: )
[01:21:47][C][tuya:056]: Datapoint 12: switch (value: OFF)
[01:21:47][C][tuya:056]: Datapoint 16: switch (value: ON)
[01:21:47][C][tuya:058]: Datapoint 15: int value (value: 18)
[01:21:47][C][tuya:058]: Datapoint 101: int value (value: 230)
[01:21:47][C][tuya:064]: Datapoint 9: bitmask (value: 0)
[01:21:47][C][tuya:054]: Datapoint 17: raw (value: 03.01.00.0D.04.00.00.00 (8))
[01:21:47][C][tuya:054]: Datapoint 18: raw (value: 01.01.00.1E.03.01.00.FF.04.01.00.C8 (12))
[01:21:47][C][tuya:074]: Product: '{"p":"hiow4txw9gjrys7w","v":"1.0.0","m":0}

Basic ESPHome config

esphome:
name: medidor-din-2
friendly_name: medidor-din-2
bk72xx:
board: generic-bk7231n-qfn32-tuya
# Disable logging
logger:
baud_rate: 0
uart:
baud_rate: 9600
id: uart_tuya
rx_pin: RX1
tx_pin: TX1
tuya:
uart_id: uart_tuya
on_datapoint_update:
- sensor_datapoint: 6
datapoint_type: raw
then:
- lambda: |-
ESP_LOGD("main", "on_datapoint_update %s", format_hex_pretty(x).c_str());
id(voltage).publish_state((x[0] << 8 | x[1]) * 0.1);
id(current).publish_state((x[3] << 8 | x[4]) * 0.001);
id(power).publish_state((x[6] << 8 | x[7]) * 1);
switch:
- platform: tuya
switch_datapoint: 16
name: "On"
sensor:
- platform: template
id: voltage
name: "Volt"
unit_of_measurement: "V"
icon: "mdi:sine-wave"
accuracy_decimals: 1
- platform: template
id: current
name: "Curent"
icon: "mdi:current-ac"
unit_of_measurement: "A"
accuracy_decimals: 2
- platform: template
id: power
name: "Power"
icon: "mdi:flash"
unit_of_measurement: "W"
accuracy_decimals: 0
- platform: tuya
name: "Total Energy"
sensor_datapoint: 1
unit_of_measurement: "kWh"
accuracy_decimals: 2
icon: "mdi:lightning-bolt"
filters:
- multiply: 0.01
- platform: tuya
name: "Leakage Current"
sensor_datapoint: 15
unit_of_measurement: "mA"
accuracy_decimals: 0
icon: "mdi:flash-alert"
