Tapo L900 RGB 5M Light Strip

Device Type: light
Electrical Standard: global
Board: rtl87xx
Difficulty: Soldering required, 4/5

General Notes

This configuration is for the TP-Link Tapo L900 which comes as a colour changing LED strip with controller and power supply.

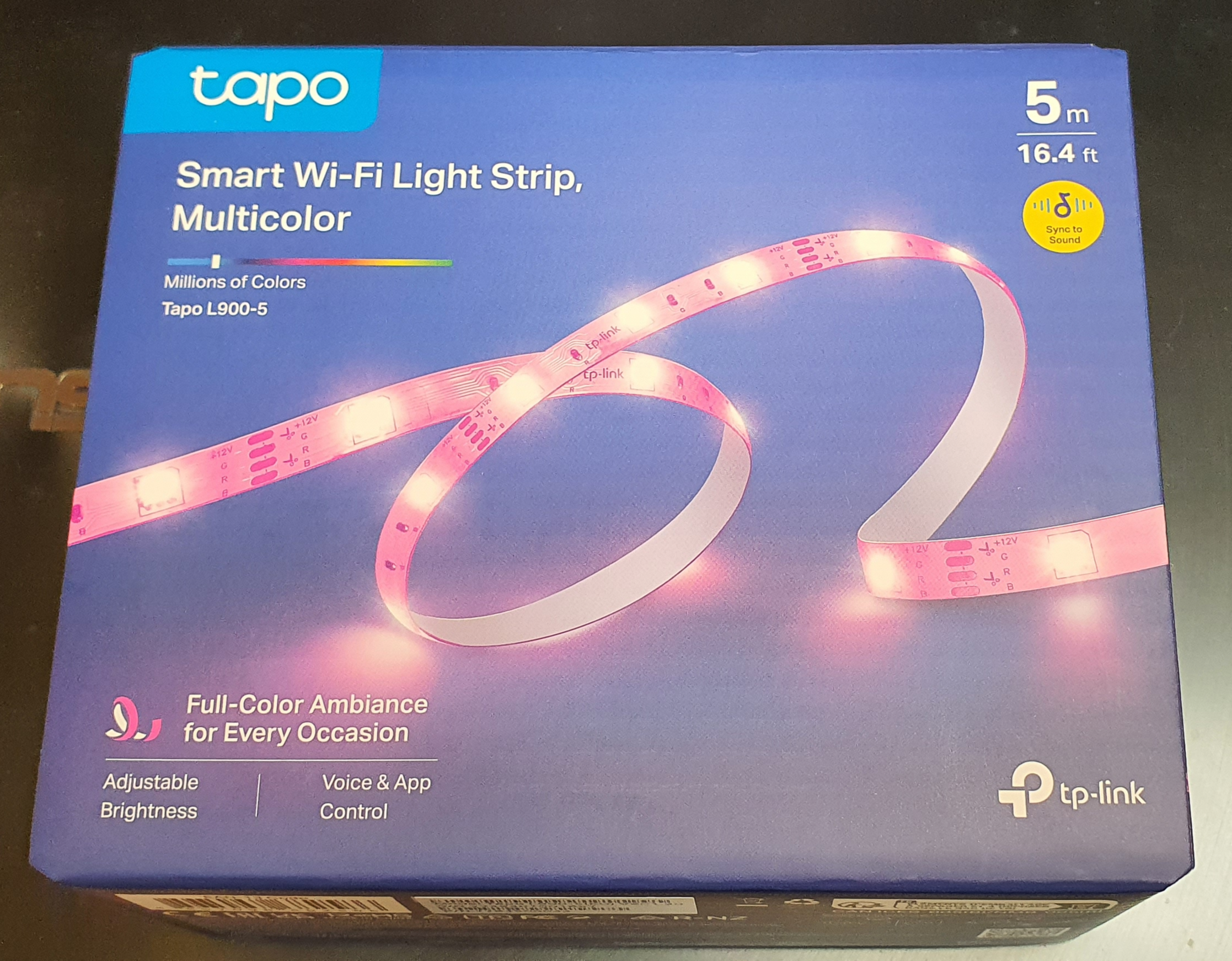

TP-Link Tapo L900 Strip Lights

Flashing Instuctions

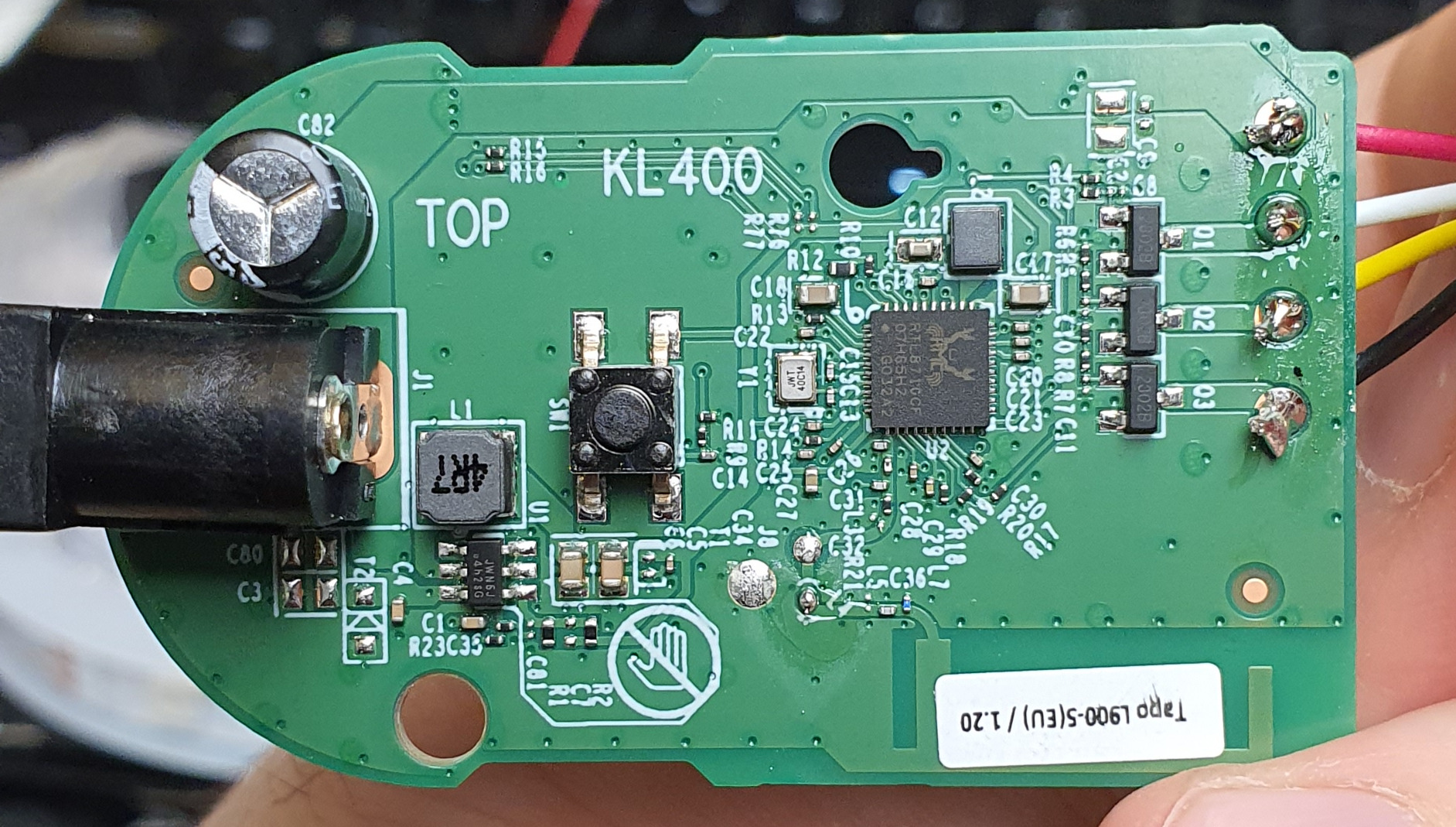

This device uses a Realtek Ameba Z2 RTL8720CF that is supported by LibreTiny.

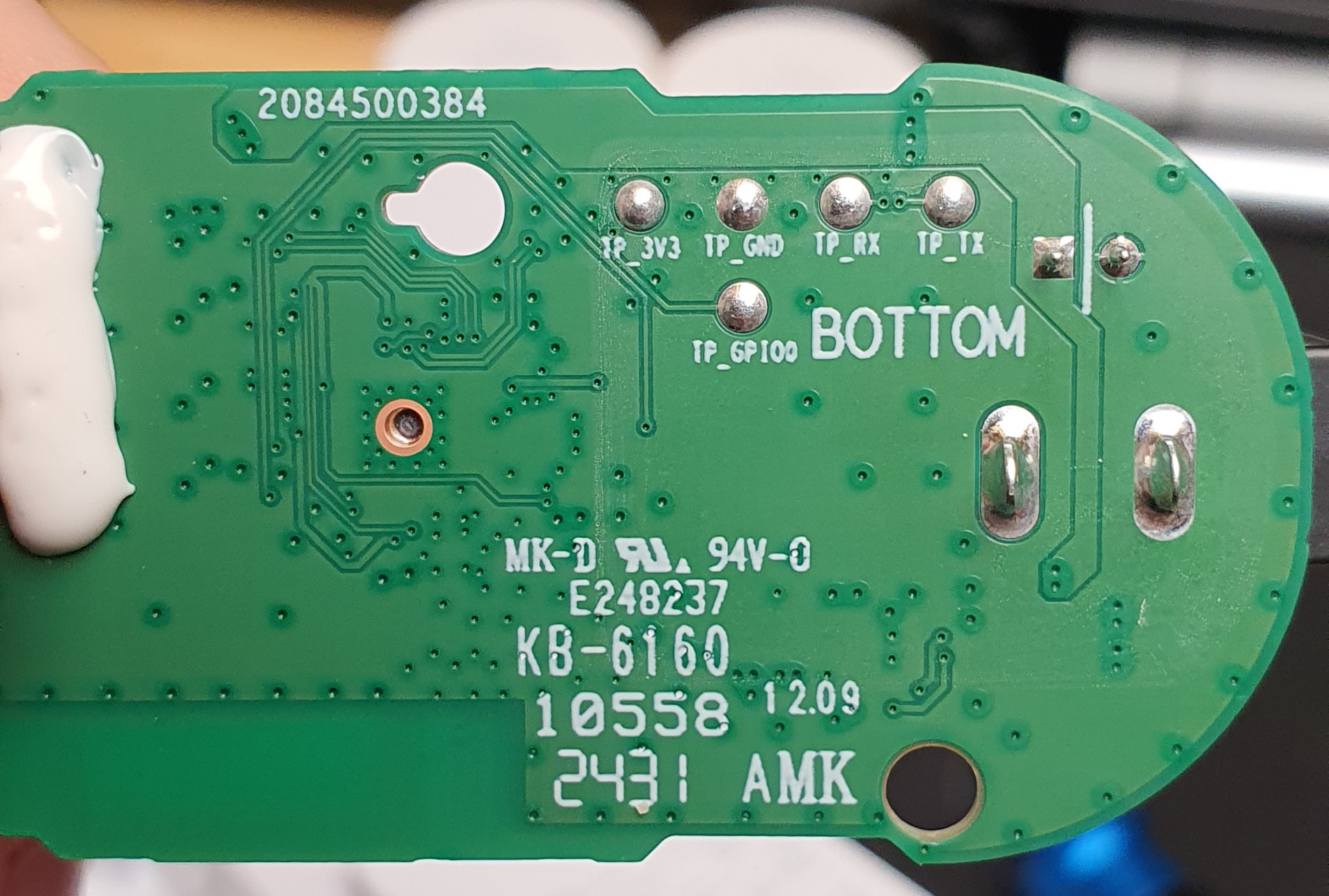

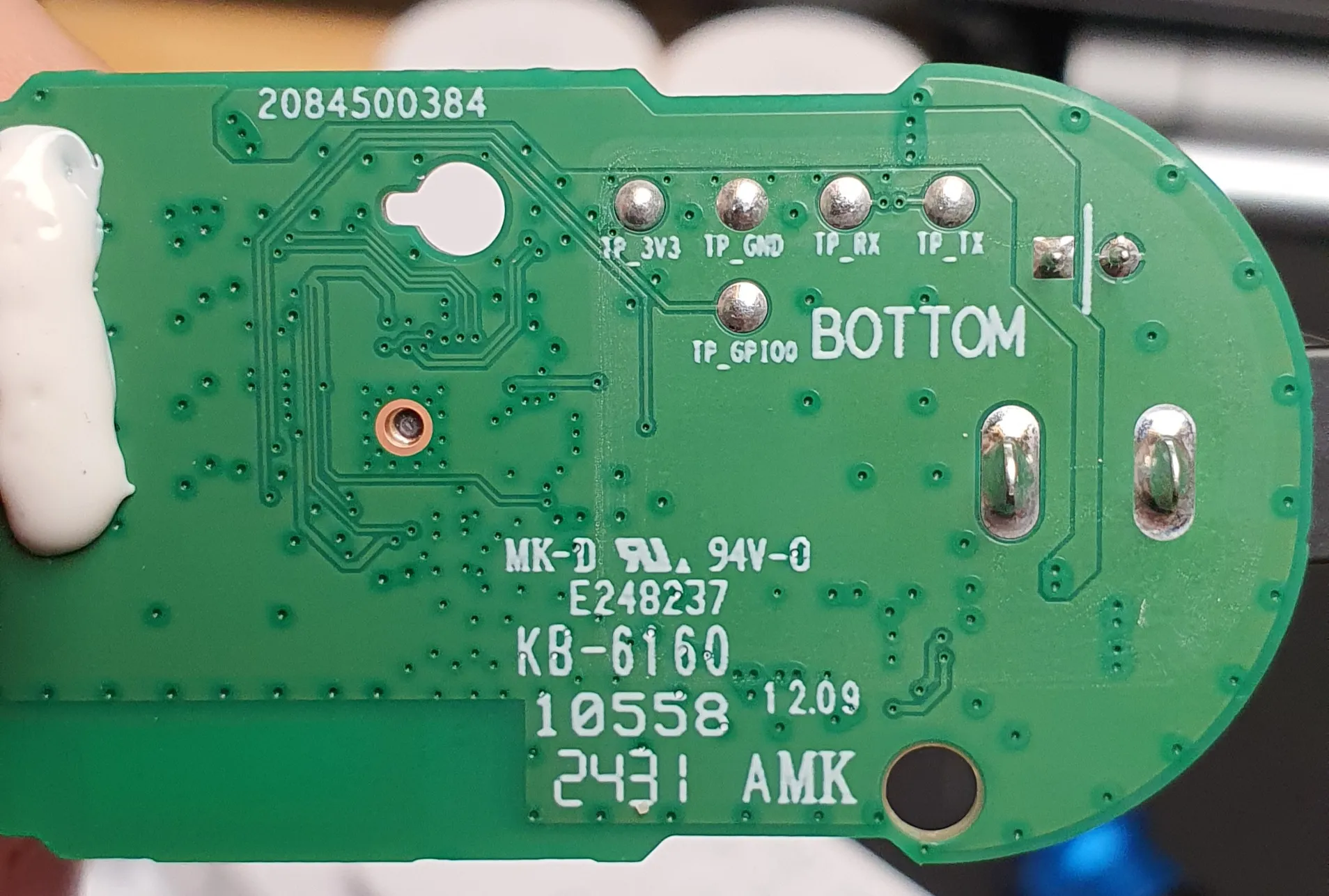

ltchiptool works to flash an ESPHome generated .UF2 firmware via a USB to serial converter soldered to the test points on the board.
As per now, prokoma's fork of ltchiptool needs to be used due to a bug.

Possible Flashing Issues

I found RTL8720CF quite a pain to read/write to. What worked for me is:
Using an external lab power supply and soldering a wire to the 3v3 test point and bumping the voltage to 3.35. GND of supply and serial converter need to be connected/shared.
Keeping the wires as short as possible ~50mm and soldering them directly beween the serial converter and the test points on the pcb.
Using terminal from Linux Debian/KDE and rebooting the system after the first attempt.
Soldering GPIO0 to the 3v3 line of the serial converter.
First plugging in the USB to the laptop and then powering on the lab supply.
Here the stock firmware dumped from this device.

GPIO Pinout

Pin	Function
PA19	Red Channel
PA18	Green Channel
PA17	Blue Channel
PA04	Button

Basic Configuration

esphome:
  name: lightstripa
  friendly_name: LightStripA

rtl87xx:
  board: generic-rtl8720cf-2mb-992k
  framework:
    version: 0.0.0
    source: https://github.com/prokoma/libretiny#55aacc8
    # loglevel: VERBOSE

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "api_encryption_key"

ota:
  - platform: esphome
    password: "ota_password"

web_server:
  port: 80
  auth:
    username: "web_server_username"
    password: "web_server_password"

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  # Enable fallback hotspot (captive portal) in case wifi connection fails
  ap:
    ssid: "Lightstripa Fallback Hotspot"
    password: "hotspot_password"

captive_portal:

output:
  - platform: libretiny_pwm
    id: output_red
    pin: PA19
  - platform: libretiny_pwm
    id: output_green
    pin: PA18
  - platform: libretiny_pwm
    id: output_blue
    pin: PA17
#  - platform: esp8266_pwm
#    id: output_white
#    pin: GPIOxx

light:
  - platform: rgb
    name: "Strip Light"
    id: strip_light
    red: output_red
    green: output_green
    blue: output_blue
#    white: output_white

binary_sensor:
  - platform: gpio
    id: strip_light_pushbutton
    pin:
      number: PA04
      mode: INPUT_PULLUP
    name: "strip_light_pushbutton"
    internal: true
    on_click:
      max_length: 400ms # Single click
      then:
        - light.toggle: strip_light
