Sonoff S60TPF

Sonoff S60TPF

Device Type: plug
Electrical Standard: eu
Board: esp32
Difficulty: Soldering required, 4/5

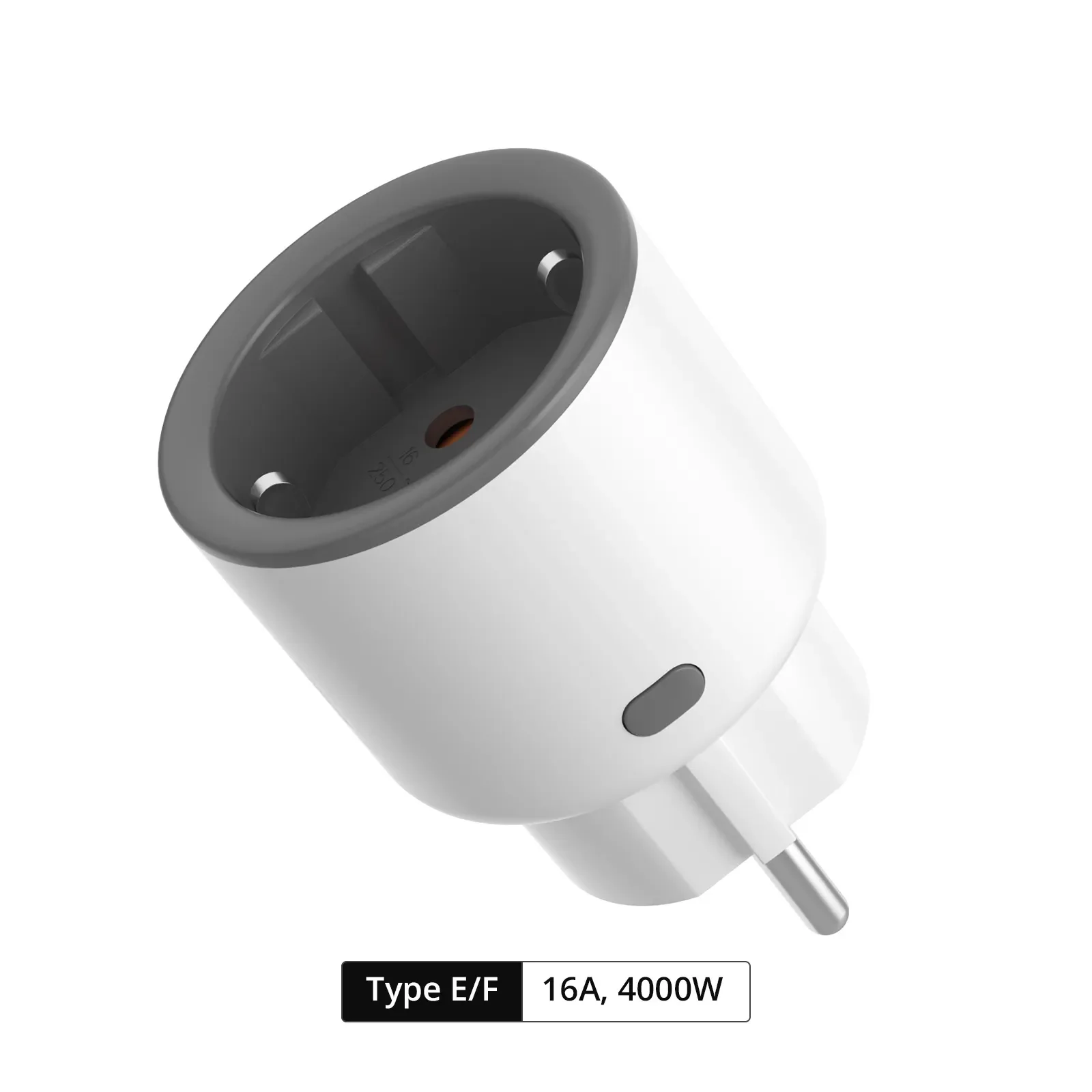

Product Image

GPIO Pinout

PinFunction
GPIO9Push Button (HIGH = off, LOW = on)
GPIO4Relay and its status red LED
GPIO5Status LED
GPIO7TX pin (CSE7759B meter)

Basic Configuration

# You should only need to modify the substitutions.
substitutions:
device_name: ssonoff-s60tpf
friendly_name: Sonoff S60TPF
# Nothing below should need modification.
esphome:
name: ${device_name}
friendly_name: ${friendly_name}
esp32:
board: esp32-c3-devkitm-1
framework:
type: esp-idf
logger:
api:
captive_portal:
ota:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
status_led:
pin:
number: GPIO5
inverted: true
switch:
- id: switch_1
platform: gpio
name: "Relay"
pin: GPIO4
restore_mode: ALWAYS_ON
binary_sensor:
- platform: gpio
id: button_1
internal: true
pin:
number: GPIO9
on_press:
- switch.toggle: switch_1
filters:
- delayed_on: 10ms
- delayed_off: 10ms
sensor:
- platform: cse7766
current:
name: ${friendly_name} Current
voltage:
name: ${friendly_name} Voltage
power:
name: ${friendly_name} Power
energy:
name: ${friendly_name} Energy
uart:
rx_pin: GPIO7
baud_rate: 4800
parity: EVEN
