Sonoff POW Origin 16Amp (POWR316)

Sonoff POW Origin 16Amp (POWR316)

Device Type: relay
Electrical Standard: global
Board: esp32
Difficulty: Disassembly required, 3/5

GPIO Pinout

PinFunction
GPIO00Push Button (HIGH = off, LOW = on)
GPIO05Wifi_LED
GPIO13Relay1
GPIO16CSE7766 Rx
GPIO18Status LED (HIGH = off, LOW = on)

Initial Setup

Remove the 4 screws at the back of the device and expose the board. The board is mounted to the front panel and can be un screwed also to install a permanent 4 pin header to attach jumper cables. Hold down the button while powering on the device to put it into bootloader mode.

Product Images

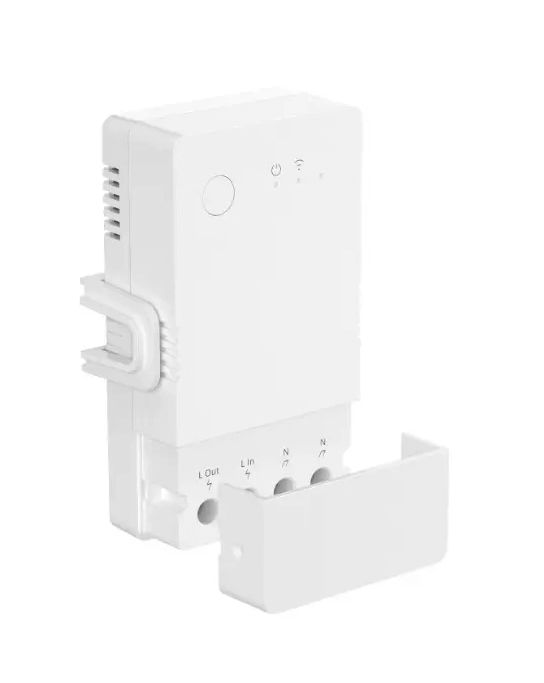

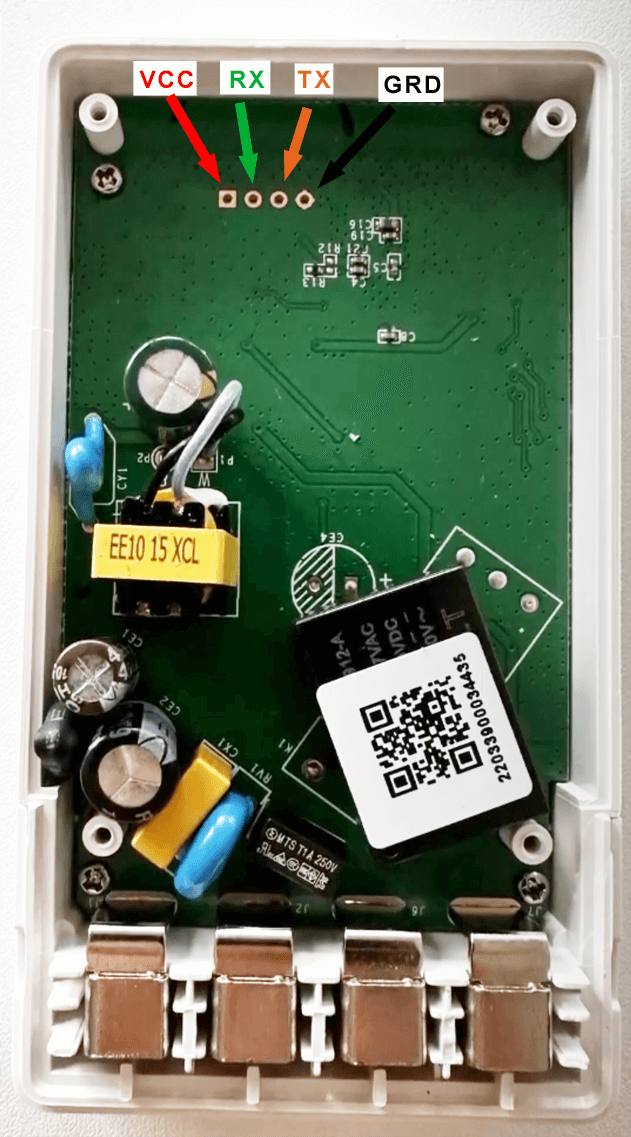

Sonoff POw Origin 16Amp External Sonoff POw Origin 16Amp Internal with labels

Basic Configuration

# Basic Config
substitutions:
  friendly_name: POW Origin 16A
  device_name: pow-origin-16a


esphome:
  name: ${device_name}
  friendly_name: ${friendly_name}

esp32:
  board: nodemcu-32s


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:
    ssid: ${device_name}
    password: !secret wifi_failover


captive_portal:


logger:


api:


ota:
  password: !secret ota_pwd


#optional
web_server:
  port: 80


uart:
  rx_pin: GPIO16
  baud_rate: 4800

sensor:
  - platform: cse7766
    update_interval: 10s
    current:
      name: ${friendly_name} Current
      id: a_sensor
    voltage:
      name: ${friendly_name} Voltage
      id: v_sensor
    power:
      name: ${friendly_name} Power
      id: w_sensor
      on_value_range:
        - above: 4.0
          then:
            - light.turn_on: switch_led
        - below: 3.0
          then:
            - light.turn_off: switch_led
    energy:
      name: ${friendly_name} Energy
      id: wh_sensor


output:
  - platform: ledc
    id: led
    pin:
      number: GPIO18
      inverted: True


light:
  - platform: monochromatic
    id: switch_led
    output: led
    internal: True
  - platform: status_led
    id: wifi_status_led
    internal: True
    pin:
      number: GPIO05
      inverted: True


binary_sensor:
  - platform: gpio
    pin:
      number: GPIO0
      mode:
        input: true
        pullup: true
      inverted: true
    name: "${dev_nice_name} - Button"
    on_press:
      - switch.toggle: relay


switch:
  - platform: gpio
    name: "${dev_nice_name} - Relay Switch"
    pin: GPIO13
    id: relay
