Sinilink XY-WFUSB USB Switch Relay

Sinilink XY-WFUSB USB Switch Relay

Device Type: relay
Electrical Standard: global
Board: esp8266

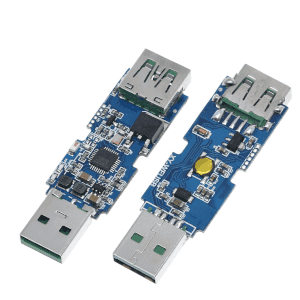

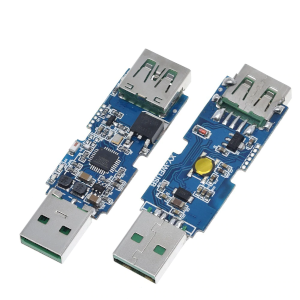

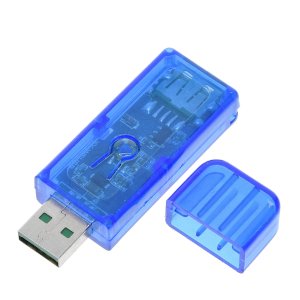

This device can be found on Aliexpress for about 5 USD.

alt text alt text

Flashing

The case can be pried open without too much difficulty. Be careful to keep both halves as parallel as possible to not break the pins that hold them together.

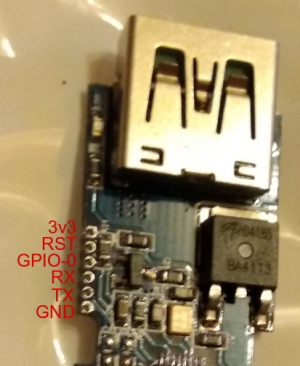

Flashing must be done by connecting an FTDI adapter to the 1.27 mm pads close to the USB female port. Here is the pinout:

alt text

The pads are small, so this is a bit tricky. I did it with some sewing pins stuck into dupont wires. It could be done as well connecting alternating pins from either side of the board.

GPIO0 has to be connected to GND to enter programming mode.

GPIO Pinout

PinFunctionNote
GPIO00User (Pad GPIO-0)Pulled-up to HIGH, boot fails if pulled LOW
GPIO01User (Pad TX)HIGH at boot, spits debug output at boot, boot fails if pulled LOW
GPIO03User (Pad RX)HIGH at boot
GPIO04Toggle ButtonPin input LOW when button is pressed
GPIO05Relay and Red LEDUSB socket power with LED is ON when pin output HIGH
GPIO14Green LEDLED is ON when pin output HIGH
GPIO16Blue LEDLED is ON when pin output HIGH

Basic Config

The following configuration mimics this Tasmota template string.

The green LED is turned on when the relay is off and vice versa. The blue LED is used as the status LED. The button toggles the state of the relay.

I had to increase the ap_timeout, this board seems to take some time to connect to the WiFi.

substitutions:
name: usb-relay
friendly_name: "USB Relay"
default_state: "RESTORE_DEFAULT_OFF"
esphome:
name: ${name}
friendly_name: "${friendly_name}"
esp8266:
board: esp01_1m
restore_from_flash: True
logger:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
fast_connect: True
power_save_mode: HIGH
ap:
ssid: "${friendly_name}"
ap_timeout: 3min
captive_portal:
api:
ota:
time:
- platform: homeassistant
# Blue LED
status_led:
pin:
number: GPIO16
# Relay
switch:
- platform: gpio
id: switch_relay
pin: GPIO5
# Green LED
- platform: gpio
pin: GPIO14
id: green_led
inverted: true # start on
# Switch template to link relay and green LED states
# LED is on when relay is off
- platform: template
id: relay
name: "${friendly_name}"
lambda: |-
if (id(switch_relay).state) {
return true;
} else {
return false;
}
turn_on_action:
- switch.turn_on:
id: green_led
- switch.turn_on:
id: switch_relay
turn_off_action:
- switch.turn_off:
id: green_led
- switch.turn_off:
id: switch_relay
# Button
binary_sensor:
- platform: gpio
id: hardware_button
pin:
number: GPIO04
mode: INPUT_PULLUP
inverted: True
on_press:
- switch.toggle: relay
# WiFi Signal Sensor
sensor:
- platform: wifi_signal
name: "WiFi Status"
update_interval: 60s
# Restart button
button:
- platform: restart
name: "Restart"

If the USB Relay controls a light, it can also be implemented like this:

output:
# Relay
- platform: gpio
id: switch_relay
pin: GPIO5
# Green LED
- platform: gpio
pin: GPIO14
id: green_led
inverted: true # start on
# Binary Output template to link relay and green LED states
# LED is on when relay is off
- platform: template
type: binary
id: relay
write_action:
if:
condition:
lambda: return state;
then:
- output.turn_on: switch_relay
- output.turn_on: green_led
else:
- output.turn_off: switch_relay
- output.turn_off: green_led
# Button
binary_sensor:
- platform: gpio
id: hardware_button
pin:
number: GPIO04
mode: INPUT_PULLUP
inverted: True
on_press:
light.toggle: "${name}"
light:
- platform: binary
name: "${friendly_name}"
id: "${name}"
output: relay
