Shelly Bulb Duo RGBW

Shelly Bulb Duo RGBW

Device Type: light
Electrical Standard: euukus
Board: esp8266

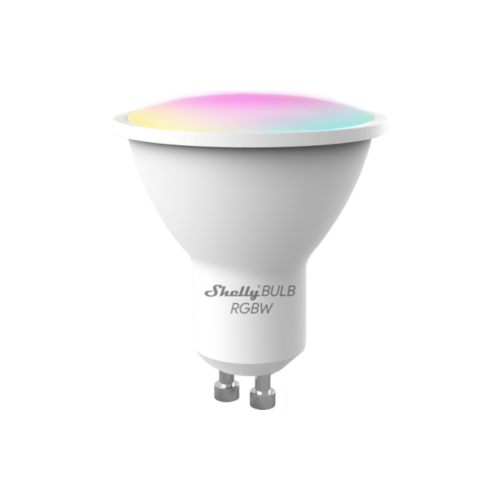

Product Image

This template was made using the Tasmota template found here with the GPIO conversion in the Tasmota docs.

GPIO Pinout

PinFunction
GPIO5PWM 4 (W)
GPIO12PWM 2 (G)
GPIO13PWM 1 (R)
GPIO14PWM 2 (B)

Configuration for RGBW

substitutions:
  device_name: "shelly-bulb-duo-rgbw"
  friendly_name: "Shelly Bulb Duo RGBW"


esphome:
  name: ${device_name}
  comment: ${friendly_name}
  platform: ESP8266
  board: esp01_1m


# Enable logging
logger:


web_server:
  port: 80


# Enable Home Assistant API
api:


ota:


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password


captive_portal:


light:
  - platform: rgbw
    name: ${friendly_name}
    red: pwm_r
    green: pwm_g
    blue: pwm_b
    white: pwm_w
    effects:
      - random:
      - strobe:
      - flicker:


output:
  - platform: esp8266_pwm
    pin: GPIO13
    frequency: 1000 Hz
    id: pwm_r


  - platform: esp8266_pwm
    pin: GPIO12
    frequency: 1000 Hz
    id: pwm_g


  - platform: esp8266_pwm
    pin: GPIO14
    frequency: 1000 Hz
    id: pwm_b


  - platform: esp8266_pwm
    pin: GPIO5
    frequency: 1000 Hz
    id: pwm_w
