M5Stack M5StickC PLUS2
M5Stack M5StickC PLUS2
Device Type: miscElectrical Standard: globalBoard: esp32Project URL: https://docs.m5stack.com/en/core/M5StickC%20PLUS2

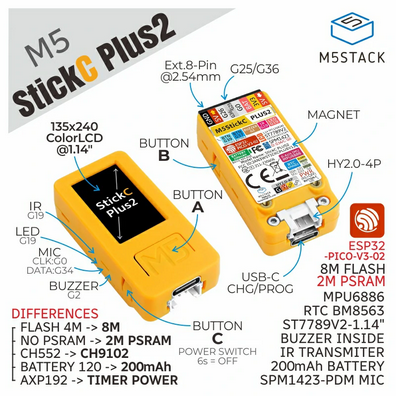

Product Images
GPIO Pinout
Pin | Function |
---|---|
GPIO37 | Button A |
GPIO39 | Button B |
GPIO35 | Button C |
GPIO19 | Internal LED/IR |
GPIO13 | SPI CLK |
GPIO15 | SPI MOSI |
GPIO21 | I2C SDA |
GPIO22 | I2C SCL |
GPIO05 | Display CS |
GPIO14 | Display DC |
GPIO12 | Display Reset |
GPIO00 | I2S CLK |
GPIO26 | I2S LRCLK |
GPIO34 | Microphone Data |
GPIO38 | Battery Level |
GPIO02 | Buzzer |
External Component
Unlike the M5StickC Plus, the Plus2 has no power management chip. Therefore, AXP192 support is not required; TFT backlight
and battery level are accessed through GPIO pins -- see below for details.
Example Configuration
substitutions: devicename: m5stickc-plus2 upper_devicename: M5StickC PLUS2
esphome: name: $devicename platform: ESP32 board: m5stick-c platformio_options: upload_speed: 115200
wifi: ssid: !secret wifi_ssid password: !secret wifi_password ap: ssid: $devicename Fallback Hotspot password: !secret wifi_password
captive_portal:
logger:
api:
ota:
# Battery voltage measured through ADC1_CH2. PLUS2 has a voltage divider,# so reading needs to be multiplied by 2sensor: - platform: adc pin: GPIO38 attenuation: 12db update_interval: 60s name: "Battery Voltage" filters: - multiply: 2.0
# Built-in 6-axis intertial measurement unit (IMU) that also includes a temperature sensor - platform: mpu6886 i2c_id: bus_a address: 0x68 update_interval: 10s accel_x: name: "MPU6886 Accel X" accel_y: name: "MPU6886 Accel Y" accel_z: name: "MPU6886 Accel z" gyro_x: name: "MPU6886 Gyro X" gyro_y: name: "MPU6886 Gyro Y" gyro_z: name: "MPU6886 Gyro z" temperature: name: "MPU6886 Temperature"
binary_sensor: # Turn on display backlight while Button A is pressed - platform: gpio pin: number: GPIO37 inverted: false name: ${upper_devicename} Button A on_press: then: - light.turn_on: display_bl on_release: then: - light.turn_off: display_bl
# Play 1000Hz tone through buzzer while Button B is pressed - platform: gpio pin: number: GPIO39 inverted: true name: ${upper_devicename} Button B on_press: then: - output.turn_on: buzzer - output.ledc.set_frequency: id: buzzer frequency: "1000Hz" - output.set_level: id: buzzer level: "50%"
on_release: then: - output.turn_off: buzzer
light: - platform: monochromatic output: builtin_led name: ${upper_devicename} Led id: led1
- platform: monochromatic output: backlight name: ${upper_devicename} Backlight id: display_bl
output: - platform: ledc pin: 10 inverted: true id: builtin_led
- platform: ledc pin: 2 inverted: true id: buzzer
- platform: ledc pin: 27 inverted: true id: backlight
spi: clk_pin: GPIO13 mosi_pin: GPIO15
i2c: - id: bus_a sda: GPIO21 scl: GPIO22 scan: True
font: - file: "gfonts://Roboto" id: roboto size: 18
color: - id: my_white red: 100% green: 100% blue: 100%
# 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2display: - platform: st7789v model: TTGO TDisplay 135x240 cs_pin: GPIO5 dc_pin: GPIO14 reset_pin: GPIO12 rotation: 270 lambda: |- it.print(80, 0, id(roboto), id(my_white), TextAlign::TOP_CENTER, "M5Stick Test");
# note: Audio hasn't been testedi2s_audio: id: bus_i2s i2s_lrclk_pin: G26 i2s_bclk_pin: G0
microphone: - platform: i2s_audio i2s_din_pin: GPIO34 i2s_audio_id: bus_i2s adc_type: external pdm: true id: mic
