LinkNodeR4 - 4 Relay ESP8266

LinkNodeR4 - 4 Relay ESP8266

Device Type: relay
Electrical Standard: global
Board: esp8266

Product Images

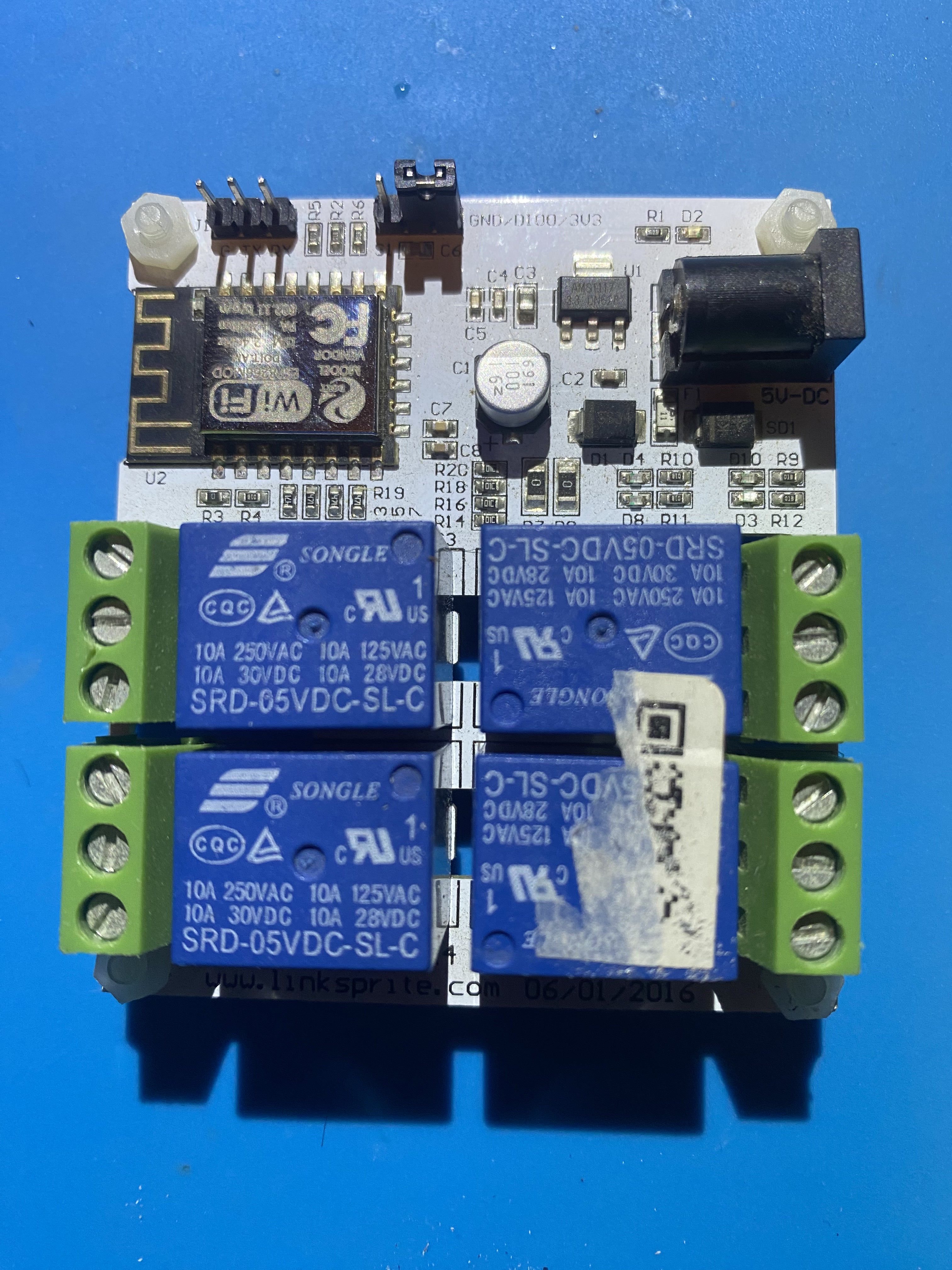

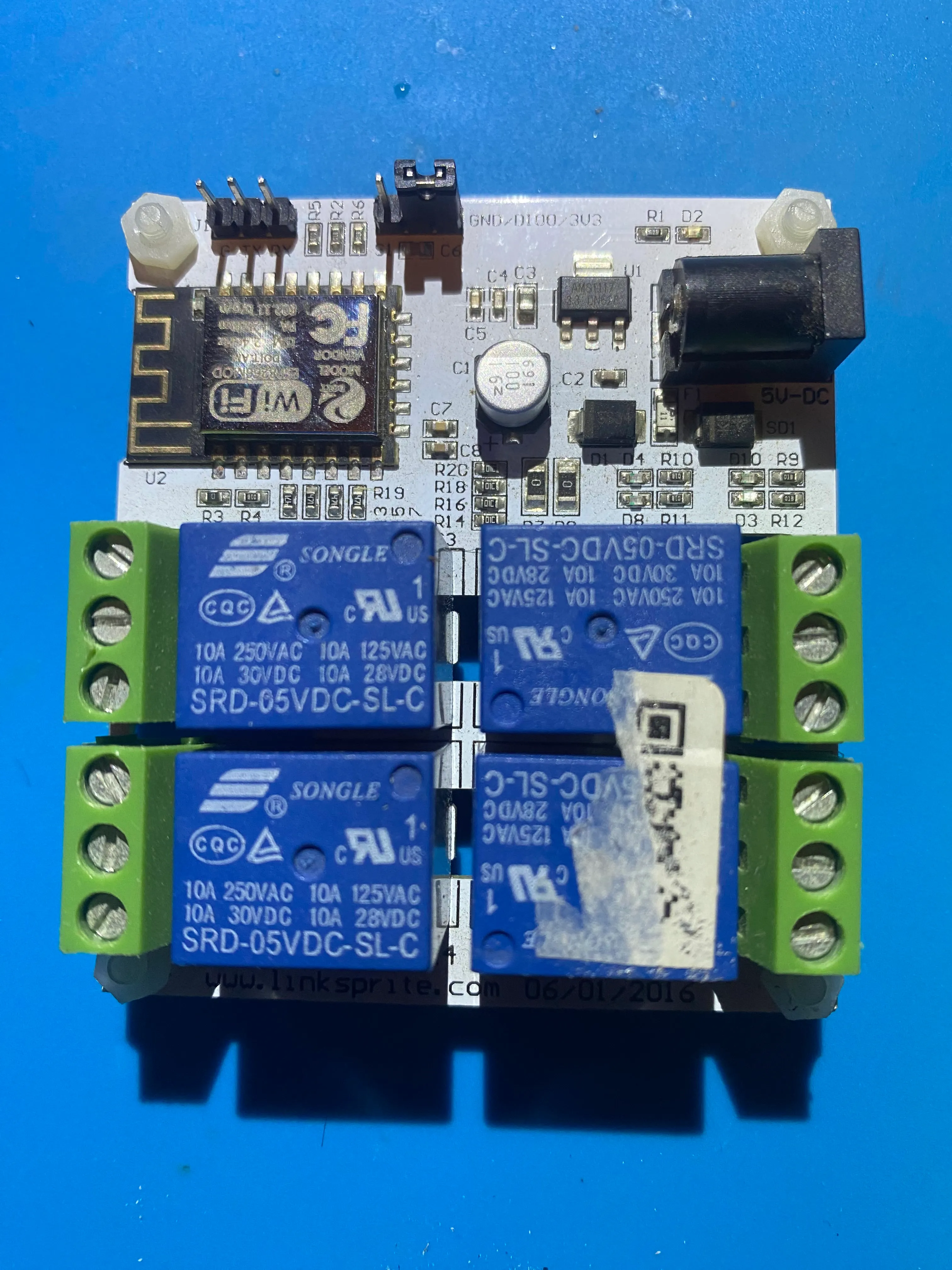

LinkNodeR4 Device

GPIO Pinout

PinFunction
GPIO2Status LED (active low)
GPIO12Relay 1 (Switch)
GPIO13Relay 2 (Switch)
GPIO14Relay 3 (Switch)
GPIO16Relay 4 (Switch)

Basic Configuration

substitutions:
name: "esphome-linknoder4-01"
friendly_name: "LinkNodeR4-01"
esphome:
name: ${name}
friendly_name: ${friendly_name}
esp8266:
board: esp12e
wifi:
logger:
api:
ota:
status_led:
pin:
number: GPIO2
inverted: True
switch:
- platform: gpio
pin: GPIO12
id: relay1
name: "${friendly_name} Relay 1"
- platform: gpio
pin: GPIO13
id: relay2
name: "${friendly_name} Relay 2"
- platform: gpio
pin: GPIO14
id: relay3
name: "${friendly_name} Relay 3"
- platform: gpio
pin: GPIO16
id: relay4
name: "${friendly_name} Relay 4"
