Ledvance E27 RGBW Light 806lm

Ledvance E27 RGBW Light 806lm

Device Type: light
Electrical Standard: eu
Board: bk27xx

Product ID: AC33911

Can be flashed with esphome kickstart via tuya-cloudcutter!!

Product Images

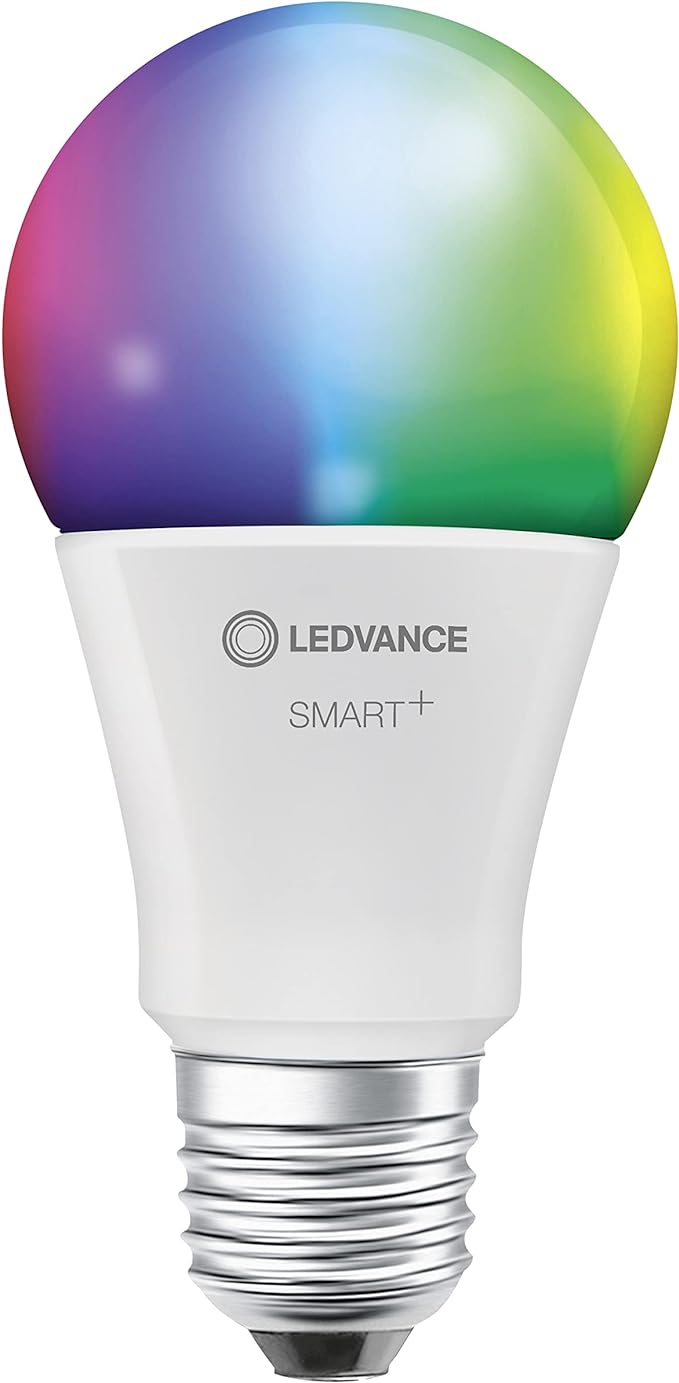

Ledvance E27 RGBW Light

GPIO Pinout

FunctionGPIO-Pin
PWM_redP7
PWM_greenP8
PWM_blueP9
PWM_whiteP24

Basic Configuration

esphome:
  name: ledvance-e27-rgbw
  comment: Ledvance E27 RGBW Bulb
  friendly_name: Ledvance E27 RGBW Bulb


bk72xx:
  board: generic-bk7231t-qfn32-tuya


# Make sure logging is not using the serial port
logger:
  baud_rate: 0

# Enable Home Assistant API
api:


ota:
  - platform: esphome


# WiFi connection
wifi:
  ap:


captive_portal:


# Enable Web server
web_server:


output:
  - platform: libretiny_pwm
    id: output_green
    pin: P8
  - platform: libretiny_pwm
    id: output_blue
    pin: P9
  - platform: libretiny_pwm
    id: output_red
    pin: P7
  - platform: libretiny_pwm
    id: output_white
    pin: P24


light:
  - platform: rgbw
    id: light_rgbw
    name: None
    color_interlock: true
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white
    effects:
      - random:
          name: "Random"
      - flicker:
          name: "Flicker"
