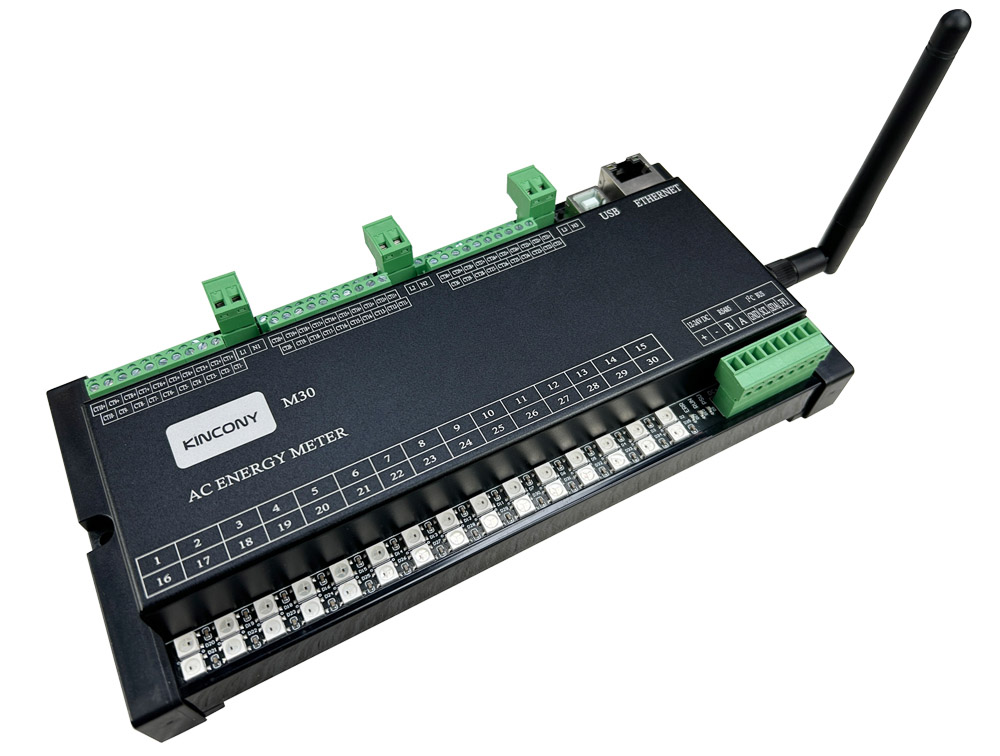

KinCony-M30
KinCony-M30
Device Type: sensorElectrical Standard: globalBoard: esp32
Resources
ESPHome Configuration
Here is an example YAML configuration for the KinCony-KC868-M16v2 board with custom sensor integration.
substitutions:
max_current_range1: "10" max_current_range2: "10" max_current_range3: "10" max_current_range4: "10" max_current_range5: "10" max_current_range6: "10" max_current_range7: "10" max_current_range8: "10" max_current_range9: "10" max_current_range10: "10" max_current_range11: "10" max_current_range12: "10" max_current_range13: "10" max_current_range14: "10" max_current_range15: "10" max_current_range16: "10" max_current_range17: "10" max_current_range18: "10" max_current_range19: "10" max_current_range20: "10" max_current_range21: "10" max_current_range22: "10" max_current_range23: "10" max_current_range24: "10" max_current_range25: "10" max_current_range26: "10" max_current_range27: "10" max_current_range28: "10" max_current_range29: "10" max_current_range30: "10"
esphome: name: m30 friendly_name: m30
esp32: board: esp32dev framework: type: arduino
# Enable logginglogger: # baud_rate: 0
# Enable Home Assistant APIapi:
ota: - platform: esphome
ethernet: type: LAN8720 mdc_pin: GPIO23 mdio_pin: GPIO18 clk_mode: GPIO17_OUT phy_addr: 0
uart: id: modbus_uart rx_pin: 32 tx_pin: 33 baud_rate: 115200 stop_bits: 1 data_bits: 8 parity: NONE
modbus: id: modbus_hub uart_id: modbus_uart
modbus_controller: - id: modbus_hub_m30 address: 1 modbus_id: modbus_hub update_interval: 5s
sensor: - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 100 register_type: holding name: m30_1_current_1 id: m30_1_current_1 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_1).state; float red = (current - 0.0) / ${max_current_range1}; float green = (${max_current_range1} - current) / ${max_current_range1}; float blue = 0.0;
auto call = id(M30_LED1).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 101 register_type: holding name: m30_1_current_2 id: m30_1_current_2 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_2).state; float red = (current - 0.0) / ${max_current_range2}; float green = (${max_current_range2} - current) / ${max_current_range2}; float blue = 0.0;
auto call = id(M30_LED2).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 102 register_type: holding name: m30_1_current_3 id: m30_1_current_3 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_3).state; float red = (current - 0.0) / ${max_current_range3}; float green = (${max_current_range3} - current) / ${max_current_range3}; float blue = 0.0;
auto call = id(M30_LED3).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 103 register_type: holding name: m30_1_current_4 id: m30_1_current_4 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_4).state; float red = (current - 0.0) / ${max_current_range4}; float green = (${max_current_range4} - current) / ${max_current_range4}; float blue = 0.0;
auto call = id(M30_LED4).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 104 register_type: holding name: m30_1_current_5 id: m30_1_current_5 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_5).state; float red = (current - 0.0) / ${max_current_range5}; float green = (${max_current_range5} - current) / ${max_current_range5}; float blue = 0.0;
auto call = id(M30_LED5).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 105 register_type: holding name: m30_1_current_6 id: m30_1_current_6 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_6).state; float red = (current - 0.0) / ${max_current_range6}; float green = (${max_current_range6} - current) / ${max_current_range6}; float blue = 0.0;
auto call = id(M30_LED6).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 106 register_type: holding name: m30_1_current_7 id: m30_1_current_7 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_7).state; float red = (current - 0.0) / ${max_current_range7}; float green = (${max_current_range7} - current) / ${max_current_range7}; float blue = 0.0;
auto call = id(M30_LED7).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 107 register_type: holding name: m30_1_current_8 id: m30_1_current_8 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_8).state; float red = (current - 0.0) / ${max_current_range8}; float green = (${max_current_range8} - current) / ${max_current_range8}; float blue = 0.0;
auto call = id(M30_LED8).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 108 register_type: holding name: m30_1_current_9 id: m30_1_current_9 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_9).state; float red = (current - 0.0) / ${max_current_range9}; float green = (${max_current_range9} - current) / ${max_current_range9}; float blue = 0.0;
auto call = id(M30_LED9).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 109 register_type: holding name: m30_1_current_10 id: m30_1_current_10 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_1_current_10).state; float red = (current - 0.0) / ${max_current_range10}; float green = (${max_current_range10} - current) / ${max_current_range10}; float blue = 0.0;
auto call = id(M30_LED10).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 110 register_type: holding name: m30_1_voltage id: m30_1_voltage unit_of_measurement: V accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 111 register_type: holding name: m30_1_watt_1 id: m30_1_watt_1 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 112 register_type: holding name: m30_1_watt_2 id: m30_1_watt_2 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 113 register_type: holding name: m30_1_watt_3 id: m30_1_watt_3 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 114 register_type: holding name: m30_1_watt_4 id: m30_1_watt_4 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 115 register_type: holding name: m30_1_watt_5 id: m30_1_watt_5 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 116 register_type: holding name: m30_1_watt_6 id: m30_1_watt_6 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 117 register_type: holding name: m30_1_watt_7 id: m30_1_watt_7 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 118 register_type: holding name: m30_1_watt_8 id: m30_1_watt_8 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 119 register_type: holding name: m30_1_watt_9 id: m30_1_watt_9 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 120 register_type: holding name: m30_1_watt_10 id: m30_1_watt_10 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 121 register_type: holding name: m30_1_energy_1 id: m30_1_energy_1 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 122 register_type: holding name: m30_1_energy_2 id: m30_1_energy_2 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 123 register_type: holding name: m30_1_energy_3 id: m30_1_energy_3 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 124 register_type: holding name: m30_1_energy_4 id: m30_1_energy_4 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 125 register_type: holding name: m30_1_energy_5 id: m30_1_energy_5 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 126 register_type: holding name: m30_1_energy_6 id: m30_1_energy_6 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 127 register_type: holding name: m30_1_energy_7 id: m30_1_energy_7 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 128 register_type: holding name: m30_1_energy_8 id: m30_1_energy_8 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 129 register_type: holding name: m30_1_energy_9 id: m30_1_energy_9 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 130 register_type: holding name: m30_1_energy_10 id: m30_1_energy_10 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 131 register_type: holding name: m30_1_energy_sum id: m30_1_energy_sum unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 132 register_type: holding name: m30_1_period id: m30_1_period unit_of_measurement: Hz accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 133 register_type: holding name: m30_1_tps_1 id: m30_1_tps_1 unit_of_measurement: °C accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 # - platform: modbus_controller # modbus_controller_id: modbus_hub_m30 # address: 134 # register_type: holding # name: m30_1_tps_2 # id: m30_1_tps_2 # unit_of_measurement: °C # accuracy_decimals: 1 # value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 200 register_type: holding name: m30_2_current_1 id: m30_2_current_1 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_1).state; float red = (current - 0.0) / ${max_current_range11}; float green = (${max_current_range11} - current) / ${max_current_range11}; float blue = 0.0;
auto call = id(M30_LED11).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 201 register_type: holding name: m30_2_current_2 id: m30_2_current_2 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_2).state; float red = (current - 0.0) / ${max_current_range12}; float green = (${max_current_range12} - current) / ${max_current_range12}; float blue = 0.0;
auto call = id(M30_LED12).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 202 register_type: holding name: m30_2_current_3 id: m30_2_current_3 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_3).state; float red = (current - 0.0) / ${max_current_range13}; float green = (${max_current_range13} - current) / ${max_current_range13}; float blue = 0.0;
auto call = id(M30_LED13).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 203 register_type: holding name: m30_2_current_4 id: m30_2_current_4 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_4).state; float red = (current - 0.0) / ${max_current_range14}; float green = (${max_current_range14} - current) / ${max_current_range14}; float blue = 0.0;
auto call = id(M30_LED14).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 204 register_type: holding name: m30_2_current_5 id: m30_2_current_5 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_5).state; float red = (current - 0.0) / ${max_current_range15}; float green = (${max_current_range15} - current) / ${max_current_range15}; float blue = 0.0;
auto call = id(M30_LED15).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 205 register_type: holding name: m30_2_current_6 id: m30_2_current_6 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_6).state; float red = (current - 0.0) / ${max_current_range16}; float green = (${max_current_range16} - current) / ${max_current_range16}; float blue = 0.0;
auto call = id(M30_LED16).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 206 register_type: holding name: m30_2_current_7 id: m30_2_current_7 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_7).state; float red = (current - 0.0) / ${max_current_range17}; float green = (${max_current_range17} - current) / ${max_current_range17}; float blue = 0.0;
auto call = id(M30_LED17).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 207 register_type: holding name: m30_2_current_8 id: m30_2_current_8 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_8).state; float red = (current - 0.0) / ${max_current_range18}; float green = (${max_current_range18} - current) / ${max_current_range18}; float blue = 0.0;
auto call = id(M30_LED18).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 208 register_type: holding name: m30_2_current_9 id: m30_2_current_9 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_9).state; float red = (current - 0.0) / ${max_current_range19}; float green = (${max_current_range19} - current) / ${max_current_range19}; float blue = 0.0;
auto call = id(M30_LED19).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 209 register_type: holding name: m30_2_current_10 id: m30_2_current_10 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_2_current_10).state; float red = (current - 0.0) / ${max_current_range20}; float green = (${max_current_range20} - current) / ${max_current_range20}; float blue = 0.0;
auto call = id(M30_LED20).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 210 register_type: holding name: m30_2_voltage id: m30_2_voltage unit_of_measurement: V accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 211 register_type: holding name: m30_2_watt_1 id: m30_2_watt_1 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 212 register_type: holding name: m30_2_watt_2 id: m30_2_watt_2 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 213 register_type: holding name: m30_2_watt_3 id: m30_2_watt_3 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 214 register_type: holding name: m30_2_watt_4 id: m30_2_watt_4 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 215 register_type: holding name: m30_2_watt_5 id: m30_2_watt_5 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 216 register_type: holding name: m30_2_watt_6 id: m30_2_watt_6 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 217 register_type: holding name: m30_2_watt_7 id: m30_2_watt_7 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 218 register_type: holding name: m30_2_watt_8 id: m30_2_watt_8 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 219 register_type: holding name: m30_2_watt_9 id: m30_2_watt_9 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 220 register_type: holding name: m30_2_watt_10 id: m30_2_watt_10 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 221 register_type: holding name: m30_2_energy_1 id: m30_2_energy_1 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 222 register_type: holding name: m30_2_energy_2 id: m30_2_energy_2 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 223 register_type: holding name: m30_2_energy_3 id: m30_2_energy_3 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 224 register_type: holding name: m30_2_energy_4 id: m30_2_energy_4 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 225 register_type: holding name: m30_2_energy_5 id: m30_2_energy_5 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 226 register_type: holding name: m30_2_energy_6 id: m30_2_energy_6 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 227 register_type: holding name: m30_2_energy_7 id: m30_2_energy_7 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 228 register_type: holding name: m30_2_energy_8 id: m30_2_energy_8 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 229 register_type: holding name: m30_2_energy_9 id: m30_2_energy_9 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 230 register_type: holding name: m30_2_energy_10 id: m30_2_energy_10 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 231 register_type: holding name: m30_2_energy_sum id: m30_2_energy_sum unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 232 register_type: holding name: m30_2_period id: m30_2_period unit_of_measurement: Hz accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 233 register_type: holding name: m30_2_tps_1 id: m30_2_tps_1 unit_of_measurement: °C accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 # - platform: modbus_controller # modbus_controller_id: modbus_hub_m30 # address: 234 # register_type: holding # name: m30_2_tps_2 # id: m30_2_tps_2 # unit_of_measurement: °C # accuracy_decimals: 1 # value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 300 register_type: holding name: m30_3_current_1 id: m30_3_current_1 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_1).state; float red = (current - 0.0) / ${max_current_range21}; float green = (${max_current_range21} - current) / ${max_current_range21}; float blue = 0.0;
auto call = id(M30_LED21).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 301 register_type: holding name: m30_3_current_2 id: m30_3_current_2 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_2).state; float red = (current - 0.0) / ${max_current_range22}; float green = (${max_current_range22} - current) / ${max_current_range22}; float blue = 0.0;
auto call = id(M30_LED22).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 302 register_type: holding name: m30_3_current_3 id: m30_3_current_3 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_3).state; float red = (current - 0.0) / ${max_current_range23}; float green = (${max_current_range23} - current) / ${max_current_range23}; float blue = 0.0;
auto call = id(M30_LED23).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 303 register_type: holding name: m30_3_current_4 id: m30_3_current_4 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_4).state; float red = (current - 0.0) / ${max_current_range24}; float green = (${max_current_range24} - current) / ${max_current_range24}; float blue = 0.0;
auto call = id(M30_LED24).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 304 register_type: holding name: m30_3_current_5 id: m30_3_current_5 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_5).state; float red = (current - 0.0) / ${max_current_range25}; float green = (${max_current_range25} - current) / ${max_current_range25}; float blue = 0.0;
auto call = id(M30_LED25).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 305 register_type: holding name: m30_3_current_6 id: m30_3_current_6 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_6).state; float red = (current - 0.0) / ${max_current_range26}; float green = (${max_current_range26} - current) / ${max_current_range26}; float blue = 0.0;
auto call = id(M30_LED26).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 306 register_type: holding name: m30_3_current_7 id: m30_3_current_7 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_7).state; float red = (current - 0.0) / ${max_current_range27}; float green = (${max_current_range27} - current) / ${max_current_range27}; float blue = 0.0;
auto call = id(M30_LED27).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 307 register_type: holding name: m30_3_current_8 id: m30_3_current_8 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_8).state; float red = (current - 0.0) / ${max_current_range28}; float green = (${max_current_range28} - current) / ${max_current_range28}; float blue = 0.0;
auto call = id(M30_LED28).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 308 register_type: holding name: m30_3_current_9 id: m30_3_current_9 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_9).state; float red = (current - 0.0) / ${max_current_range29}; float green = (${max_current_range29} - current) / ${max_current_range29}; float blue = 0.0;
auto call = id(M30_LED29).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 309 register_type: holding name: m30_3_current_10 id: m30_3_current_10 unit_of_measurement: A accuracy_decimals: 3 value_type: U_WORD filters: - multiply: 0.00098 on_value: - then: - lambda: |- float current = id(m30_3_current_10).state; float red = (current - 0.0) / ${max_current_range30}; float green = (${max_current_range30} - current) / ${max_current_range30}; float blue = 0.0;
auto call = id(M30_LED30).turn_on(); call.set_brightness(0.6); call.set_rgb(red, green, blue); call.set_color_mode(ColorMode::RGB); call.perform(); - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 310 register_type: holding name: m30_3_voltage id: m30_3_voltage unit_of_measurement: V accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 311 register_type: holding name: m30_3_watt_1 id: m30_3_watt_1 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 312 register_type: holding name: m30_3_watt_2 id: m30_3_watt_2 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 313 register_type: holding name: m30_3_watt_3 id: m30_3_watt_3 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 314 register_type: holding name: m30_3_watt_4 id: m30_3_watt_4 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 315 register_type: holding name: m30_3_watt_5 id: m30_3_watt_5 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 316 register_type: holding name: m30_3_watt_6 id: m30_3_watt_6 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 317 register_type: holding name: m30_3_watt_7 id: m30_3_watt_7 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 318 register_type: holding name: m30_3_watt_8 id: m30_3_watt_8 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 319 register_type: holding name: m30_3_watt_9 id: m30_3_watt_9 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 320 register_type: holding name: m30_3_watt_10 id: m30_3_watt_10 unit_of_measurement: W accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 321 register_type: holding name: m30_3_energy_1 id: m30_3_energy_1 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 322 register_type: holding name: m30_3_energy_2 id: m30_3_energy_2 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 323 register_type: holding name: m30_3_energy_3 id: m30_3_energy_3 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 324 register_type: holding name: m30_3_energy_4 id: m30_3_energy_4 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 325 register_type: holding name: m30_3_energy_5 id: m30_3_energy_5 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 326 register_type: holding name: m30_3_energy_6 id: m30_3_energy_6 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 327 register_type: holding name: m30_3_energy_7 id: m30_3_energy_7 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 328 register_type: holding name: m30_3_energy_8 id: m30_3_energy_8 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 329 register_type: holding name: m30_3_energy_9 id: m30_3_energy_9 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller state_class: total_increasing device_class: energy modbus_controller_id: modbus_hub_m30 address: 330 register_type: holding name: m30_3_energy_10 id: m30_3_energy_10 unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 331 register_type: holding name: m30_3_energy_sum id: m30_3_energy_sum unit_of_measurement: kWh accuracy_decimals: 1 value_type: U_WORD - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 332 register_type: holding name: m30_3_period id: m30_3_period unit_of_measurement: Hz accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.01 - platform: modbus_controller modbus_controller_id: modbus_hub_m30 address: 333 register_type: holding name: m30_3_tps_1 id: m30_3_tps_1 unit_of_measurement: °C accuracy_decimals: 1 value_type: U_WORD filters: - multiply: 0.1 # - platform: modbus_controller # modbus_controller_id: modbus_hub_m30 # address: 334 # register_type: holding # name: m30_3_tps_2 # id: m30_3_tps_2 # unit_of_measurement: °C # accuracy_decimals: 1 # value_type: U_WORD
light: - platform: partition name: "M30_LED1" id: M30_LED1 segments: - id: light1 from: 14 to: 14
- platform: partition name: "M30_LED2" id: M30_LED2 segments: - id: light1 from: 13 to: 13
- platform: partition name: "M30_LED3" id: M30_LED3 segments: - id: light1 from: 12 to: 12
- platform: partition name: "M30_LED4" id: M30_LED4 segments: - id: light1 from: 11 to: 11
- platform: partition name: "M30_LED5" id: M30_LED5 segments: - id: light1 from: 10 to: 10
- platform: partition name: "M30_LED6" id: M30_LED6 segments: - id: light1 from: 9 to: 9
- platform: partition name: "M30_LED7" id: M30_LED7 segments: - id: light1 from: 8 to: 8
- platform: partition name: "M30_LED8" id: M30_LED8 segments: - id: light1 from: 7 to: 7
- platform: partition name: "M30_LED9" id: M30_LED9 segments: - id: light1 from: 6 to: 6
- platform: partition name: "M30_LED10" id: M30_LED10 segments: - id: light1 from: 5 to: 5
- platform: partition name: "M30_LED11" id: M30_LED11 segments: - id: light1 from: 4 to: 4
- platform: partition name: "M30_LED12" id: M30_LED12 segments: - id: light1 from: 3 to: 3
- platform: partition name: "M30_LED13" id: M30_LED13 segments: - id: light1 from: 2 to: 2
- platform: partition name: "M30_LED14" id: M30_LED14 segments: - id: light1 from: 1 to: 1
- platform: partition name: "M30_LED15" id: M30_LED15 segments: - id: light1 from: 0 to: 0
- platform: partition name: "M30_LED16" id: M30_LED16 segments: - id: light1 from: 15 to: 15
- platform: partition name: "M30_LED17" id: M30_LED17 segments: - id: light1 from: 16 to: 16
- platform: partition name: "M30_LED18" id: M30_LED18 segments: - id: light1 from: 17 to: 17
- platform: partition name: "M30_LED19" id: M30_LED19 segments: - id: light1 from: 18 to: 18
- platform: partition name: "M30_LED20" id: M30_LED20 segments: - id: light1 from: 19 to: 19
- platform: partition name: "M30_LED21" id: M30_LED21 segments: - id: light1 from: 20 to: 20
- platform: partition name: "M30_LED22" id: M30_LED22 segments: - id: light1 from: 21 to: 21
- platform: partition name: "M30_LED23" id: M30_LED23 segments: - id: light1 from: 22 to: 22
- platform: partition name: "M30_LED24" id: M30_LED24 segments: - id: light1 from: 23 to: 23
- platform: partition name: "M30_LED25" id: M30_LED25 segments: - id: light1 from: 24 to: 24
- platform: partition name: "M30_LED26" id: M30_LED26 segments: - id: light1 from: 25 to: 25
- platform: partition name: "M30_LED27" id: M30_LED27 segments: - id: light1 from: 26 to: 26
- platform: partition name: "M30_LED28" id: M30_LED28 segments: - id: light1 from: 27 to: 27
- platform: partition name: "M30_LED29" id: M30_LED29 segments: - id: light1 from: 28 to: 28
- platform: partition name: "M30_LED30" id: M30_LED30 segments: - id: light1 from: 29 to: 29
# Example for light segment source - platform: esp32_rmt_led_strip id: light1 rgb_order: GRB pin: GPIO12 num_leds: 30 rmt_channel: 0 chipset: ws2812
