Holman 4x34mm Spotlight

Holman 4x34mm Spotlight

Device Type: light
Electrical Standard: au
Board: bk72xx

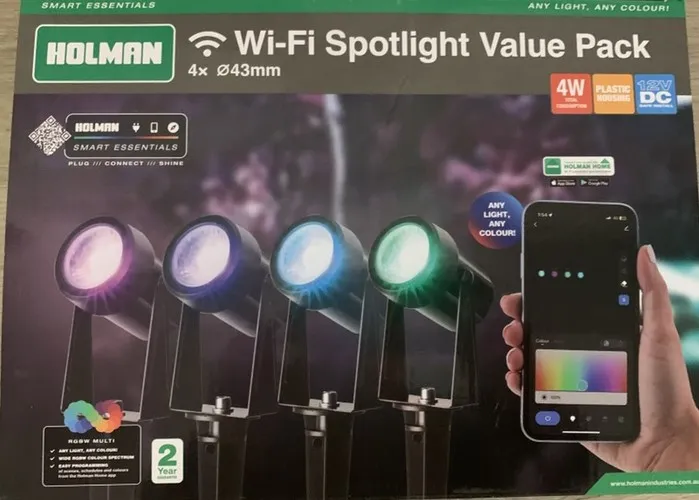

Holman 4x34mm Wifi Spotlight Value Pack

Sold by Bunnings Warehouse this is a AU/NZ standard wall Low voltage spotlight based on the Beken BK7231N module. Now that ESPHome natively supports BK72XX microcontrollers, you can also put ESPHome directly onto the device.

The unit uses the Tuya CBU Wifi Module.

alt text

Disassembly

You can flash directly to the outlet with USB to serial adapter.

GPIO pinout

PINGPIO #Component
2P16LED SPOTLIGHT
3P20Button 1
13GNDGND
143V33V3
15TXTX
16RXRX
18CENFOR FLASH

Basic Configuration

substitutions:
  device_name: holman_led_spotlight
  friendly_name: "Holman LED Spotlight"


#################################


esphome:
  name: ${devicename}


bk72xx:
  board: generic-bk7231n-qfn32-tuya


#################################


## ----------------- ##
##      Buttons      ##
## ----------------- ##
binary_sensor:
  - platform: gpio
    pin:
      number: P20
      inverted: true
      mode:
        input: true
        pullup: true
    name: "LED_button"


## ------------ ##
##    Lights    ##
## ------------ ##
light:
  - platform: beken_spi_led_strip
    rgb_order: RGB
    pin: P16
    num_leds: 5
    id: rgb_led
    chipset: ws2812
    is_wrgb: true
    name:  "Light"
