Geekbes YM-WS-1 Plug

Geekbes YM-WS-1 Plug

Device Type: plug
Electrical Standard: us
Board: esp8266

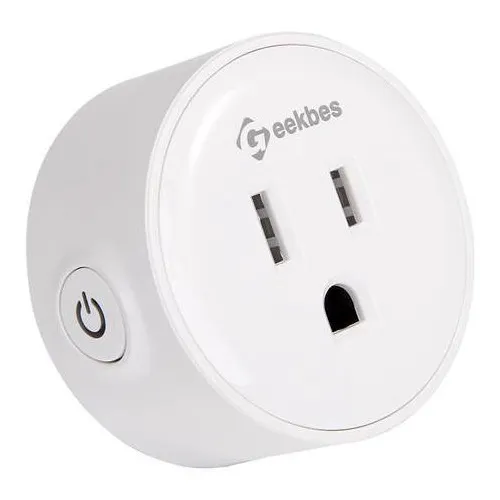

alt text

The GPIO pinout was learned from Blakadder Tasmota documentation and adapted through trial and error.

GPIO Pinout

PinFunction
GPIO12LedLink
GPIO13Button
GPIO15Relay

Basic Configuration

substitutions:
  name: geekbes-ym-ws-1
  friendly_name: Geekbes YM-WS-1 Plug


esphome:
  name: ${name}
  friendly_name: ${friendly_name}


esp8266:
  board: esp01_1m


# Enable logging
logger:


# Enable Home Assistant API
api:


ota:
- platform: esphome


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:


captive_portal:


binary_sensor:
  # Connected to HA
  - platform: status
    name: "Status"


  # the on off button
  - platform: gpio
    pin: GPIO13
    filters:
      - invert:
      - delayed_on: 100ms
      - delayed_off: 100ms
      - delayed_on_off: 100ms
    name: "${friendly_name} Button"
    on_press:
      - switch.toggle: relay


switch:
  # the relay that controls the output power
  - platform: gpio
    pin: GPIO15
    name: "${friendly_name}"
    id: relay
    on_turn_on:
      - switch.turn_on: blue_led
    on_turn_off:
      - switch.turn_off: blue_led


  # the indicator led in the on off button
  - platform: gpio
    pin:
      number: GPIO12
      inverted: true
    id: blue_led
