Connect SmartHome Wi-Fi Plug with USB Ports (CSH-PLGUSB)

Connect SmartHome Wi-Fi Plug with USB Ports (CSH-PLGUSB)

Device Type: plug
Electrical Standard: au
Board: bk72xx

General Notes

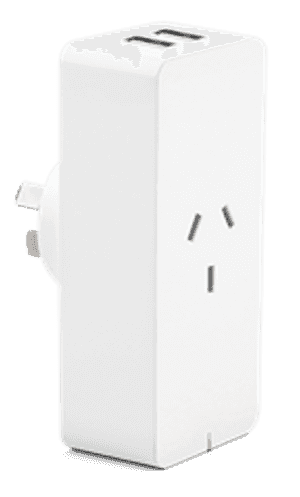

Connect SmartHome Wi-Fi Plug with USB Ports

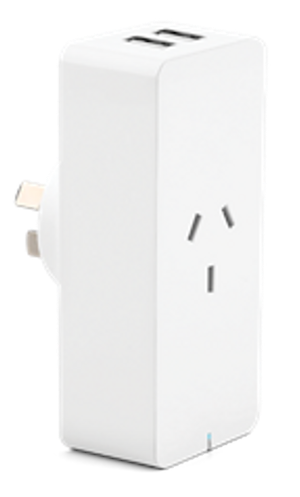

Connect SmartHome Wi-Fi Plug with USB Ports

This contains a Tuya Beken Chip WB2S which can be flashed with ESPHome and a USB to UART converter by soldering to the chip's RX, TX, VCC and GND pins.

It might be possible to flash (especially older units) OTA using tuya-convert. If you attempt to flash a current unit OTA, you should update this page specify if it's still possible or not.

Basic Configuration

esphome:
name: smart-plug
name_add_mac_suffix: true
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
ap:
ssid: 'downlight'
password: 'ap_password'
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret encryption_key
ota:
password: 'ota_password'
# Platform
bk72xx:
board: wb2s
# Button
binary_sensor:
- platform: gpio
pin:
number: P10
inverted: true
name: 'Push Button'
on_press:
then:
- homeassistant.event:
event: esphome.button_pressed
# Switch
switch:
- platform: gpio
pin: P26
name: 'Switch'
