Athom 2CH Relay Board (R2-ESP)

Device Type: relay

Electrical Standard: global

Board: esp32

Difficulty: Comes with ESPhome, 1/5

Project URL: https://github.com/athom-tech/esp32-configs/blob/main/athom-2ch-relay-board.yaml

Maker: https://www.athom.tech/ Product page: https://www.athom.tech/blank-1/2ch-inching-self-lock-relay-for-esphome

Also on Aliexpress, available pre-flashed with ESPHome or Tasmota.

Description

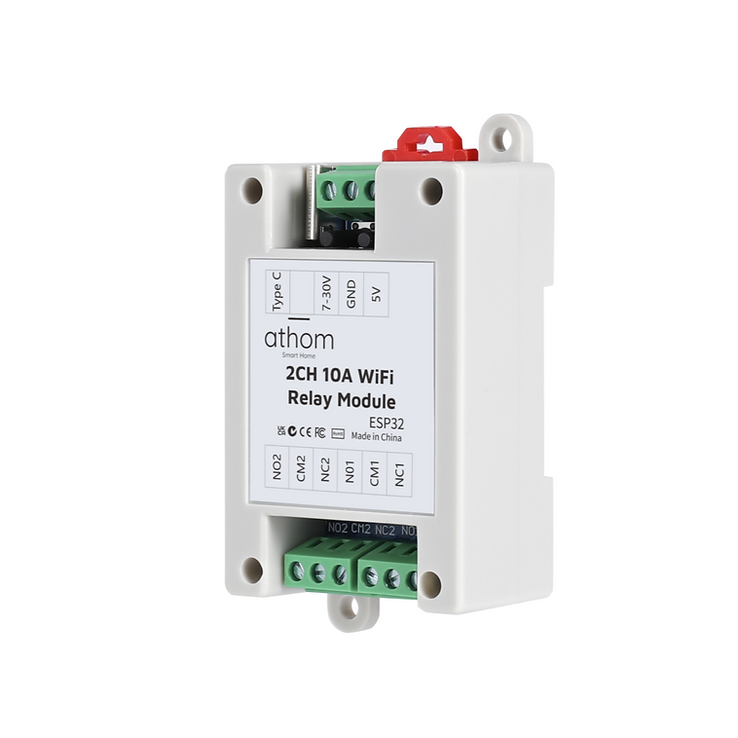

A 2-relay board with an ESP32-WROOM-32E.

Built-in RF433 receiving module

Onboard buttons to control each relay

Built-in CH340 serial port chip, can realize arbitrary programming

Each relay has COM/NO/NC terminals and is rated for a 10A max load.

The board can be powered either via 7-30 VDC or 5 VDC (separate terminals and Type-C).

GPIO Pinout

Basic Configuration

The Latest configuration can be found on Athom's GitHub repo.
