Arlec Smart 2m/5m LED Strip Light

Arlec Smart 2m/5m LED Strip Light

Device Type: light
Electrical Standard: au
Board: esp8266

General Notes

This configuration is for the Arlec Smart 2m LED Strip Light and Arlec Smart 5m LED Strip Light which comes as a colour changing LED strip with controller and transformer.

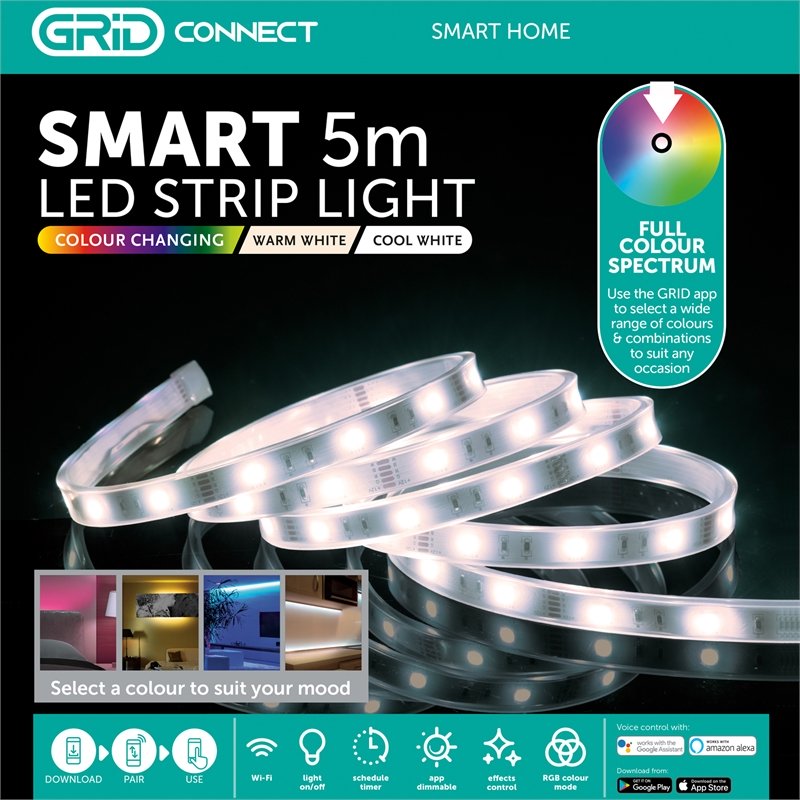

Arlec Smart 5m LED Strip Light

GPIO Pinout

PinFunction
GPIO4Red Channel
GPIO12Green Channel
GPIO14Blue Channel
GPIO5White Channel

Basic Configuration

esphome:
  name: led_strip
  platform: ESP8266
  board: esp01_1m


wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password
  ap:


logger:


web_server:


api:
  encryption:
    key: !secret api_encryption_key


ota:
  password: "ota_password"


light:
  - platform: rgbw
    name: "LED Strip"
    red: output_red
    green: output_green
    blue: output_blue
    white: output_white
    restore_mode: RESTORE_DEFAULT_OFF


output:
  - platform: esp8266_pwm
    id: output_red
    pin: GPIO4
  - platform: esp8266_pwm
    id: output_green
    pin: GPIO12
  - platform: esp8266_pwm
    id: output_blue
    pin: GPIO14
  - platform: esp8266_pwm
    id: output_white
    pin: GPIO5
