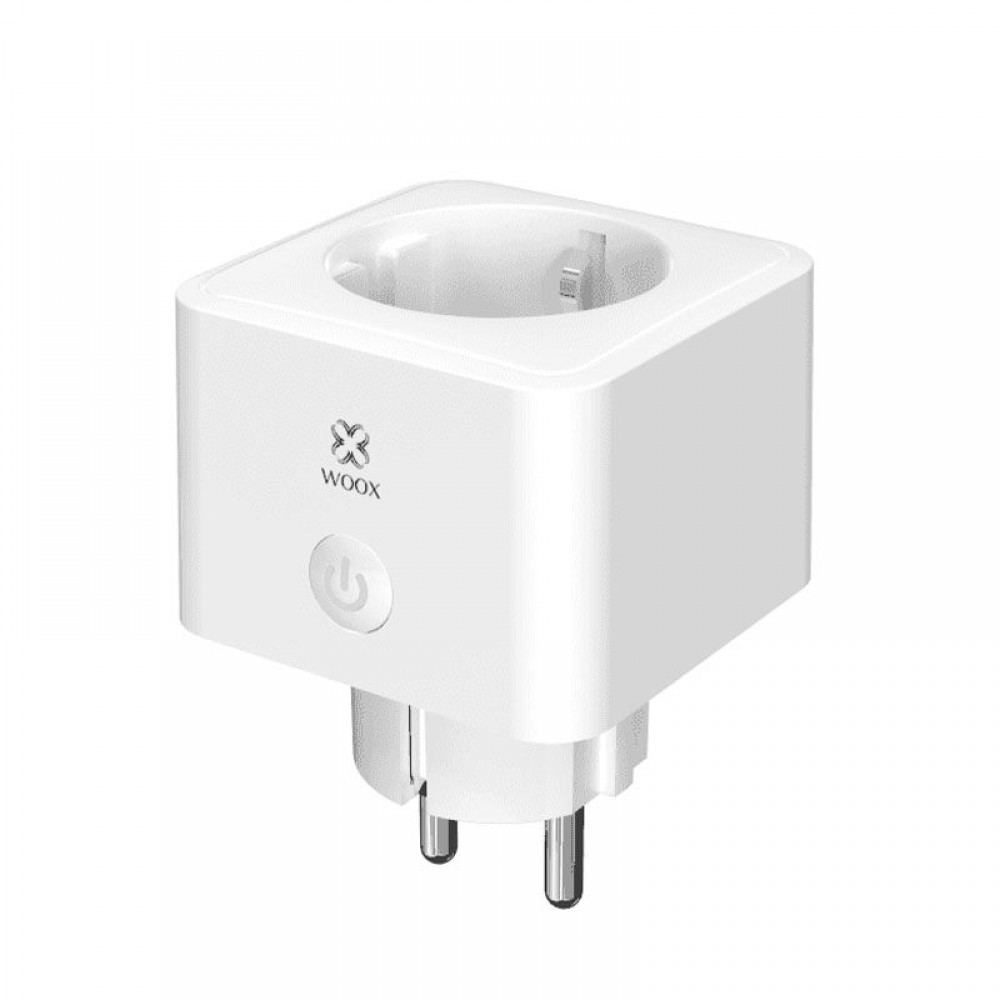

Woox R6087 Plug 16/20A
Device Type:
Electrical Standard:
Board:
Difficulty:Soldering required (4/5)
Notes
GPIO Pinout
| Pin | Function |
|---|---|
| P6 | Button |
| P24 | Relay |
| P8 | LED, inverted |
| P7 | Status LED |
Board Configuration
bk72xx: board: wb2s framework: version: latest options: LT_UART_DEFAULT_PORT: 1
