TomZN (Hiking) TOB8-63WiFi

Device Type:misc
Electrical Standard:global
Board:esp8266
Difficulty:Disassembly required (3/5)

Notes

  • On/Off switch
  • Voltage/Current/Power/Energy Metering
  • Working Voltage: AC100-280V
  • Mechanical Life: Over 100000 Times
  • Working Temperature: -25℃-70℃
  • Red LED’s wired to Relay and display it status
  • Energy measurement starts from 0 on every power-up
  • Not provide Power Apparent & Factor data

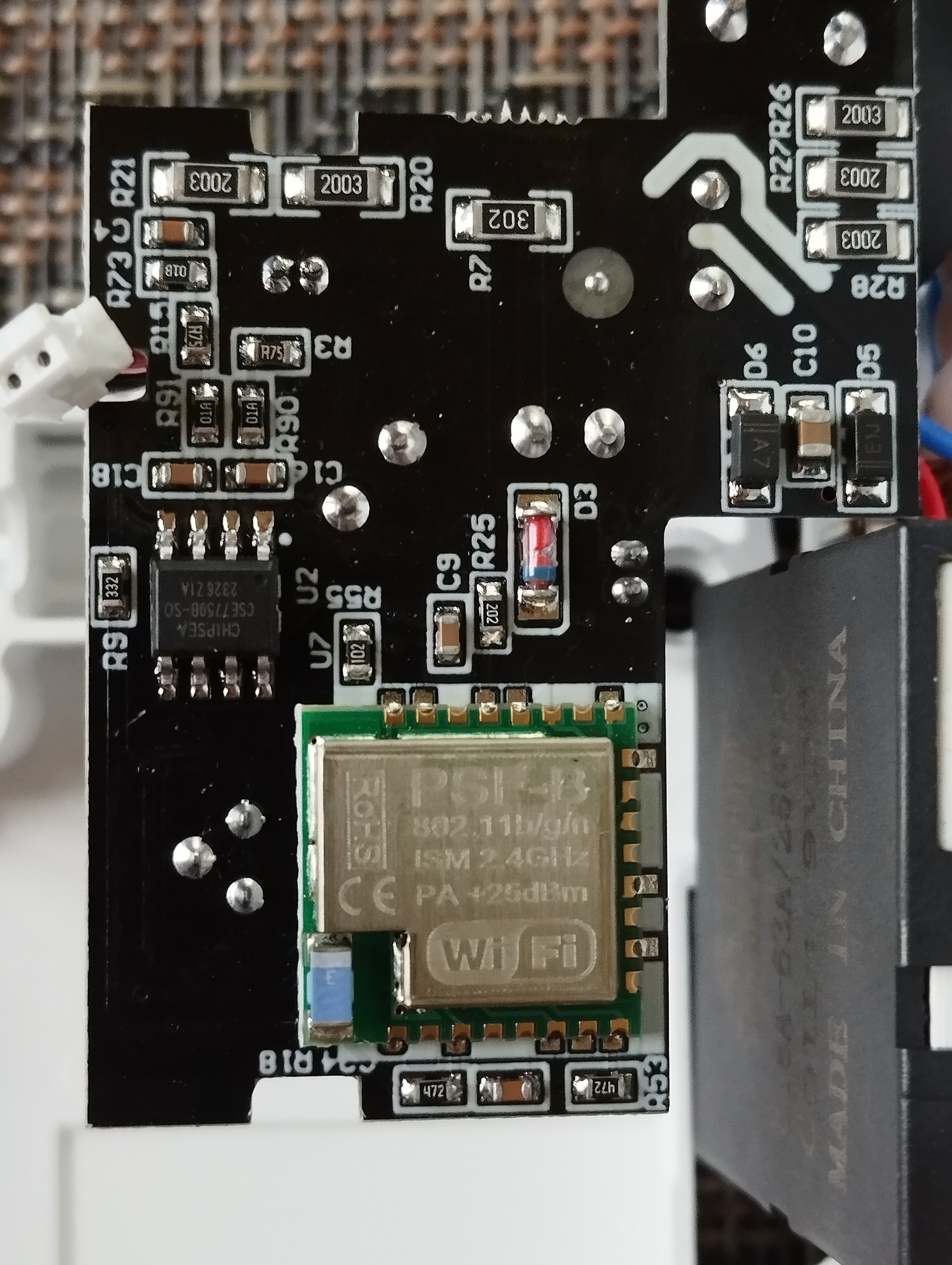

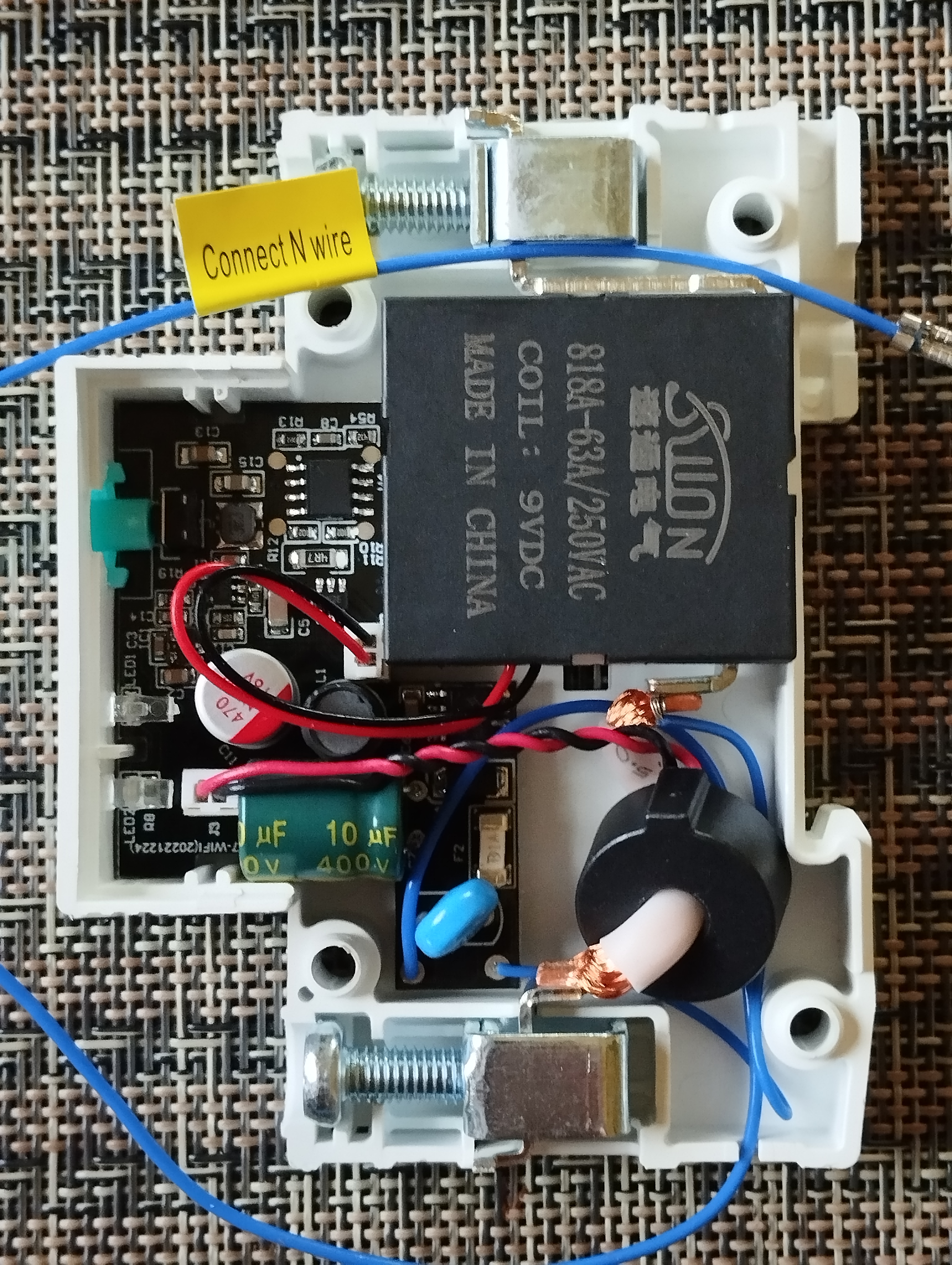

Front View Inside View Module View

GPIO Pinout

PinFunctionNotes
GPIO00Button
GPIO12Relay
GPIO13Status LED - Blueinverted
GPIO03CSE7759B meter
GPIO06soldered, unknown
GPIO07soldered, unknown

Required for CSE7759B meter

esp8266:
  board: esp8285


logger:
  baud_rate: 0


uart:
  rx_pin: RX
  baud_rate: 4800


sensor:
  - platform: cse7766
